Duo SR1 (A1) Rated Security Fencing

Name: Duo SR1 (A1) Rated Security Fencing
Brand: Zaun Limited
SKU: nqQR3FYwCJsJbX9Nt8u8i

Verified by manufacturer 4 months ago

Zaun Limited

Third party certifications:

BRE Certificate
Certificate type

Security Rated Double Wire Rigid Mesh Fencing to LPS 1175 SR1 (A1) and Secured by Design (SBD)

Jump to:

+44 (0)1902 796699 Website

Application

Civic and public sector.

Health and emergency services.

High security.

Industrial.

Residential and commercial.

Schools and education.

Transport and infrastructure.

Utilities.

Description

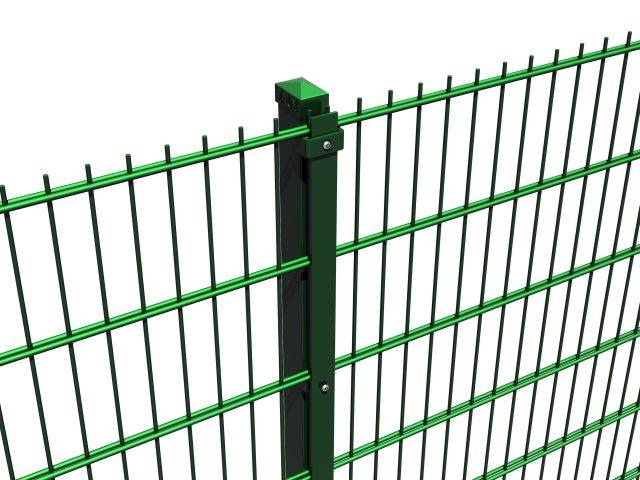

Tested and Certified to offer a guaranteed minimum delay of at least 60 seconds, the Duo8 SR1 double wire system is your first line of protection where Secured by Design accreditation is required. It is manufactured from dual horizontal 8 mm wires sandwiching a single 6 mm vertical wire, producing a 50 x 200 mm mesh pattern that is strong and vandal resistant.

Fence panels are available in 2.0–2.4 m heights.

Coupled with Zaun’s tamper-resistant fasteners, the result is a rigid perimeter fence that offers a high degree of vandal resistance and an extremely high level of through visibility. This fencing system offers the same product benefits as the standard Duo8, but with added security and tamper-resistant clamp bars and fixings.

Features and benefits:

LPCB LPS 1175 SR1 (A1) rated.
Security Rated at SR1 by BRE as featured in the Red Book.
Secured by Design approved.
Designed with twin 8 mm horizontal wires.
Open mesh pattern provides high visibility to monitor sites without restriction.
Robust for a high level of vandal resistance.
Supplied with standard or minimal projections at the top of the panel.
Available either as an in-ground or base-plated system.
For low-level fences a safety capping is available.

General information

Finish	Galvanized Powder-coated
Material	Metal
Width	2510 mm
Height	2430 mm 2030 mm

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/125 Open mesh steel panel general purpose fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Specification data - Metal mesh panel fencing systems

Standard	To BS1722, ISO 12944.
Posts	60 x 60 mm rectangular hollow section (RHS) posts. Guidance for specification option: Spaced at a maximum of 3025 mm centres.
Panels	Duo8 SR1 mesh. Guidance for specification option: Comprising 50 x 200 mm mesh with single 6 mm wires, vertical wires are at 50 mm centres, dual 8 mm horizontal wires at 200 mm centres.
System accessories	Not required. Pedestrian gates. Guidance for specification option: Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements. Vehicular gates. Guidance for specification option: Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.

Height	2030 mm. 2430 mm. 3030 mm.
Applied finishes	Galvanized and polyester powder coated.
Width	2510 mm. Manufacturer guidance Optional sizes available on request.
Fixing	Bolt down. In ground. Wall.
Gates	50 x 50 mm RHS frame, Zaun Duo8 mesh welded inside the frame, with slide latch, rubber bump stop and two gate posts. Guidance for specification option: Vehicular access also supplied with drop bolts.
Projection	Minimal. Standard.
Panel fixings	Panels fixed to posts with full height 40 x 5 mm clamp bar with stainless steel fixings at 400 mm centres. Guidance for specification option: The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar, with an enhanced over clip on the upper most and lower most fixings.
SecurityRating	SR1. Guidance for specification option: Opportunist attack by bodily force using minimal tools (screwdriver, knife, pliers).
Mesh size	200 x 50 mm.
Fixings	Anti tamper security fixings.
