Verified by manufacturer 5 months ago
Anti-climb fence system.
DualGuard combines anti-climb mesh, strength and style to provide a perimeter fencing solution that is not only a deterrent but provides a greater level of security to the standard Duo8 range.
Derived from Zaun’s Duo8 system, it combines twin 8 mm horizontal wires with a high frequency of vertical wires to make an extremely robust 25 x 200 mm mesh pattern. The close mesh makes cutting or climbing the panel difficult, yet the panel remains stylish and unobtrusive, enhancing the area in which it is situated. As a low level fence DualGuard acts as an attractive segregating barrier capable of withstanding heavy impacts.
The system uses an anti-climb, tight mesh pattern and a full length clamp bar to cover the panel ends. This ensures that there are no exposed panel edges on which people might snag themselves and also makes levering the panels away from the post very difficult.
Features and benefits:
Finish | Galvanized Powder-coated |
Material | Metal |
Width | 2500 mm |
Height | 1230 mm 1430 mm 1830 mm 2030 mm 2430 mm |
Uniclass | |
CAWS | Q40/125 Open mesh steel panel general purpose fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Standard | To BS1722, ISO 12944. |
Posts | 80 x 40 mm rectangular hollow section (RHS) posts. |
Panels | Metal mesh panels.Guidance for specification option: Comprising 25 x 200 mm mesh with dual 8 mm horizontal wires at 200 mm centres and single 6 mm vertical wires at 25 mm centres. |
System accessories | Not required.Pedestrian gates.Guidance for specification option: Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements. Vehicular gates.Guidance for specification option: Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements. |
Height | 2430 mm. Manufacturer guidanceOther heights are available upon request. |
Applied finishes | Galvanized and polyester powder coated. |
Fixing | Bolt down. In ground. Wall. Manufacturer guidanceAnti tamper security fixings. |
Gates | 50 x 50 mm RHS frame, Zaun Duo8 mesh welded inside the frame, slide latch, rubber bump stop and two gate posts. Guidance for specification option: Vehicular access also supplied with drop bolts. |

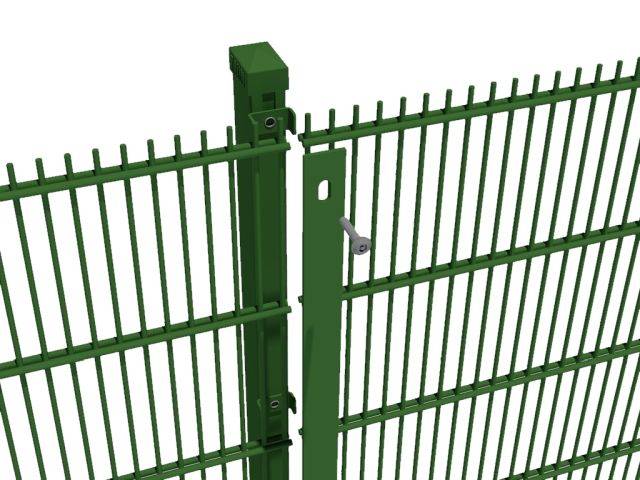

Panel fixings | Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 400 mm centres. Guidance for specification option: The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar. |
Width | 2510 mm. |
Mesh size | 200 x 25 mm. |
WireDiameter | 6 mm / 2x 8 mm. Guidance for specification option: Vertical x Horizontal. |
Fixings | Anti tamper security fixings. |
