ArmaWeave CPNI Rated Security Fencing
Verified by manufacturer 4 months ago
CPNI Rated Security Fencing
CPNI Rated Security Fencing
Security perimeter fencing systems.
Application
- Emergency services and health.
- Industrial fencing and security.
- Utilities.
- Infrastructure and transport.
- High security fencing and perimeter protection.
Description
Flagship woven mesh fencing system. This woven mesh fencing system is designed to secure sites of critical national importance. This patent pending design of high tensile steel security panels has been developed to meet the growing niche in the market for a higher security fencing systems.
The unique properties of this woven mesh system offers substantial advantages in delay times from attacks such as cutting with hand, powered and non-contact tools than what can be offered from traditional welded mesh systems.
Tested by various government departments it meets the current criteria for forcible attack.
Features and benefits:
- Tight woven mesh configuration offers no climbing aids.
- Significant enhancement offered from attack by hand and powered tools.
- Manufactured using high tensile steel.
- Double high security fixing at post.
- Aesthetically pleasing.
- Mesh options available to meet criteria.
- Works with detection systems.
- Good visibility for use with CCTV systems.
- Available either bolt down, in ground or on wall post options.
- Approved for UK Government use by Centre for the Protection of National Infrastructure (CPNI).
- Secured by Design certification.
General information
Finish | Galvanized |
Material | Steel |
Width | 2500 mm 2700 mm 3000 mm |
Height | 1800 mm 2000 mm 2400 mm 3000 mm 3300 mm |
Warranty description | 12 year |
Uniclass | |
CAWS | Q40/125 Open mesh steel panel general purpose fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Metal mesh panel fencing systems
Posts | Rolled profile 120 x 140 mm posts.Guidance for specification option: Spaced at 2535 mm centres, consult manufacturer. |
System accessories | Not required.Pedestrian gates.Guidance for specification option: Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements. Vehicular gates.Guidance for specification option: Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements. |
Height | 2000 mm. 2400 mm. 3000 mm. 3900 mm. 5200 mm. Manufacturer guidanceAdditional heights available upon request. |
Width | 2500 mm. |
Fixing | Bolt down. In ground. Wall. |

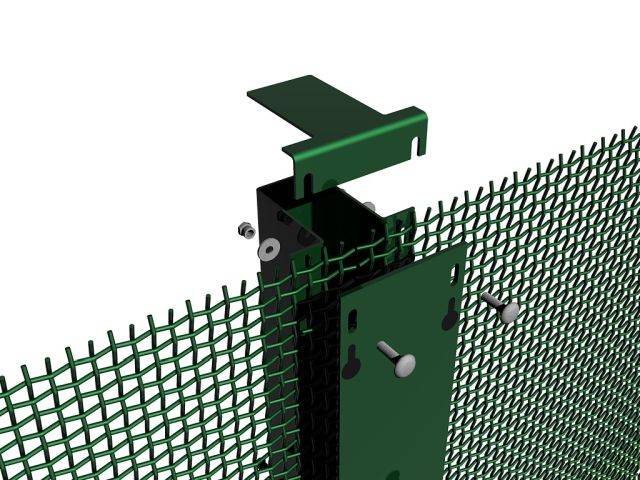

Panel fixings | Panels fixed to posts with full height 140 x 5 mm clamp bar with twin rows of bolt fixings at 165 mm centres. Guidance for specification option: The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar. |
WireDiameter | 4 x 4 mm. Guidance for specification option: Vertical x Horizontal. |
Post centres | 2535 mm. Guidance for specification option: 330 mm fixing centres. |
Fixings | Bolts, nuts, washers. |
Panel weight | 12 kg per². |
Type | OMEGA. |
Dimensions | 2000 x 2500 mm. 2400 x 2500 mm. 3000 x 2500 mm. 3900 x 2500 mm. 5200 x 2500 mm. |
Mesh size | 17 x 17 mm mesh. |
Literature
Zaun Security Brochure
