Axiom Profile Mesh Perimeter Fencing

Name: Axiom Profile Mesh Perimeter Fencing
Brand: Zaun Limited
SKU: mfFH4kKzE42whMShy4YmQh

Verified by manufacturer 5 months ago

Zaun Limited

Perimeter fencing.

Jump to:

+44 (0)1902 796699 Website

Application

Agricultural.

Civic and public sector.

Health and emergency services.

Industrial.

Residential and commercial.

Schools and education.

Description

Axiom perimeter fencing is designed as a contemporary and non-threatening perimeter fencing system. It is designed as a low cost perimeter fencing solution for a wide range of applications that are not likely to be subjected to sustained abuse, including commercial sites, schools, industrial estates and more.

Its visually appealing panel has a large open mesh pattern, which helps it blend into its surroundings and is constructed from 5 mm horizontal and vertical wires. Each panel has V-beam pressings along the length of the panel to provide lateral rigidity.

Features and benefits:

Open mesh pattern offers high visibility.
Easily blends into surroundings.
V-shaped pressings add rigidity to the fence line.
Suitable for locations not suffering from sustained abuse.
Cost effective design with 3 m centres.
Available either bolt down, in ground or on wall.

General information

Color	Green Black Other
Finish	Galvanized Powder-coated
Material	Metal
Width	3005 mm 2805 mm Manufacturer guidance For panel Heights above 2.8m please select 2805mm panel width, all other heights are at 3005 panel width
Height	1230 mm 1530 mm 1730 mm 1930 mm 2330 mm 2960 mm Show more

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/125 Open mesh steel panel general purpose fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Specification data - Metal mesh panel fencing systems

Standard	To BS1722, ISO 12944.
Posts	60 x 60 mm square hollow section (SHS). Guidance for specification option: 2.4/ 2.7/ 3.1 m long for fixing in ground 670 mm and spaced at 3025 mm centres.
Panels	50 x 200 mm mesh. Guidance for specification option: Comprising single 5 mm vertical wires at 50 mm centres and 5 mm horizontal wires at 200 mm centres, with three horizontal V-beams.
Site applied finishes	Galvanized. Powder coated.
System accessories	Not required. Pedestrian gates. Guidance for specification option: Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements. Vehicular gates. Guidance for specification option: Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements. Locinox range. Slide latch.

Height	1730 mm. 1930 mm. 2330 mm. Manufacturer guidance Other heights are available upon request.
Applied finishes	Galvanized and polyester powder coated.
Fixing	Bolt down. In ground. Wall. Manufacturer guidance Anti tamper security fixings.
Gates	Zaun Duo8 mesh cladding, rubber bump stop and two gate posts.

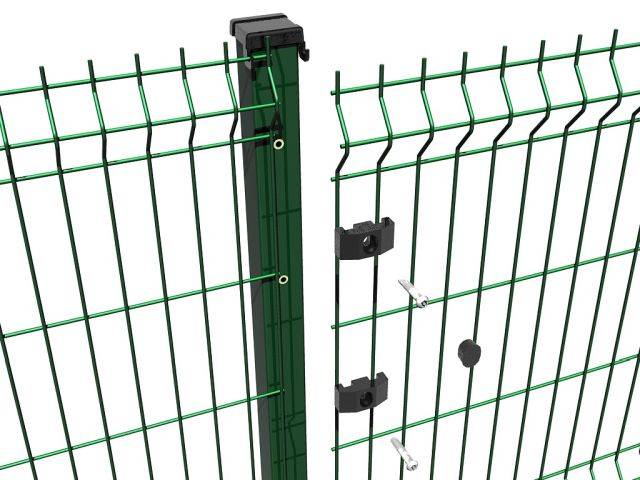

Panel fixings	Panels fixed to posts with Axiom clips nominally at 400 mm centres.
WireDiameter	5 mm / 5 mm. Guidance for specification option: Vertical x Horizontal.
Mesh size	200 x 50 mm.
Width	3005 mm.
Fixing type	Clips.
