Boundary fence.
Gemini Shallow Concave features a shallow curved fence topping and is particularly suitable for areas that are either aesthetically sensitive or are on show to the public or customers. Based on the twin wire Duo system, it uses twin horizontal wires to sandwich the vertical wires creating a strong twin wire mesh. Anti-tamper fixings and optional ball finials combine to make this system both attractive and secure.
Gemini Shallow Concave suits housing projects, schools and prestige projects where the fence needs to be a feature as well as a boundary. It can be supplied in heights of up to 6 m, which is measured at post height, so the panels may exceed that height at the centre of the panel.
Features and benefits:
Finish | Galvanized Powder coated |
Material | Metal |
Size | 2430 x 2510 mm 2030 x 2510 mm 1830 x 2510 mm 1230 x 2510 mm |
Uniclass | |
CAWS | Q40/125 Open mesh steel panel general purpose fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Standard | To BS1722, ISO 12944. |
Posts | 80 x 40 mm rectangular hollow section (RHS) posts.Guidance for specification option: Sizes dependent on height, spaced at 2525 mm centres. |
Panels | Duo6 mesh.Guidance for specification option: Comprising 200 x 50 mm mesh with single 6 mm wires, vertical wires are at 50 mm centres, dual horizontal wires at 200 mm centres. |
System accessories | Not required.Pedestrian gates.Guidance for specification option: Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements. Vehicular gates.Guidance for specification option: Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements. Ball finials. |
Height | 1230 mm. 1830 mm. 2030 mm. 2430 mm. Manufacturer guidanceOther heights are available upon request. |
Applied finishes | Galvanized and polyester powder coated. |
Fixing | Bolt down. In ground. Wall. Manufacturer guidanceAnti tamper security fixings. |
Gates | 50 x 50 mm RHS frame, Zaun Duo8 mesh welded inside the frame, slide latch, rubber bump stop and two gate posts. Guidance for specification option: Vehicular access also supplied with drop bolts. |

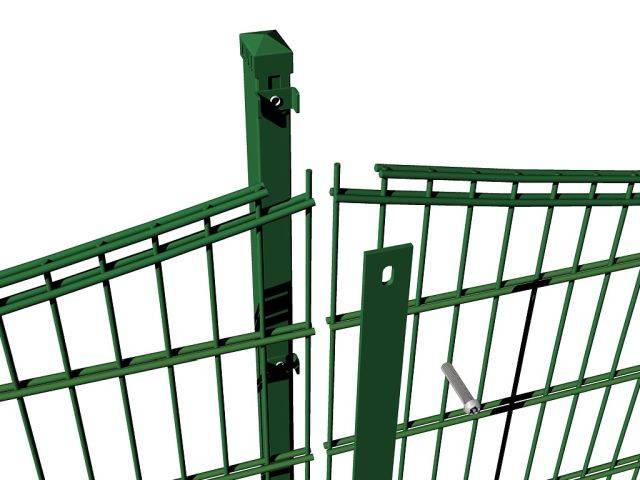

Panel fixings | Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 400 mm centres. Guidance for specification option: The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar. |
WireDiameter | 6 mm / 2 x 8 mm. Guidance for specification option: Vertical x Horizontal. |
Width | 2510 mm. |
