Duo8 Perimeter Twin Wire Mesh Fencing

Name: Duo8 Perimeter Twin Wire Mesh Fencing
Brand: Zaun Limited
SKU: iRbwWw2Rs4mvpbpvba1KwF

Verified by manufacturer 5 months ago

Duo8 Clamp

Zaun Limited

Robust fence system.

Jump to:

+44 (0)1902 796699 Website

Application

Civic and public sector.

Health and emergency services.

High security.

Industrial.

Residential and commercial.

Schools and education.

Transport and infrastructure.

Utilities.

Description

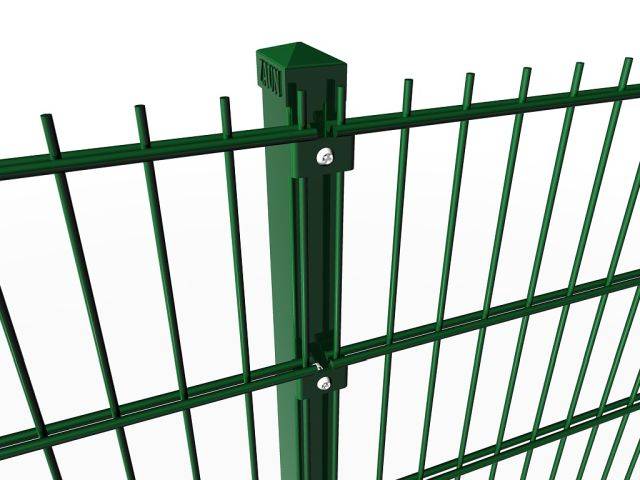

Zaun’s Duo8 ZaunFix twin wire perimeter fencing is the strongest in the Duo range, combining a perfectly engineered robust design with a low visual impact that will blend into any situation. It is manufactured from dual horizontal 8 mm wires sandwiching a single 6 mm vertical wire, producing a 50 x 200 mm mesh pattern that is not only strong and vandal resistant but also offers the best value. Each panel is fixed with either a full length clamp bar or bracket system.

Features and benefits:

Secured by Design approved.
Designed with twin 8 mm horizontal wires.
Open mesh pattern provides high visibility to monitor sites without restriction.
Strong and robust for a high level of vandal resistance.
Supplied with standard or minimal projections at the top of the panel.
Available either bolt down, in ground or on wall.
For low level fences a safety capping is available.

General information

Finish	Galvanized Powder-coated
Material	Metal
Width	2510 mm
Height	1230 mm 1830 mm 2030 mm 2430 mm 3030 mm

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Specification data - Metal mesh panel fencing systems

Standard	To BS1722, ISO 12944.
Posts	60 x 60 mm rectangular hollow section (RHS) posts. Guidance for specification option: Sizes dependent on height, spaced at 2525 mm centres.
Panels	Duo8 mesh. Guidance for specification option: Comprising 50 x 200 mm mesh with dual 8 mm horizontal wires at 200 mm centres and single 6 mm vertical wires at 50 mm centres.
System accessories	Not required. Pedestrian gates. Guidance for specification option: Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements. Vehicular gates. Guidance for specification option: Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements. Safety capping.

Height	1230 mm. 1830 mm. 2030 mm 2430 mm. Manufacturer guidance Other heights are available upon request.
Applied finishes	Galvanized and polyester powder coated.
Fixing	Bolt down. In ground. Wall.
Gates	50 x 50 mm RHS, Zaun Duo8 mesh welded inside the frame, slide latch, rubber bump stop and two gate posts. Guidance for specification option: Vehicular access also supplied with drop bolts.
SecurityRating	Not required. SR1. Guidance for specification option: Opportunist attack by bodily force using minimal tools (screwdriver, knife, pliers). Consult manufacturer for details.
Projection	Minimal. Standard.
Panel fixings	Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 400 mm centres. Guidance for specification option: The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar.
Width	2510 mm. Manufacturer guidance Optional sizes available on request.
Mesh size	200 x 50 mm.
WireDiameter	6 mm / 2 x 8 mm. Guidance for specification option: Vertical x Horizontal.
Fixing method	Clips.
Post centres	2525 mm.
Fixings	Anti tamper security fixings.
