DucoDoor Wall Single - Pivot Door
Verified by manufacturer 2 months ago
Pivot door that integrates seamlessly and invisibly into a full louvre wall.
Application
For use in louvre wall systems without specific requirements.
Description

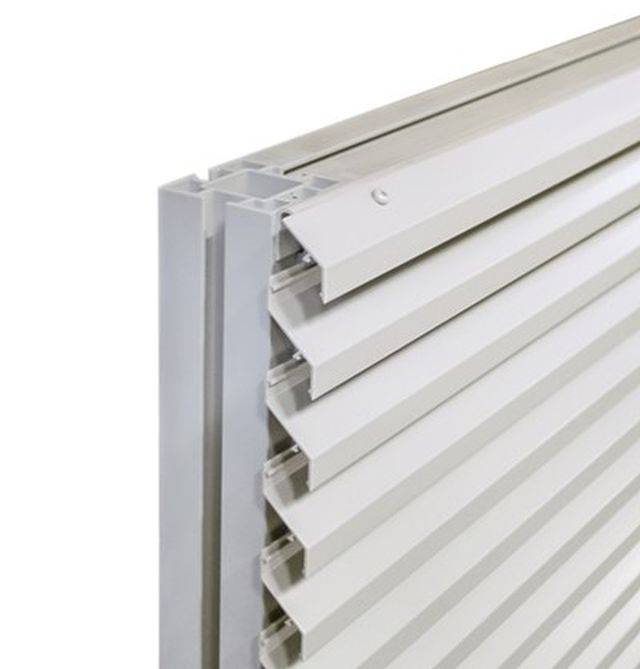

A louvre door with the same blades and profiles as the louvre wall. DucoDoor Wall and the wall thus form a perfect unity as the door is fully integrated into the wall.
Features and benefits:
- Blade type: Choice of almost complete DucoWall range, details on request.
- Door type: Single or double doors possible.
- Direction of rotation: External or internal (reinforced only possible with external doors).
- Version: Left or right.
- Pivot double door which can be constructed using the same blades and profiles as the specified louvre wall to suit individual project requirements.
- Due to a wide range of Solid, Classic and Basic blades, the DucoDoor Wall integrates seamlessly and invisibly into a full louvre wall, ensuring a sleek and uniform appearance.
General information
Color | Silver Guidance for specification option: Standard for clear anodized. Other Manufacturer guidanceRange of colours available in either anodized or RAL. |
Finish | Anodized Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder-coated Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
Material | Aluminium Guidance for specification option: Louvre blades and support profiles: Aluminium, Al Mg Si 0.5. Polyamide Guidance for specification option: Louvre holders: Polyamide, PA 6.6, reinforced with glass fibre. |
Shape | Rectangle |
Width | Manufacturer guidanceMaximum 1500 mm. |
Height | Manufacturer guidanceMaximum 3000 mm. |
Warranty description | Ten year Guidance for specification option: Duco Projects provides 10-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner.For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period. |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product range |
Specification data - Aluminium doorsets
Configuration | Single leaf, double action. |
Doorset size | Guidance for specification option: Insert requirements, maximum width x height: 1500 x 3000 mm. |
Frame | |
Material | Aluminium. |
Perimeter seals or inserts | TPE. |
Finish | |
Coating | Anodized.Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder coated.Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
Colour | Anodized.RAL.Guidance for specification option: Standard RAL colours with 70% gloss. |
Door leaf | |
Panel details | Louvred Panel. |
Material | Aluminium. |
Perimeter seals | TPE. |
Finish | |
Coating | Anodized.Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder coated.Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
External colour | Anodized.RAL.Guidance for specification option: Standard RAL colours with 70% gloss. |
Internal colour | As External. |
Door accessories | None.Door closer - pump.Door limiter - storm chain.Escutcheon on lock side.Escutcheon plate opposite escutcheon.Fixed aluminium cover front plate.Mupan insulation, 50 mm thick.Guidance for specification option: Includes full aluminium back plate. Stainless steel mesh, 2.3 x 2.3 mm.Guidance for specification option: Resistant to insects, vermin and birds. Stainless steel mesh, 6 x 6 mm.Guidance for specification option: Resistant to vermin and birds. Stainless steel mesh, 20 x 20 mm.Guidance for specification option: Resistant to birds. |
Hardware | Hinges.Guidance for specification option: Duco Pivot system above and below (hinge plate thickness: 5 mm). Reinforced hinges.Guidance for specification option: Reinforced hinges for reinforced doors (hinge plate thickness: 8 mm). |
Architraves | |
Material | Aluminium. |
Finish | Anodized.Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder coated.Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
Colour | Anodized.RAL.Guidance for specification option: Standard RAL colours with 70% gloss. |
Execution | Installing hardware. |
Handles | Lever handle inside, T-handle outside. Guidance for specification option: Standard. Special order. Guidance for specification option: Insert requirement. |
Lock | Cylinder lock. Guidance for specification option: As standard: (with 3 keys) 60 mm type 30/30. Panic lock. Guidance for specification option: For outside doors = cylinder lock 40 mm type 30/10. |
Height | 1064 mm. Guidance for specification option: Standard height, can be adjusted per step of the top curtain. Manufacturer guidanceLock height. |
Frame height | 2000 mm. Guidance for specification option: As standard. 2200 mm. Guidance for specification option: Reinforced door from >. 3000 mm. Guidance for specification option: Maximum. Manufacturer guidanceClear passage height. |
Frame width | 1250 mm. Guidance for specification option: Single leaf doors. Overall frame size, single leaf door: Clear passage width + 353 mm. 1500 mm. Guidance for specification option: Single leaf reinforced doors. Overall frame size, single leaf door: Clear passage width + 353 mm. Manufacturer guidanceClear passage width. |
Profile | 50/50. |
Support profile | 40/21. Guidance for specification option: For DucoWall Solid blades. 40/47. Guidance for specification option: For DucoWall Basic blades. Other. Guidance for specification option: All others with Duco clips. |
Door protection | Locking plate. Guidance for specification option: On the lock side of the door. Lock shield plate. Guidance for specification option: Opposite the lock plate. Manufacturer guidanceHand protection. |
Angle | 90°. Manufacturer guidanceOpening angle. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
Louvre Wall

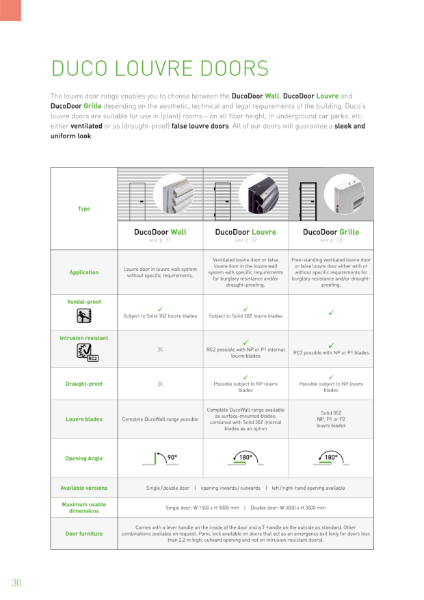

DucoDoor Aluminium Louvre Doors
