DucoDoor Wall Double - Pivot Door

Verified by manufacturer 2 months ago

Duco Ventilation & Sun Control NV

Pivot door that integrates seamlessly and invisibly into a full louvre wall.

Jump to:
BOS
+32 58 33 00 66 Website

Application

For use in louvre wall systems without specific requirements.

Description

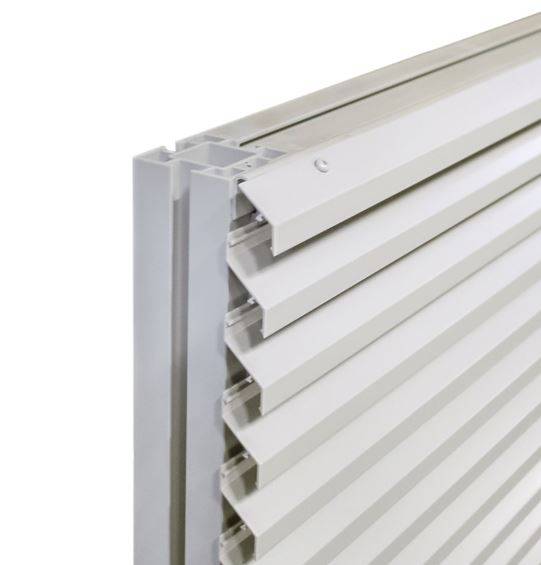

A louvre door with the same blades and profiles as the louvre wall. DucoDoor Wall and the wall thus form a perfect unity as the door is fully integrated into the wall.


Features and benefits:

  • Blade type: Choice of almost complete DucoWall range, details on request.
  • Door type: Single or double doors possible.
  • Direction of rotation: External or internal (reinforced only possible with external doors).
  • Version: Left or right.
  • Pivot double door which can be constructed using the same blades and profiles as the specified louvre wall to suit individual project requirements.
  • Due to a wide range of Solid, Classic and Basic blades, the DucoDoor Wall integrates seamlessly and invisibly into a full louvre wall, ensuring a sleek and uniform appearance.

General information

Color

Silver

Guidance for specification option:

Standard for clear anodized.

Other

Manufacturer guidance

Range of colours available in either anodized or RAL.

Finish

Anodized

Guidance for specification option:

Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing).

Powder-coated

Guidance for specification option:

Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss.

Material

Aluminium

Guidance for specification option:

Louvre blades and support profiles: Aluminium, Al Mg Si 0.5.

Polyamide

Guidance for specification option:

Louvre holders: Polyamide, PA 6.6, reinforced with glass fibre.

Shape

Rectangle

Width

-

Manufacturer guidance

Maximum 3000 mm.

Height

-

Manufacturer guidance

Maximum 3000 mm.

Warranty description

Ten year

Guidance for specification option:

Duco Projects provides ten-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner.For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period.

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Aluminium doorsets

Configuration

Double leaf, double action.

Doorset size

Guidance for specification option:

Insert requirements, maximum width x height: 3000 x 3000 mm.

Frame

-

Material

Aluminium.

Perimeter seals or inserts

TPE.

Finish

-

Coating

Anodized.

Guidance for specification option:

Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing).

Powder coated.

Guidance for specification option:

Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss.

Colour

Anodized.

RAL.

Guidance for specification option:

Standard RAL colours with 70% gloss.

Door leaf

-

Panel details

Louvred Panel.

Material

Aluminium.

Perimeter seals

TPE.

Finish

-

Coating

Anodized.

Guidance for specification option:

Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing).

Powder coated.

Guidance for specification option:

Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss.

External colour

Anodized.

RAL.

Guidance for specification option:

Standard RAL colours with 70% gloss.

Internal colour

As External.

Door accessories

None.

Door closer - pump.

Door limiter - storm chain.

Escutcheon on lock side.

Escutcheon plate opposite escutcheon.

Fixed aluminium cover front plate.

Mupan insulation, 50 mm thick.

Guidance for specification option:

Includes full aluminium back plate.

Stainless steel mesh, 2.3 x 2.3 mm.

Guidance for specification option:

Resistant to insects, vermin and birds.

Stainless steel mesh, 6 x 6 mm.

Guidance for specification option:

Resistant to vermin and birds.

Stainless steel mesh, 20 x 20 mm.

Guidance for specification option:

Resistant to birds.

Hardware

Hinges.

Guidance for specification option:

Duco Pivot system above and below (hinge plate thickness: 5 mm).

Reinforced hinges.

Guidance for specification option:

Reinforced hinges for reinforced doors (hinge plate thickness: 8 mm).

Architraves

-

Material

Aluminium.

Finish

Anodized.

Guidance for specification option:

Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing).

Powder coated.

Guidance for specification option:

Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss.

Colour

Anodized.

RAL.

Guidance for specification option:

Standard RAL colours with 70% gloss.

Execution

Installing hardware.

Handles

Lever handle inside, T-handle outside.

Guidance for specification option:

Standard.

Special order.

Guidance for specification option:

Insert requirement.

Lock

Cylinder lock.

Guidance for specification option:

As standard: (with 3 keys) 60 mm type 30/30.

Panic lock.

Guidance for specification option:

For outside doors = cylinder lock 40 mm type 30/10.

Height

1064 mm.

Guidance for specification option:

Standard height, can be adjusted per step of the top curtain.

Manufacturer guidance

Lock height.

Frame height

2000 mm.

Guidance for specification option:

As standard.

2200 mm.

Guidance for specification option:

Reinforced door from >.

3000 mm.

Guidance for specification option:

Maximum.

Manufacturer guidance

Clear passage height.

Frame width

2500 mm.

Guidance for specification option:

Double leaf doors. Overall frame dimension of twin leaf door = CPW + 416 mm.

3000 mm.

Guidance for specification option:

Double leaf reinforced doors. Overall frame dimension of twin leaf door = CPW + 416 mm.

Manufacturer guidance

Clear passage width.

Profile

50/50.

Support profile

40/21.

Guidance for specification option:

For DucoWall Solid blades.

40/47.

Guidance for specification option:

For DucoWall Basic blades.

Other.

Guidance for specification option:

All others with Duco clips.

Door protection

Locking plate.

Guidance for specification option:

On the lock side of the door.

Lock shield plate.

Guidance for specification option:

Opposite the lock plate.

Manufacturer guidance

Hand protection.

Angle

90°.

Manufacturer guidance

Opening angle.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
