DucoDoor Grille Double - Free-standing Ventilated Louvre Door
Verified by manufacturer 2 months ago
DucoGrille Solid 30Z - Punched P1.
DucoGrille Solid 30Z - Punched P1.

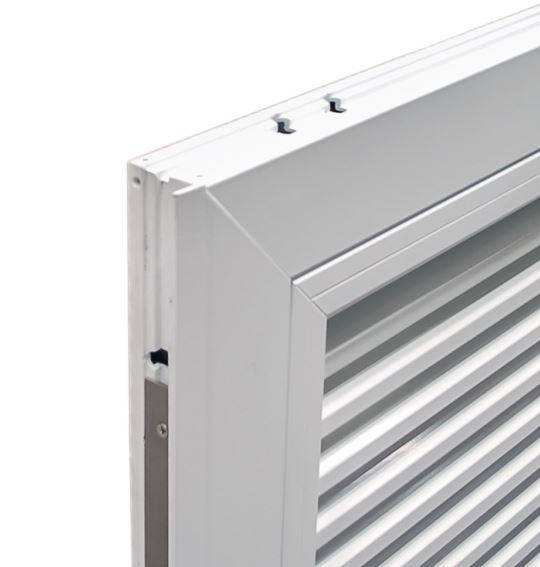

Free-standing ventilated louvre door for non-louvre walls.
Application
Free-standing ventilated louvre door with or without specific requirements for burglary resistance and/ or draught proofing.
Description
A free-standing ventilated louvre door or false louvre door, with or without specific requirements for intrusion resistance and/ or draught-proofing.
Features and benefits:
- Free standing access door suited to non-louvre walls.
- The standard integrated solid blades (type 30Z) can be punched in three different ways, (P1, P2 or NP), giving the frontage an aesthetic and expressive character.
- Intruder resistance: choice of configurations: intrusion-resistant RC2 (complies with standard EN 1627:2011 & NEN5096+C2:2011) with DucoGrille Solid 30Z NP or 30Z P1 in all cases, or non-intrusion-resistant (non-RC2).
- The DucoDoor Grille can be made completely draught-proof. The special hinges fitted to the side made it possible to create a large usable width and enabled the door to be opened 180°.
General information
Color | Manufacturer guidanceRange of colours available in either anodized or RAL. |
Finish | Anodized Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder-coated Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
Material | Aluminium Guidance for specification option: Louvre blades and support profiles: Aluminium, Al Mg Si 0.5. Rubber Guidance for specification option: Rubber gasket: Thermoplastic elastomers (TPE). |
Shape | Rectangle |
Width | Manufacturer guidanceMaximum: 3100 mm. |
Height | Manufacturer guidanceMaximum: 2900 mm. |
Warranty description | Ten year Guidance for specification option: Duco Projects provides ten-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner.For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period. |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Specification data - Aluminium doorsets
Standard | To EN 1627:2011. |
Configuration | Double leaf, single action.Guidance for specification option: Outward or inward opening. Left and right-hand. |
Doorset size | Manufacturer guidanceInsert requirements, maximum width x height: 3100 x 2900 mm. |
Performance | |
Intruder resistance | |
Minimum requirement | RC2-certified version.Non-RC2-certified version. |
Application | Both sides. |
Conformity | Certification by accredited third party certification body. |
Frame | |
Material | Aluminium. |
Perimeter seals or inserts | TPE seal. |
Finish | |
Coating | Anodized.Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder coated.Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
Colour | Anodized.RAL.Guidance for specification option: Standard RAL colours with 70% gloss. |
Installation fasteners | External dowels, internal dowels and mire angle joints. |
Door leaf | |
Panel details | P1 Punched.Guidance for specification option: Visual free area: 60% per metre. Physical free area: 34%. |
Material | Aluminium.Guidance for specification option: Leaf and Louvres. |
Perimeter seals | TPE. |
Beading | |
Type | Internal. |
Material | TPE. |
Finish | |
Coating | Anodized.Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder coated.Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
External colour | Anodized.RAL.Guidance for specification option: Standard RAL colours with 70% gloss. |
Internal colour | As External. |
Hardware | Stainless steel hinges.Guidance for specification option: Equipped with security pins in RC2 (resistance class) configuration. Two hinges per door leaf as standard; three hinges per door leaf when door leaf height >2300 mm or door leaf width >1250 mm. |
Architraves | |
Material | Aluminium. |
Finish | Anodized.Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder coated.Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
Colour | Anodized.RAL.Guidance for specification option: Standard RAL colours with 70% gloss. |
Accessories | Not required.Door closer - pump.Door limiter - storm chain.Escutcheon on lock side.Escutcheon plate opposite escutcheon.Fixed aluminium cover front plate.Mupan insulation, 50 mm thick.Guidance for specification option: Includes full aluminium back plate. Stainless steel mesh, 2.3 x 2.3 mm.Guidance for specification option: Resistant to insects, vermin and birds. Stainless steel mesh, 6 x 6 mm.Guidance for specification option: Resistant to vermin and birds. Stainless steel mesh, 20 x 20 mm.Guidance for specification option: Resistant to birds. |
Execution | Installing hardware. |
Handles | L-shaped. Round. Guidance for specification option: On the inside and outside for non-intrusion-resistant doors. Combination. Guidance for specification option: Combinations with a fixed handle for intrusion-resistant doors. |
Lock | Cylinder lock. Guidance for specification option: Width three keys. Multipoint locking. Guidance for specification option: For doors higher than 2.3 m and/or intrusion-resistant version (RC2). |
Frame height | 2050—2900 mm. Guidance for specification option: Min—max. Intrusion-resistant. 1500—2900 mm. Guidance for specification option: Min—max. Non-intrusion-resistant. Manufacturer guidanceDoor frame height. |
Frame width | 1320–3100 mm. Guidance for specification option: Min—max. Manufacturer guidanceDoor frame width. |
Height | 1064 mm. Guidance for specification option: Standard height: can be altered in steps of one louvre. Manufacturer guidanceLock height. |
Inlet | 17.01. Guidance for specification option: P1 punched. Manufacturer guidanceIntake K-factor. |
Outlet | 18.30. Guidance for specification option: P2 punched. Manufacturer guidanceOutlet K-factor. |
Water resistance | Class B. Manufacturer guidanceAt 1 m/s air velocity and 1.5 m/s air velocity. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
