DucoDoor Louvre Double - Ventilated Door
Verified by manufacturer 3 months ago

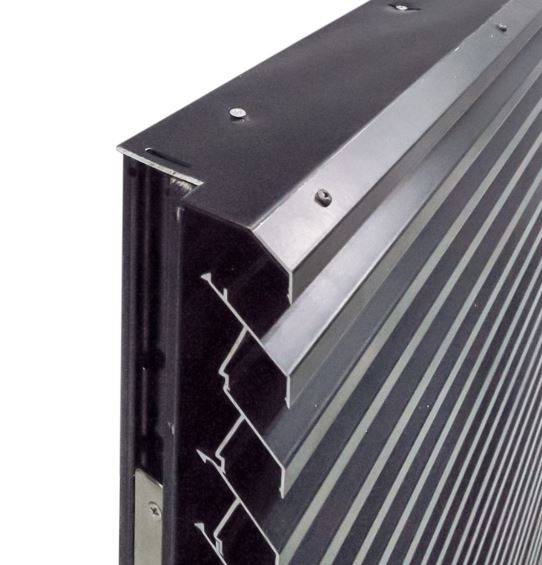

Ventilated louvre door with specific requirement for burglary resistance and/ or draught proofing.
Application
For use in louvre wall systems with specific requirements for burglary resistance and/ or draught proofing.
Description
A ventilating louvre door or false louvre door in a louvre wall system with specific requirements for burglar resistance and/ or draught freedom.
Features and benefits:
- A burglary-resistant louvre door that has been extensively tested by SKG in accordance with the European standards (EN 1627 & NEN 5096+C2) and has been certified as burglary resistance class 2.
- The DucoDoor Louvre can also be made draught-free.
- The special hinges fitted to the side made it possible to create a large usable width and enabled the door to be opened 180°.
- This type of louvre door can easily be integrated into a louvre wall as it can be made using any of the full range of Solid, Classic and Basic blades.
- Doorframe profile with mitred corner joints and rubber seal.
General information
Color | Silver Guidance for specification option: Standard for clear anodized. Other Manufacturer guidanceRange of colours available in either anodized or RAL. |
Finish | Anodized Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder-coated Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
Material | Aluminium Guidance for specification option: Louvre blades and support profiles: Aluminium, Al Mg Si 0.5. Polyamide Guidance for specification option: Louvre holders: Polyamide, PA 6.6, reinforced with glass fibre Rubber Guidance for specification option: Rubber gasket: Thermoplastic elastomers (TPE). |
Shape | Rectangle |
Width | Manufacturer guidanceMaximum 3100 mm. |
Height | Manufacturer guidanceMaximum 2900 mm. |
Warranty description | Ten year Guidance for specification option: Duco Projects provides ten-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner. For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period. |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Specification data - Aluminium doorsets
Standard | To EN 1627:2011. |
Configuration | Double leaf, double action. |
Doorset size | Guidance for specification option: Insert requirements, maximum width x height: 3100 x 2900 mm. |
Performance | |
Intruder resistance | |
Minimum requirement | RC2-certified version.Non-RC2-certified version. |
Frame | |
Material | Aluminium. |
Perimeter seals or inserts | TPE. |
Finish | |
Coating | Anodized.Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder coated.Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
Colour | Anodized.RAL.Guidance for specification option: Standard RAL colours with 70% gloss. |
Door leaf | |
Panel details | P1 Punched.P2 Punched.Non-punched. |
Material | Aluminium. |
Perimeter seals | TPE. |
Beading | |
Material | TPE. |
Finish | |
Coating | Anodized.Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder coated.Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
External colour | Anodized.RAL.Guidance for specification option: Standard RAL colours with 70% gloss. |
Internal colour | As External. |
Hardware | Stainless steel hinges.Guidance for specification option: In the RC2 version are fitted with a thief claw 3 pieces if door leaf height >2300 mm or door leaf width >1250 mm, if not 2 pieces. |
Architraves | |
Material | Aluminium. |
Finish | Anodized.Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder coated.Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
Colour | Anodized.RAL.Guidance for specification option: Standard RAL colours with 70% gloss. |
Accessories | None.Door closer - pump.Door limiter - storm chain.Escutcheon on lock side.Escutcheon plate opposite escutcheon.Fixed aluminium cover front plate.Mupan insulation, 50 mm thick.Guidance for specification option: Includes full aluminium back plate. Stainless steel mesh, 2.3 x 2.3 mm.Guidance for specification option: Resistant to insects, vermin and birds. Stainless steel mesh, 6 x 6 mm.Guidance for specification option: Resistant to vermin and birds. Stainless steel mesh, 20 x 20 mm.Guidance for specification option: Resistant to birds. |
Execution | Installing hardware. |
Handles | L-shaped. Round. Guidance for specification option: On the inside and outside for non-intrusion-resistant doors. Combination. Guidance for specification option: Combinations with a fixed handle for intrusion-resistant doors. |
Lock | Cylinder lock. Guidance for specification option: Width three keys. Multi-point lock. Guidance for specification option: For doors higher than 2.3 m and/or intrusion-resistant version (RC2). |
Height | 1064 mm. Guidance for specification option: Standard height, can be adjusted per step of the top curtain. Manufacturer guidanceLock height. |
Frame height | 2050–2900 mm. Guidance for specification option: Min—max. Intrusion-resistant. 1500–2900 mm. Guidance for specification option: Min—max. Non-intrusion-resistant. Manufacturer guidanceDoor frame height. |
Frame width | 1420–3100 mm. Guidance for specification option: Min—max. Depending on surface-mounted blade. Manufacturer guidanceDoor frame width. |
Framing system | Full frame. Partial. Guidance for specification option: Incomplete frame frame (= execution on drawing) if incomplete, the bottom frame profile is replaced by flat profile 60 x 5 mm (can be removed after assembly). |
Door protection | Locking plate. Guidance for specification option: On the lock side of the door. Lock shield plate. Guidance for specification option: Opposite the lock plate. |
Angle | 180°. Manufacturer guidanceOpening angle. |
