DS-KH8380-WTE1 IP Intercom Indoor Station - Indoor Intercom Station
Verified by manufacturer 1 day ago
Indoor intercom station with 7-inch touch screen, PoE power supply, and support for multiple indoor extensions and elevator access control.
Application
Designed for indoor use, this intercom station is suitable for communication, door control, and elevator access control in residential or commercial buildings.
Description
DS-KH8380-WTE1 is an 8 Series Indoor intercom station.
Features and benefits:
- Embedded Linux operation system with 32 MB ROM and 128 MB RAM.
- 7" capacitive touch screen with colourful TFT display, resolution of 1024 × 600.
- Supports standard IEEE802.3at PoE power supply and lock power.
- Supports up to sixteen indoor extensions linkage and elevator access control.
- Rich interfaces including alarm input, RS-485, relays, and TF card slot supporting up to 128 GB.
- Audio with built-in omnidirectional microphone and loudspeaker with noise suppression and echo cancellation.
- Network protocols include TCP/IP, SIP, RTSP with Wi-Fi 802.11b/g/n and RJ-45 10/100 Mbps self-adaptive network interface.
- Embedded Linux operating system.
- 178.4 x 126.4 mm unit.
- Plastic casing material.
- Supports surface and flush mounting.
- Mounting accessories available.
General information
Color | Other Guidance for specification option: Colour screen. Black Guidance for specification option: Main frame. |
Finish | Smooth |
Material | Plastic Glass |
Shape | Rectangle |
Length | 21.8 mm Guidance for specification option: Depth. |
Width | 178.4 mm |
Height | 126.4 mm |
Warranty description | Three year |
Uniclass | |
CAWS | W90/130 Electronic access control systems W90/365 Intercom entrance panels |
SKU Code | DS-KH8380-WTE1 |
Specification data - Intercom entrance panels
Classification data | |
Material and finish | Plastic casing. Guidance for specification option: Consult manufacturer for further details. |
Colour | Black/ silver. Guidance for specification option: Excluding screen. |
Impact protection (minimum) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Rated operational voltage (Ue) | 12 V d.c. Guidance for specification option: IEEE802.3at, Standard PoE, 1.5 A. |
Type of operation | Networked. Guidance for specification option:
|
Communication interface | Eight x alarm inputs; one x RJ-45; one x RS-485; TF (SD) card (up to 128 GB); four x lock control relays; one debugging port; four x relays. Guidance for specification option: Power supply output: maximum 12 V d.c., 0.5 A. |
Entrance panel call buttons | Touch screen. |
Integral keypad | |
Key type | Touch screen. |
LCD display | 7" capacitive touch TFT screen, 1024 x 600 resolution. |
Microphone | Integral. Guidance for specification option: One built-in omnidirectional microphone. Consult manufacturer's literature for audio compression standards. |
Speaker | Integral. Guidance for specification option: One built-in loudspeaker.
|
Remote door opening | Required. Not required. |
Mounting position | Surface. Guidance for specification option: Standard. Flush. Guidance for specification option: Requires DS-KABH8380-G kit; see Accessories. Table. Manufacturer guidanceSee Accessories for related options. |
Accessories | Inclined ceiling mounting DS-KABH8380-T. In-ceiling mounting DS-KABH8380-G. None. |
Properties | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Operating system | Linux; 32 MB ROM; 128 MB RAM; embedded high performance processor. |
Capacity | With TF card inserted: 200 captured pictures, 200 alarm records. Notice capacity: 200. Linked network camera capacity: 16. Linked indoor extensions capacity: 16. Guidance for specification option: Consult manufacturer for details if TF card is not required/ in use. |
Weight | Net: 366.7 g. |
Working temperature | -10 to +50°C. |
Humidity | 10% to 90% (non-condensing). |
Dimensions | 178.4 x 126.4 x 21.8 mm. |
Power consumption | ≤12 W. |
Sustainability data
Material | Plastic Glass |
Literature

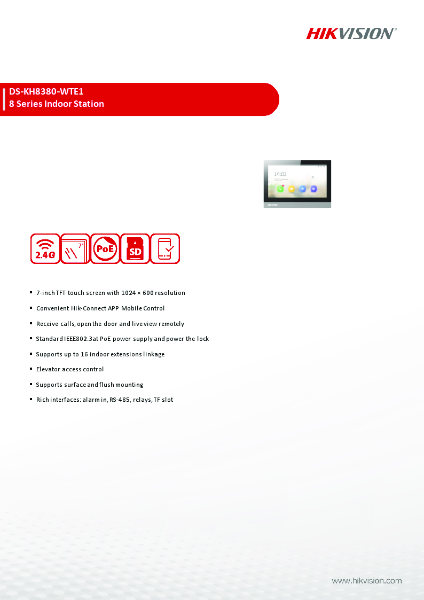

DS-KH8380-WTE1 - Product Data Sheet
