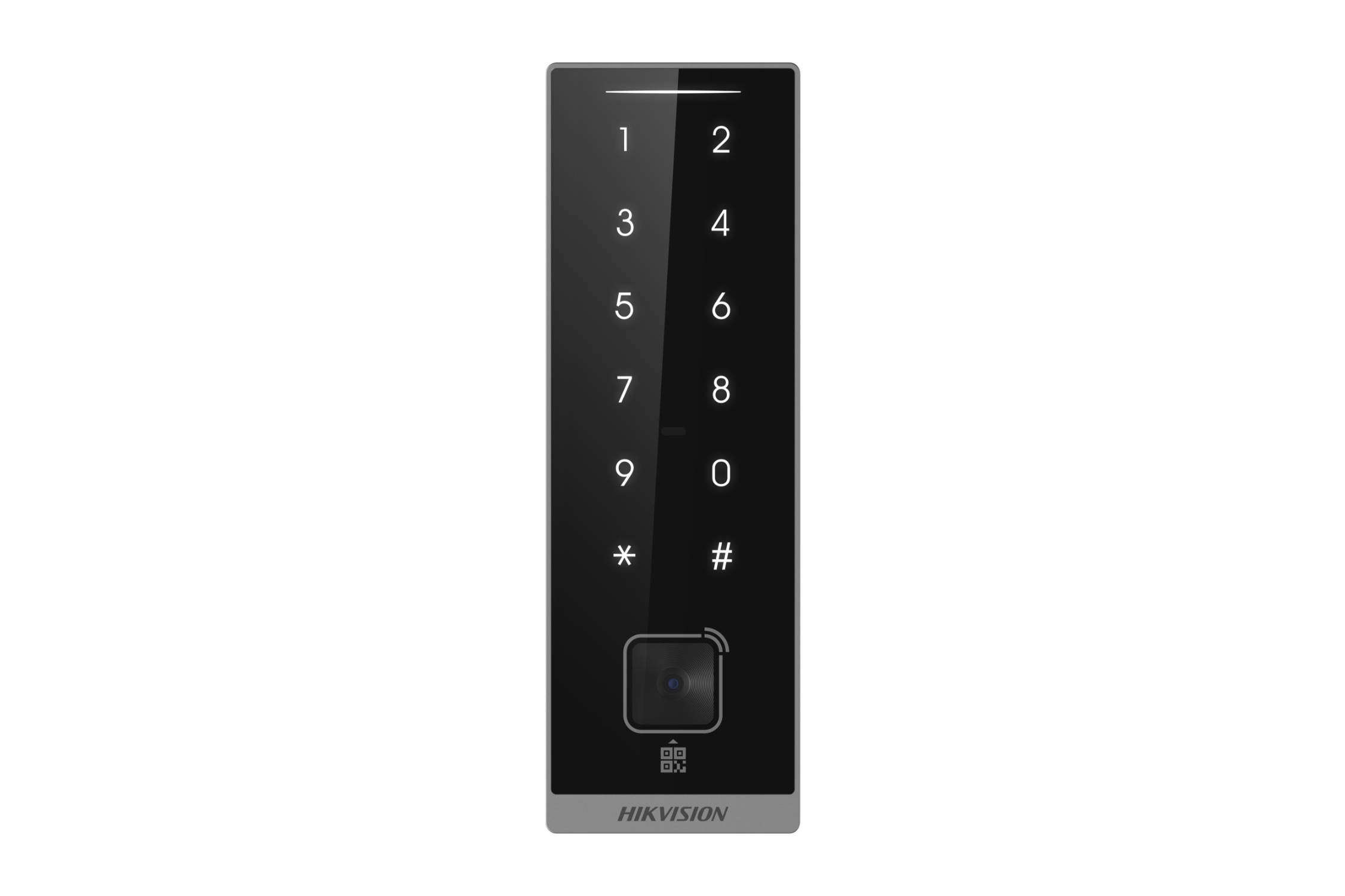

DS-K1105EMKB-QR Electronic Access Control - Card Readers - Pro Card Reader
Verified by manufacturer 6 days ago
Professional series card reader supporting multiple protocols and authentication methods with touch panel and occlusion detection.
Application
Used for electronic access control systems to authenticate users via card swiping, PIN, QR code, or Bluetooth® for secure entry management.
Description
The DS-K1105EMKB-QR is a professional card reader supporting RS-485, Wiegand (W26/W34), and OSDP protocols. It features built-in M1 and EM card reading modules operating at 13.56 MHz and 125 kHz frequencies respectively.
Features and benefits:
- Supports multiple authentication methods including card swiping, PIN, QR code, and Bluetooth®.
- Built-in buzzer for identifying the reading status.
- Supports online upgrades.
- Supports touch panel operation.
- Supports occlusion detection and door open via waving hands with Bluetooth®.
General information
Color | Black |
Finish | Smooth |
Material | Plastic Other |
Shape | Rectangle |
Length | 21.2 mm Guidance for specification option: Depth. |
Width | 46 mm |
Height | 139 mm |
Warranty description | Five year |
Uniclass | |
CAWS | W90/362 Keypads W90/130 Electronic access control systems W90/356 Proximity readers W90/363 Access control units |
SKU Code | DS-K1105EMKB-QR |
Specification data - Proximity card readers
Classification data | |
Type of operation | Networked. |
Operating frequency | 13.56 MHz and 125 kHz. Guidance for specification option: EM and M1 cards. |
Proximity read range | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Number of users (minimum) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Communication interface | RS-485 and Wiegand. Guidance for specification option: Supports OSDP protocol, Baud 19200. |
Integral keypad | Included. |
Mounting position | Wall mounted. |
Visual indication | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Audio status indication | Buzzer. |
Material and finish | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Colour | Black. |
Impact protection (minimum) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Relative humidity (non-condensing) | 0–90%. |
Properties | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Power supply | 12 V d.c. |
Power consumption | ≤6 W. |
Working temperature | -40 to 65°C. |
Humidity | 0–90%. |

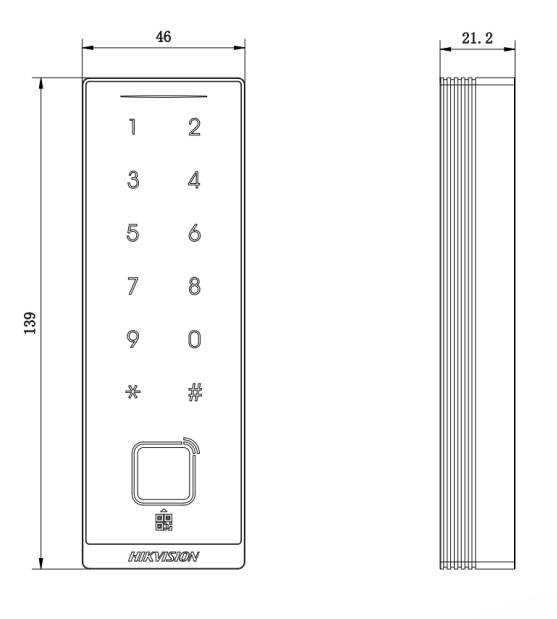

Dimensions | 139 x 46 x 21.2 mm. |
Weight | 167.7 g. |
Sustainability data
Material | Plastic Other |
Literature
DS-K1105EMKB-QR - Product Data Sheet
