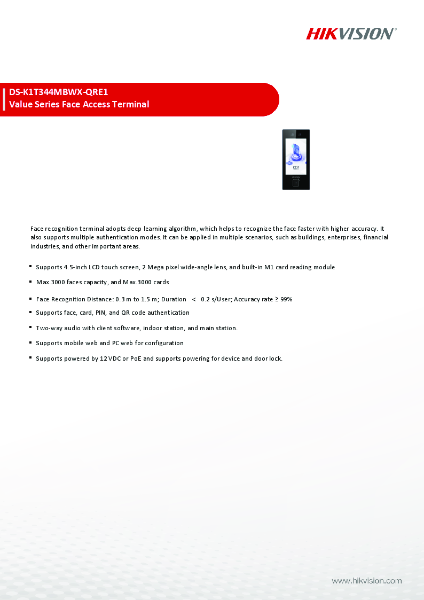

DS-K1T344MBWX-QRE1 Facial Recognition Terminal - Value Series - Face Access Terminal

Name: DS-K1T344MBWX-QRE1 Facial Recognition Terminal - Value Series - Face Access Terminal
Brand: Hikvision UK Limited
SKU: oRaTRcMbwQEKZB8Qf5NAuf

Verified by manufacturer 4 days ago

Hikvision UK Limited

Face recognition terminal with multiple authentication modes and high accuracy for use in buildings and enterprises.

Jump to:

Website

Application

Can be applied in multiple scenarios such as buildings, enterprises, financial industries, and other important areas.

Description

Face recognition terminal with deep learning algorithm, which helps to recognize the face faster with higher accuracy. It also supports multiple authentication modes.

It can be applied in multiple scenarios, such as buildings, enterprises, financial industries, and other important areas.

Features and benefits:

4.5-inch LCD touch screen
2 MP wide-angle lens.
Built-in M1 card reading module.
User, card and face capacities of 3000.
Face recognition distance of 0.3 to 1.5 m; duration less than 0.2 seconds per user; accuracy rate greater than or equal to 99%.
Supports face, card, PIN, and QR code authentication.
Two-way audio with client software, indoor station, and main station.
Supports mobile web and PC web for configuration.
13 language options.
Linux operating system (OS).
Supports being powered by 12 V d.c. or power over Ethernet (PoE) and supports powering for device and door lock.
Optional bracket and protective shield available.
Also available without the QR code module, QR read via camera only (DS-K1T344MBWX-E1; specified separately).
Part of the Hikvision Value series.

General information

Color	Black
Finish	Smooth
Material	Glass Other
Shape	Rectangle
Length	25 mm Guidance for specification option: Depth.
Width	75.7 mm
Height	165.2 mm
Warranty description	Three year

Uniclass	Pr_75_30_30_42 Intercom entrance panelsPrimary Pr_75_30_30_03 Access control units Pr_75_30_30_57 Multiple-technology readers Pr_75_30_30_67 Proximity card readers Ss_75_40_02_11 Card access control systems Ss_75_40_02_05 Audio intercom systems
CAWS	W90/356 Proximity readers W90/130 Electronic access control systems W90/365 Intercom entrance panels W90/363 Access control units

SKU Code	DS-K1T344MBWX-QRE1

Specification data - Intercom entrance panels

Classification data
Material and finish	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Colour	Black. Guidance for specification option: Excluding screen.
Impact protection (minimum)	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Rated operational voltage (Ue)	12 V d.c. Guidance for specification option: IEEE802.3at, standard PoE; 1 A.
Type of operation	Networked. Guidance for specification option: Bluetooth®. Wired network: 10/100 Mbps self adaptive. Wi-Fi.
Communication interface	Two x alarm inputs; one alarm output; one x network interface; one x RJ-45; one x RS-485; one x Wiegand input; one x lock control; one x exit button; one x door contact input; one x TAMPER; one x USB.
Entrance panel call buttons	One.
Integral keypad	-
Key type	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Features	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Integral credential reader	M1 card reader, 13.56 MHz. QR code scanning via QR code module or camera; facial recognition via camera. Guidance for specification option: Consult manufacturer's literature for facial recognition parameters.
LCD display	4.5" touch screen, resolution 480 x 854.
Microphone	Integral. Guidance for specification option: Two-way audio; consult manufacturer for details.
Speaker	Integral. Guidance for specification option: Two-way audio; consult manufacturer for details.
Camera	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Remote door opening	Required. Not required.
Mounting position	Wall mounted.

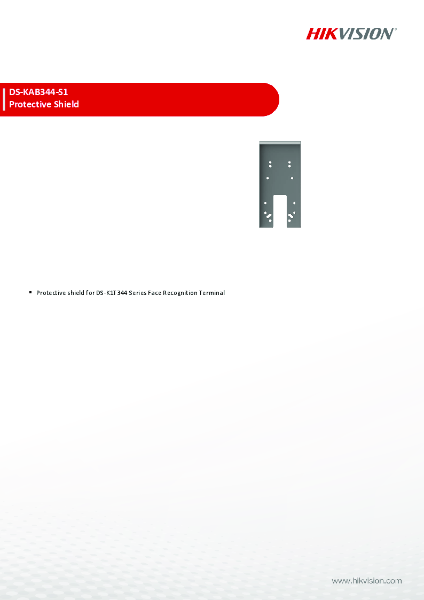

Accessories	DS-KAB323-W1 wall mounting bracket. DS-KAB344-S1 protective shield. None.
Properties	-
Recycled content As defined in clause 7.8 of BS EN ISO 14021	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Operating system	Linux.
Capacity	Users: 3000. Cards: 3000. Faces: 3000. Events: 150 000.
Working temperature	-30 to 60°C.
Humidity	10–90% (non-condensing).
Dimensions	165.2 x 75.7 x 25 mm.
Ingress protection	IP65.
Weight	Net: 0.3 kg.
