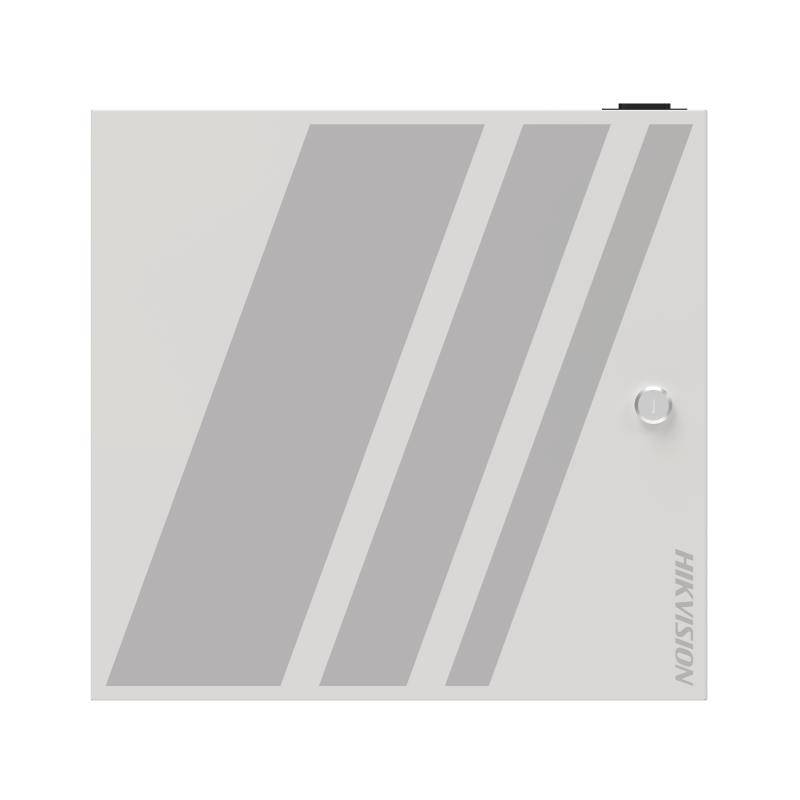

DS-K2702X Electronic Access Control - Door Controller - Access Controller
Verified by manufacturer 13 hours ago
Web-configurable access controller supporting up to 126 doors with RS-485 connectivity and professional access control features.
Application
Suitable for controlling access in subways, airports, banks, large groups, and other industry projects requiring multi-door access control.
Description
The access controller supports web configuration, which requires no software installation on a PC. By connecting with access modules via RS-485, it can extend to control up to 126 doors, suitable for subways, airports, banks, large groups, and other industry projects.
Features and benefits:
- Supports two-door control and can extend up to 62 DS-K2M002X access modules (specified separately), controlling up to 126 doors.
- Downstream RS-485 redundancy wiring design ensures communication stability.
- Five channel downlink RS-485 interface supports dual applications for communication and redundancy.
- Web configuration management allows all configurations via web without software.
- Supports professional access control applications such as multi-door interlocking and anti-passback.
- Supports backup battery access with charging and discharging capabilities.
- Status indicators for power supply, communication, and operation facilitate equipment health detection.
- Supports 21 languages.
- Linux operating system.
- User capacity: 100 000.
General information
Color | Grey |
Finish | Smooth |
Material | Metal |
Shape | Rectangle |
Length | 88.3 mm Guidance for specification option: Depth. |
Width | 360 mm |
Height | 345 mm |
Warranty description | Five year |
Uniclass | |
CAWS | W90/363 Access control units |
SKU Code | DS-K2702X |
Specification data - Access control units
Classification data | |
Type of operation | Networked. |
Number of doors per controller | Two. Guidance for specification option: Self. Extended (more than two). Guidance for specification option: Can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled. Insert details. |
Number of users (minimum) | 100 000. Manufacturer guidanceSee also Integral event memory capacity (minimum) and Capacity. |
Communication interface | One x network interface; four x alarm inputs; four x alarm output; one x TAMPER; seven x RS-485; four x Wiegand; one x USB 2.0; one x fire interface. |
Visual indication | Ten indicators: One for indicating power status, one for running status, one for wired network status, five for RS-485 status, and two for door status. |
Interfaces | |
Door lock relays | Two. |
Door status monitoring | Two. |
Readers | Two. Guidance for specification option: RS-485. Linked card capacity: 4 x RS-485 (OSDP protocol) and 4 x Wiegand. |
Request-to-exit buttons | Two. |
Rated operational voltage (Ue) | 100–240 V a.c. |
Rated operational current (In) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Data encryption | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Battery backup | |
Battery location | Guidance for specification option: Supports backup battery access, charging and discharging are available. Insert requirements or omit. |
Random access memory (RAM) capacity (minimum) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Storage memory capacity | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Administration access | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Information fields per user | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Spare information fields per user (minimum) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Integral event memory capacity (minimum) | 600 000. Manufacturer guidanceSee also Number of users (minimum) and Capacity. |
Monitor and record the following transactions and events | Guidance for specification option: Insert requirements or omit. |
Events and transactions | Guidance for specification option: Insert requirements or omit. |
Control features | |
Include the following | Guidance for specification option: Insert requirements or omit. |
Anti-passback | Guidance for specification option: Support 32 routes (64 card readers each). Insert requirements or omit. |
Time between credential presentation and door unlock (maximum) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. Fingerprint recognition duration: <1 s. |
Reports | |
Transaction and event reports | Guidance for specification option: Insert requirements or omit. |
Other reports | Guidance for specification option: Insert requirements or omit. |
Enclosure | |
Material and finish | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Colour | Grey/ white. |
Accessories | DS-K2M002X module. None. |
Properties | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Operating system | Linux. |
Capacity | Fingerprints: 10 000. Cards: 200 000. Manufacturer guidanceSee also Number of users (minimum) and Integral event memory capacity (minimum). |
Power consumption | ≤72 W. |
Working temperature | -10 to 55°C. |
Humidity | 0–90% (non-condensing). |
Installation | Wall mounted. |
Sustainability data
Material | Metal |
