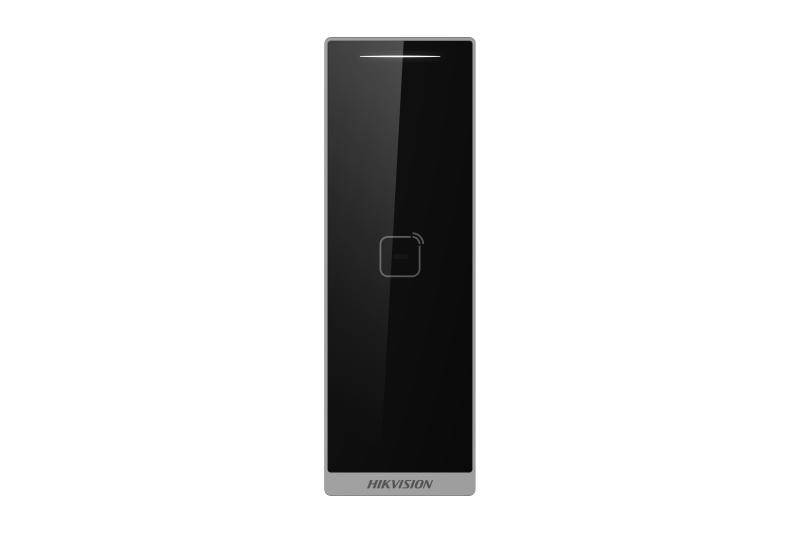

DS-K1105EMB Electronic Access Control - Card Readers - Pro Card Reader
Verified by manufacturer 29 days ago
Professional card reader supporting multiple protocols and authentication methods including card swiping and bluetooth.
Application
Used for electronic access control systems to authenticate users via card swiping, Bluetooth®, and other methods for secure entry.
Description
The DS-K1105EMB is a professional card reader supporting RS-485, Wiegand (W26/W34), and OSDP protocols.
Features and benefits:
- Build-in M1 and EM card reading module operating at 13.56 MHz and 125 kHz frequencies.
- Built-in buzzer for identifying the reading status.
- Supports online upgrade.
- Supports multiple authentication methods such as card swiping and Bluetooth®.
- Supports touch panel for operation.
- Also available without keypad (DS-K1105EMKB; specified separately).
- Part of the Hikvision Pro Series.
- Supports occlusion detection and door open via waving hands with Bluetooth®.
General information
Color | Black |
Finish | Smooth |
Material | Plastic Other |
Shape | Rectangle |
Length | 21.2 mm Guidance for specification option: Depth. |
Width | 46 mm |
Height | 139 mm |
Warranty description | Five year |
Uniclass | |
CAWS | W90/130 Electronic access control systems W90/356 Proximity readers W90/363 Access control units |
SKU Code | DS-K1105EMB |
Specification data - Proximity card readers
Classification data | |
Type of operation | Networked. Manufacturer guidanceRequires connection to a door controller such as the DS-K270x range of products (specified separately). |
Operating frequency | 13.56 MHz and 125 kHz. Guidance for specification option: EM and M1 cards. |
Proximity read range | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Number of users (minimum) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Communication interface | RS-485 and Wiegand. Guidance for specification option: Supports RS-485 protocol, Wiegand (W26/W34) protocol, and OSDP protocol. |
Mounting position | Surface. |
Visual indication | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Audio status indication | Buzzer. |
Material and finish | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Colour | Black. |
Impact protection (minimum) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Relative humidity (non-condensing) | 0–90%. |
Properties | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Power supply | 12 V d.c. |
Power consumption | ≤6 W. |
Working temperature | -40 to +65°C. |
Ingress protection | IP66. |

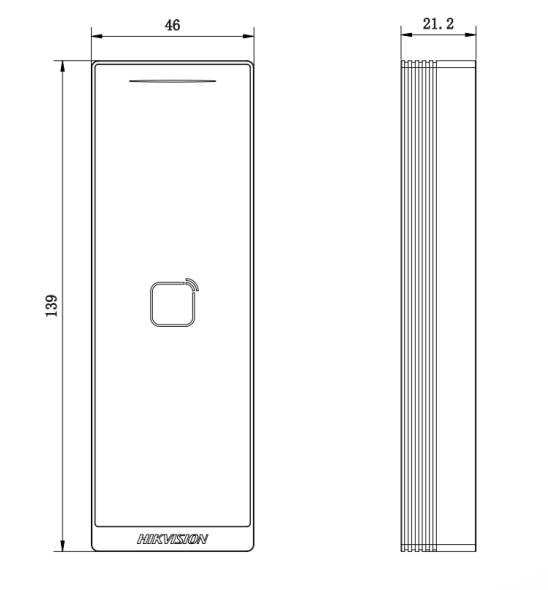

Dimensions | 139 x 46 x 21.2 mm. |
Installation | Wall mounted. |
Weight | 167.7 g. |
Sustainability data
Material | Plastic Other |
Literature
DS-K1105EMB - Product Data Sheet
