DS-KD9633-WBE6 Facial Recognition Door station - IP Intercom - Commercial/ Apartment

Name: DS-KD9633-WBE6 Facial Recognition Door station - IP Intercom - Commercial/ Apartment
Brand: Hikvision UK Limited
SKU: 4UwDnX5zQFaM1H7T3kzVuL

Verified by manufacturer 4 days ago

Hikvision UK Limited

HD series network apartment face recognition door station with 10-inch touch screen, Android operating system, multiple authentication modes and IP65 protection.

Jump to:

Website

Application

Suitable for enterprise applications, apartments, offices, construction sites and outdoor environments.

Description

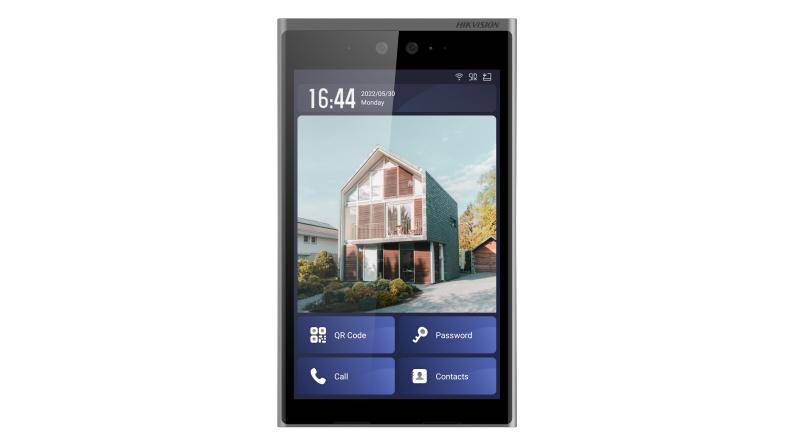

The KD9 series network apartment face recognition door station features a 10" high resolution touch screen and Android system for fluent operation.

Features and benefits:

Intuitive operation for a better user experience.
10.1-inch colourful LCD screen with 1280 x 800 resolution.
Built-in Android operating system.
Touch screen user interface.
See clearly with the 2 MP camera; great image quality even in darkness.
Multiple intelligent authentications: card, PIN code, Bluetooth®, QR code, fingerprint and face recognition.
High level of protection: IP65.
Supports 33 languages.
Optional protective shield available.
Part of the Hikvision Ultra Series.

General information

Color	Black
Finish	Smooth
Material	Glass
Shape	Rectangle
Length	26.51 mm Guidance for specification option: Depth.
Width	159.2 mm
Height	271 mm
Warranty description	Three year

Uniclass	Pr_75_30_30_42 Intercom entrance panelsPrimary Ss_75_40_02_11 Card access control systems Pr_75_30_30_67 Proximity card readers Pr_75_30_30_03 Access control units
CAWS	W90/365 Intercom entrance panels W90/130 Electronic access control systems W90/363 Access control units

SKU Code	DS-KD9633-WBE6

Specification data - Intercom entrance panels

Classification data
Material and finish	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Colour	Black. Guidance for specification option: Screen surround.
Impact protection (minimum)	Manufacturer's standard.
Rated operational voltage (Ue)	12 V d.c. Guidance for specification option: 2 A.
Type of operation	Networked.
Communication interface	Four alarm inputs; two x RJ-45; one x TAMPER; two x exit buttons; two x RS-485; two x USB (internal only); one x TF card; one x alarm output; two relays (lock control); one door contact input.
Integral keypad	-
Key type	Touch screen.
Integral credential reader	Card, PIN code, Bluetooth®, QR code, fingerprint and face recognition.
LCD display	10" with 1280 x 800 resolution.
Microphone	Integral. Guidance for specification option: Two built-in omnidirectional microphones. Consult manufacturer's literature for further details.
Speaker	Integral. Guidance for specification option: One built-in loudspeaker with adjustable volume. Consult manufacturer's literature for further details.
Visual indication	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Camera	2 x 2 MP HD camera with low illumination.
Remote door opening	Required. Not required.
Mounting position	Surface. Flush.
Accessories	DS-KAW50-1 50 W 12 V power adapter. DS-KAW50-1N 50 W 12 V power adapter. DS-KABD9633-RS protective shield. None.
Properties	-
Recycled content As defined in clause 7.8 of BS EN ISO 14021	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Operating system	Android 7.1; 4 GB ROM; 2 GB RAM; embedded high performance processor.
Capacity	Users: 20 000. Faces: 10 000. Cards: 100 000. Linked indoor stations: 500. Sub door station: 16.
Ingress protection	IP65.
Weight	Net: 1.225 kg; gross: 3.333 kg.
Working temperature	-30 to +60°C.
Humidity	10–90% (non-condensing).
Dimensions	271 × 159.2 × 26.5 mm.
Power consumption	≤18 W.
