DS-KD9203-ME6 Facial Recognition Door station - IP Intercom - Commercial/ Apartment
Verified by manufacturer 4 days ago
IP door station with facial recognition, 4.3-inch screen, 2 MP cameras, and multiple authentication modes for secure access control.
Application
Can be used for secure access control in apartments, offices, construction sites and other outdoor environments requiring video intercom and multiple authentication modes such as face recognition, fingerprint, card, and PIN code.
Description
The KD9 series IP door station helps to view the details of entrance or door with high resolution image and large view by two 2 MP camera, which provides a safety environment. It supports multiple authentication modes, such as face, fingerprint, card, and buttons, satisfying different environments and providing convenient use experience, which helps visitors or residents to use video intercom in the scenarios of apartments, offices, construction sites etc.
Features and benefits:
- 4.3-inch colourful LCD screen with 800 x 480 resolution.
- Two x 2 MP cameras with wide-angle HD lenses.
- IP65 protection level.
- Built-in M1 card reading module.
- Multiple interfaces: RJ45, RS-485, alarm input, relay.
- Convenient configuration via web remotely.
- Linux operating system (OS).
- Supports 37 languages.
- Convenient unlock methods: face, cards, PIN code.
- Optional protective shield available.
- Part of the Hikvision Ultra Series.
General information
Color | Silver |
Finish | Other |
Material | Metal Plastic Glass |
Shape | Rectangle |
Length | 43.7 mm Guidance for specification option: Depth. |
Width | 124 mm |
Height | 373 mm |
Warranty description | Three year |
Uniclass | |
CAWS | W90/365 Intercom entrance panels W90/130 Electronic access control systems W90/370 Intercom remote handsets W90/363 Access control units |
SKU Code | DS-KD9203-ME6 |
Specification data - Intercom entrance panels
Classification data | |
Material and finish | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Colour | Silver/ black. |
Impact protection (minimum) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Rated operational voltage (Ue) | 12 V d.c. Guidance for specification option: 1.5 A. |
Type of operation | Networked. |
Communication interface | Four alarm inputs; one RJ-45; two RS-485; two relays (lock control); one door contact input. Guidance for specification option: Consult manufacturer's literature for details. |
Entrance panel call buttons | Digital coded access keypad. |
Integral keypad | |
Key type | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Features | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Integral credential reader | Proximity. Guidance for specification option: M1 cards. |
LCD display | 4.3", colour, 800 x 480 resolution. |
Microphone | Integral. Guidance for specification option: One built-in omnidirectional microphone. Consult manufacturer's literature for audio compression standards. |
Speaker | Integral. Guidance for specification option:
|
Visual indication | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Camera | 2 MP HD, 120° field of view. Guidance for specification option: Consult manufacturer's literature for further details. |
Remote door opening | Required. Not required. |
Mounting position | Flush. |
Accessories | Hikvision DS-KAD40 IP Intercom, addressable switch. DS-KABD9203-RS protective shield. None. |
Properties | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Operating system | Linux; 1 GB ROM; 4 GB RAM; embedded high performance processor. |
Capacity | Users: 10 000. Faces: 5000. Cards: 50 000. |
Ingress protection | IP65. |
Weight | Net: 1.186 kg; gross: 1.471 kg. |
Working temperature | -30 to +60°C. |
Humidity | 10% to 90% (non-condensing). |
Dimensions | 373 x 124 x 43.7 mm. |
Power consumption | ≤13 W. |
Sustainability data
Material | Metal Plastic Glass |
Literature

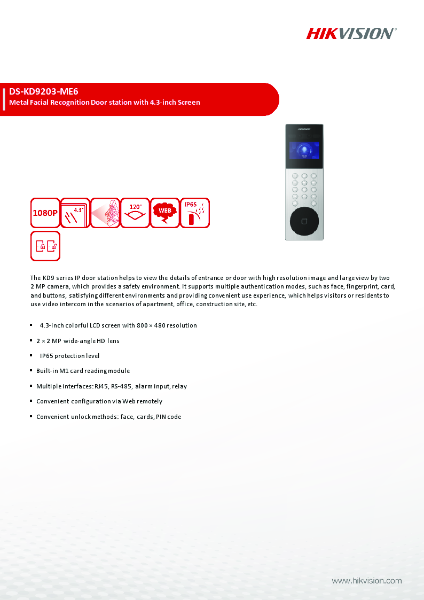

DS-KD9203-ME6 - Product Data Sheet
