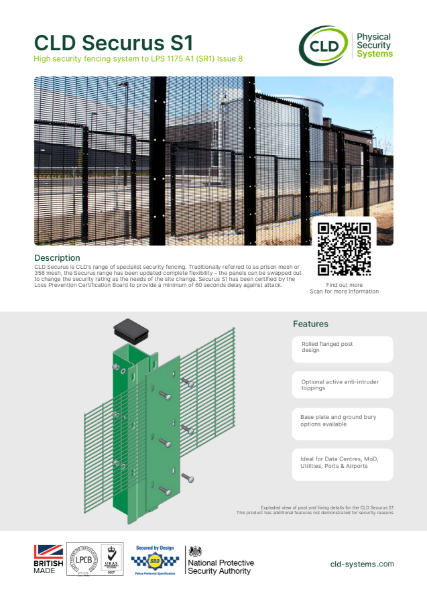

CLD Securus S1 - Security Fence

Name: CLD Securus S1 - Security Fence
Brand: CLD Physical Security Systems
SKU: cWzqVtqdHMQzCYhfTNM7bN

Verified by manufacturer 2 days ago

CLD Physical Security Systems

Product certifications:

BRE Certificate
Certificate type

High security 358 fencing system.

Jump to:

BOS

+44 (0)1270 764751 Website

Application

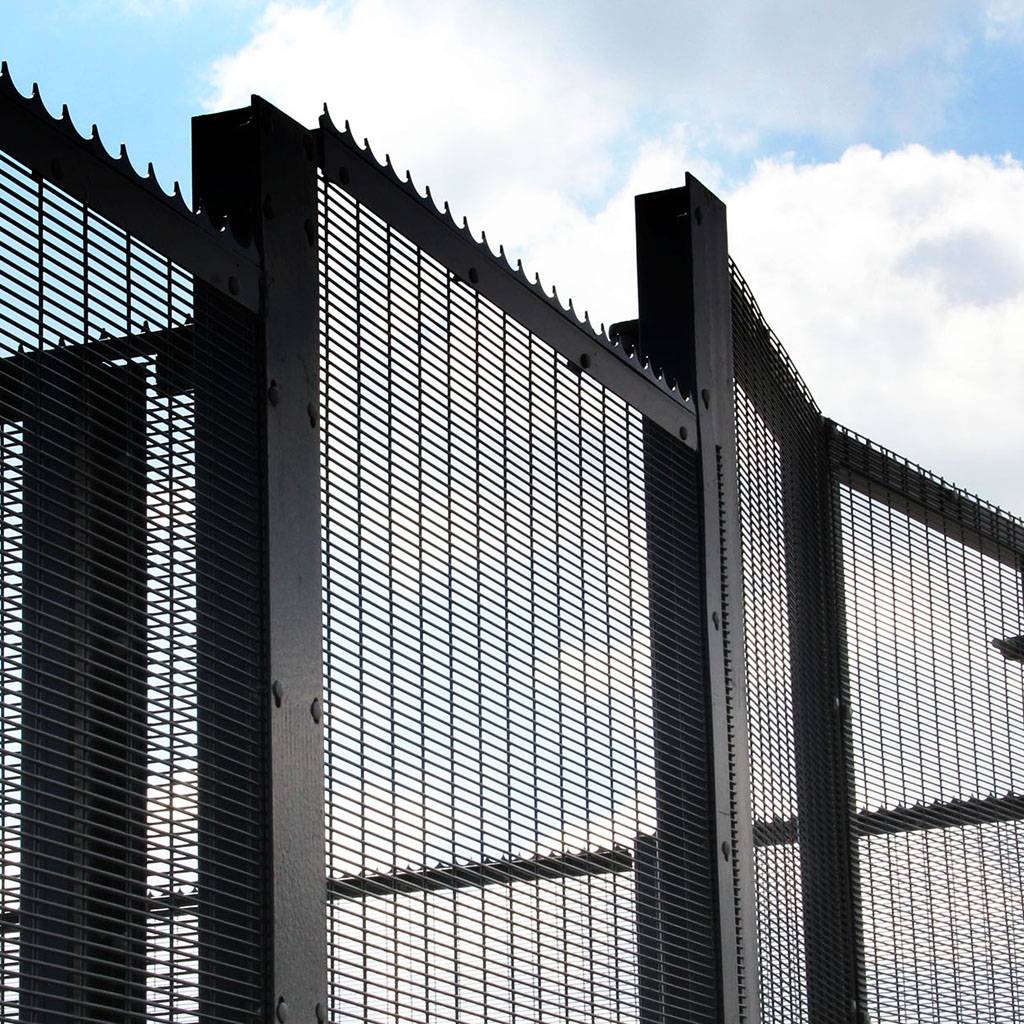

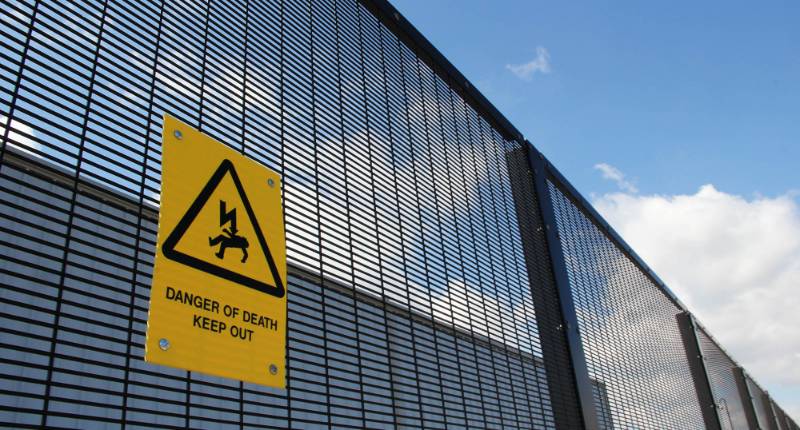

The CLD Securus range is a flexible, high-security fencing system specifically designed to protect sensitive and high-risk environments. Commonly known as 358 mesh or prison mesh, Securus has evolved to meet modern security demands—offering a modular solution where mesh panels can be upgraded to match changing threat levels on site.

The Securus S3 configuration is Loss Prevention Certification Board (LPCB) certified, providing a minimum of 60 seconds delay against attack, making it ideal for sites requiring tested and reliable perimeter protection.

This makes Securus the fencing system of choice for:

Data centres
Ministry of Defence (MoD) facilities
Police stations and secure units
Airports and seaports
Utility suppliers and critical infrastructure

Featuring a rolled flanged post design, rigid welded mesh panels, and available in a wide range of RAL colours, the Securus system can be configured with base plate or ground bury options for versatile installation across various terrains. It also supports a selection of optional anti-intruder toppings, allowing further customisation based on site risk assessment.

From national infrastructure to sensitive government sites, the CLD Securus range ensures security without compromise—scalable, durable, and futureproof.

Description

CLD Securus is a range of specialist security fencing. Traditionally referred to as prison mesh or 358 mesh, the Securus range has been updated and the panels can be swapped out to change the security rating as the needs of the site change. Securus S3 has been certified by the Loss Prevention Certification Board to provide a minimum of 60 seconds delay against attack.

Features and benefits:

Rolled flanged post design.
Rigid welded mesh panels.
RAL colours available.
Optional anti-intruder toppings available.
Base plate and ground bury options available.

General information

Color	Green Other Guidance for specification option: Any RAL colour.
Finish	Powder-coated Galvanized
Material	Steel Aluminium
Shape	Rectangle
Width	2518 mm
Height	Bespoke Guidance for specification option: 2440-5000 mm.
Warranty description	15 year Guidance for specification option: Minimum of 15 years against manufacturing defects.

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general-purpose fencing Q40/430 Proprietary fencing

Product range	High Level Security Systems

Specification data - Metal mesh panel fencing systems

System performance	Anti-intruder and security fencing performance.
Standard	To BS 1722-14.
Category	1.
Posts	Special flanged post. Guidance for specification option: Galvanised after manufacture and polyester powder-coated to match fencing.
Post foundations	Set posts in holes minimum 450 mm square x 950 mm deep.
Panels	Double layered mesh cassette system. High aluminium content. Guidance for specification option: Fence Cassettes are supplied assembled for ease of install, mechanical lifting required – can be supplied unassembled).
Fence topping	Cranked. Straight. Manufacturer guidance Barbed and razor wire.
Site applied finishes	Polyester powder-coated to 60-80 µ. Polyester powder-coated to 160-200 µ. Manufacturer guidance With marine grade and metallics.

Height	- Manufacturer guidance Available between 2440-5000 mm. Insert requirements,
Colour/ Finish	Green. RAL colour. Guidance for specification option: Any RAL colour available. Insert requirements.
Mesh size	76.2 x 12.5 mm.
WireDiameter	4 mm. Guidance for specification option: Verticals.
Width	2518 mm.
Size	80 x 60 mm.
Post centres	2535 mm. Guidance for specification option: +/- 15 mm.
Fixings	120 x 6 mm full length clamp bar. M8 Stainless Steel cup square bolt (min 30 mm).
Installation	Bottom of panel approx. 50 mm above ground. Guidance for specification option: Base plated and no ground bury options also available.
SecurityRating	LPS 1175 A1 (Issue 8).
