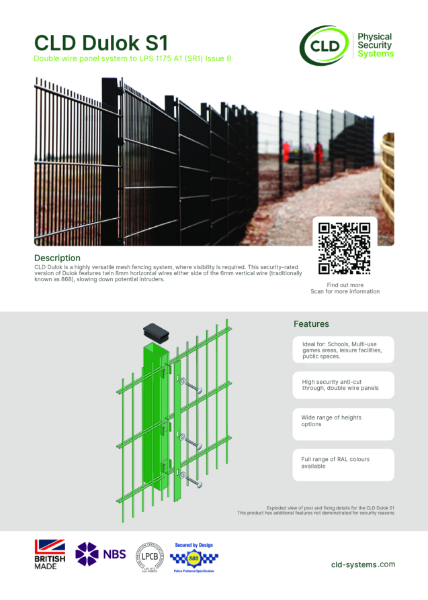

Double wire panel fencing system.

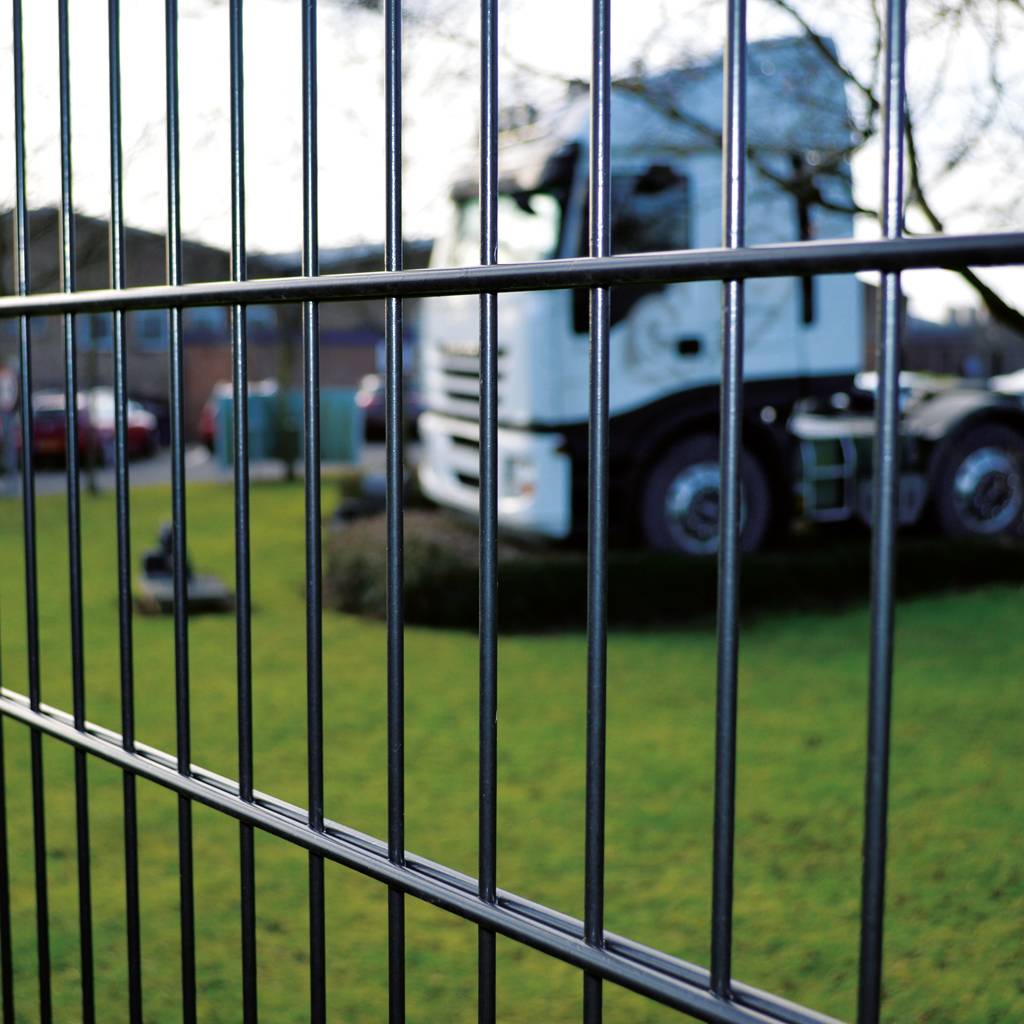

CLD Dulok S1 is a highly versatile mesh fencing system, where visibility is required. This security-rated version of Dulok features twin 8 mm horizontal wires either side of the 6 mm vertical wire (traditionally known as 868), slowing down potential intruders.
Features and benefits:
Any RAL colour available.
Minimum of 15 years against manufacturing defects.
Q40/126 Open mesh steel panel security fencing
Q40/27 Open mesh steel panel general purpose fencing
Q40/430 Proprietary fencing
Anti-intruder and security fencing performance.
To BS 1722-14:2017, BS EN ISO 1461:2009, BS EN 13438:2013.
Galvanized after manufacture and polyester powder-coated to match fencing.
Carbon steel posts.
Set posts in holes minimum of 300 mm square or 400 mm diameter x 800 mm deep.
Mesh and wire, single vertical and double horizontal wires.
Available on request, contact manufacturer for details.
Site applied finishes
With marine grade and metallics.
Polyester powder-coated to 60-80 µ.
Polyester powder-coated to 160-200 µ.
Available heights between 1830–5070 mm. Insert requirements.
Post dimensions minimum 60 mm x 40 mm depending on height of panel.
Consult manufacturer and insert requirement.
200 x 50 mm.
6 mm verticals and twin 8 mm horizontals (868).

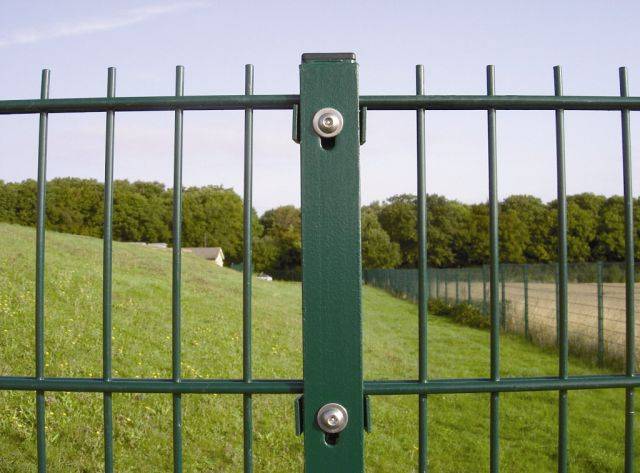

40 x 5 mm full length clamp bar. M8 x 40 mm stainless steel pin hex dome-head security screws.
Sheardrive™ if required instead of pin hex.
Top edge projection.
60 x 40 mm.
Dependent on panel size.
Bottom of panel approximately 50 mm above ground.

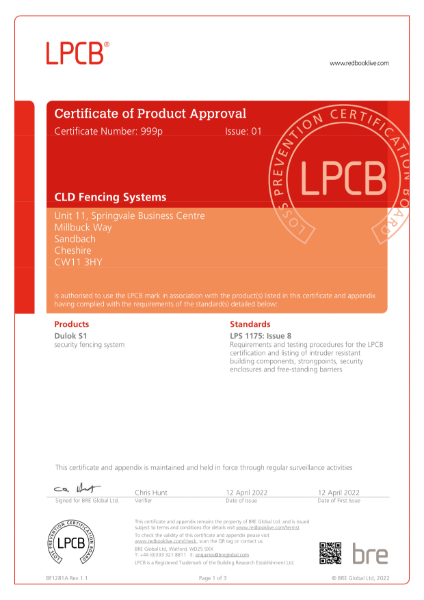

LPS 1175 A1 (SR1) Issue 8.
Country of product manufacture
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
