Application

For panel systems using a mechanical secret fix.

Description

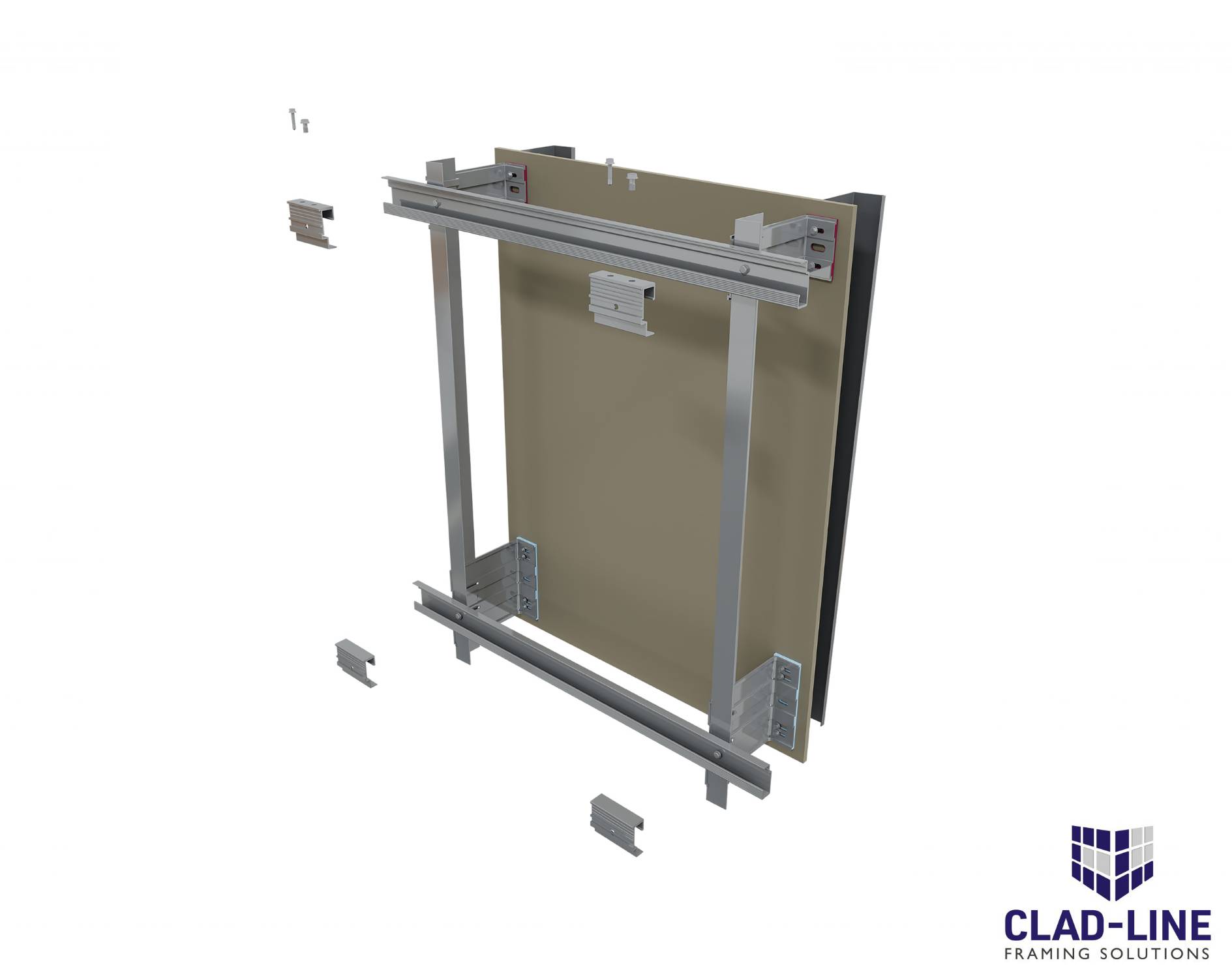

CL3 is CLAD-LINE’s subframe system for mechanically secret fixed applications, suitable for use with Rockpanel, high-pressure laminate (HPL), ceramic, thin stone and fibre cement.


CLAD-LINE’s CL3 panel hangers which are secured to the rear face of the cladding panel simply ‘hook-on’ to the horizontal rails. The CL3 horizontal rails can be fixed back to the CL1, CL4 or CLF2F systems.


CLAD-LINE’s range of support brackets comes pre-fitted with a thermal isolation pad. This reduces installation time on site as well as improving the thermal performance of the bracket.


Features and benefits:

  • Lightweight
  • Durable
  •  Minimal contact between hanger and panel
  • Adjustable panel hangers
  • Suitable for use with Rockpanel, HPL, ceramic, stone and fibre cement
  • Non-combustible
  • Suitable for new build and refurbishment
  • Hook-on panel installation
  • Minimal contact between hanger and panel
  • Adjustable hangers
  • 100% recyclable aluminium
  • Pre-fitted thermal isolator pad to brackets
  • A2 thermal pads available on request

General information

Color

Silver

Finish

Anodized

Mill

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

3000 mm

6000 mm

Width

Bespoke

Height

Bespoke

Uniclass

Pr_20_85_20_04 Aluminium carrier railsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails

Classification data

Brackets

Single Bracket 40 mm – CLSB40 45-75 mm.
Single Bracket 60 mm – CLSB60 65-95 mm.
Single Bracket 90 mm – CLSB90 95-125 mm.
Single Bracket 120 mm – CLSB120 125-155 mm.
Single Bracket 150 mm – CLSB150 155-185 mm.
Single Bracket 180 mm – CLSB180 185-215 mm.
Single Bracket 210 mm – CLSB210 215-245 mm.
Single Bracket 240 mm – CLSB240 245-275 mm.
Single Bracket 270 mm – CLSB270 275-305 mm.
Single Bracket 300 mm – CLSB300 305-335 mm.
Double Bracket 40 mm – CLDB40 45-75 mm.
Double Bracket 60 mm – CLDB60 65-95 mm.
Double Bracket 90 mm – CLDB90 95-125 mm.
Double Bracket 120 mm – CLDB120 125-155 mm.
Double Bracket 150 mm – CLDB150 155-185 mm.
Double Bracket 180 mm – CLDB180 185-215 mm.
Double Bracket 210 mm – CLDB210 215-245 mm.
Double Bracket 240 mm – CLDB240 245-275 mm.
Double Bracket 270 mm – CLDB270 275-305 mm.
Double Bracket 300 mm – CLDB300 305-335 mm.

Rails

CL3 Rail 3000 mm CL3-RAIL/3000.
CL3 Rail 6000 mm CL3-RAIL/6000.

Manufacturer guidance

[PLEASE SPECIFY PRIMARY RAIL – SEE CL1,CL4 OR CLF2F]

Hangers

CL3 Hanger Bracket Standard CL3-H/BRKT/STD
CL3 Hanger Bracket Adjustable CL3-H/BRKT/ADJ
CL3 Hanger Bracket Fixed Point CL3-H/BRKT/FP

Fixings

-

Manufacturer guidance

Insert requirements. A range of fixings are available. All fixings can be colour matched.

Accessories

Double A2 Isolator Pad [CL-DOUBLEPAD/A2].
Double Isolator Pad [CL-DOUBLEPAD].
Single A2 Isolator Pad [CL-SINGLEPAD/A2].
Single Isolator Pad [CL-SINGLEPAD]

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Fully recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

65 %

Literature

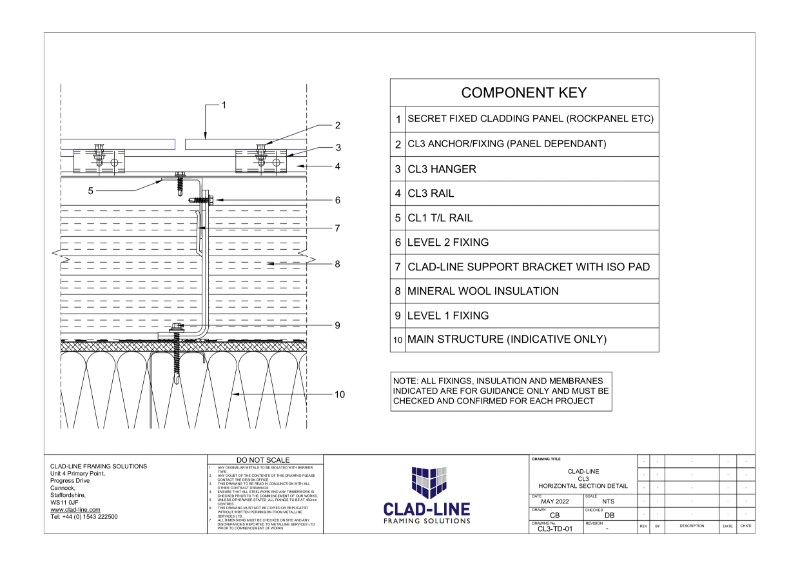

CL3 - Horizontal Section Technical Drawing

CL3 - Horizontal Section Technical Drawing

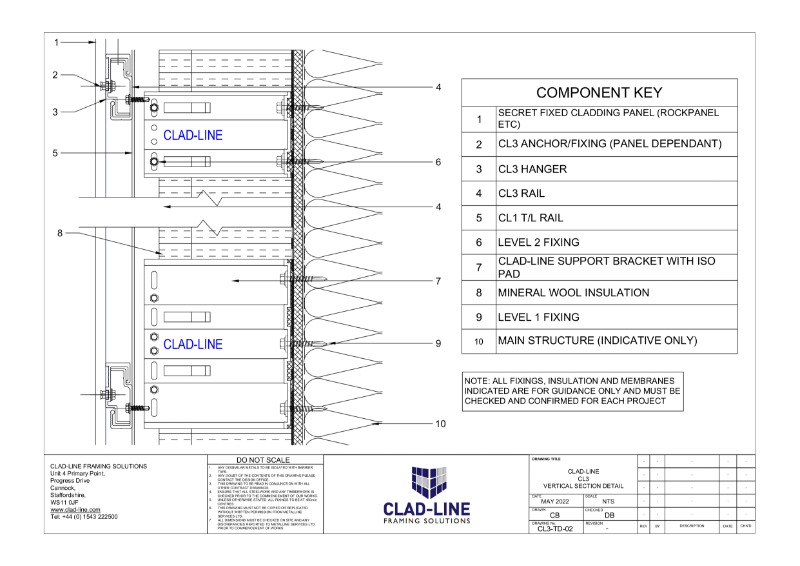

CL3 - Vertical Section Technical Drawing

CL3 - Vertical Section Technical Drawing

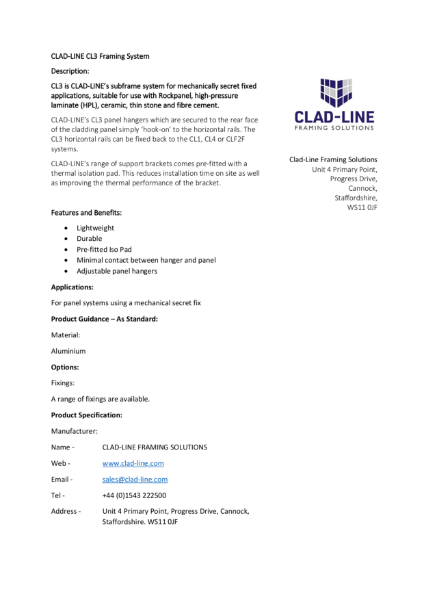

CL3 Specification Sheet

CL3 Specification Sheet

Clad-Line Framing Solutions Brochure

Clad-Line Framing Solutions Brochure
