CLAD-LINE CL1 Framing System

Verified by manufacturer 4 months ago

Clad-Line Framing Solutions

Rainscreen framing system. For panel systems using face fixings or discrete mechanical fixings.

Jump to:
+44 (0)1543 222 500 Website

Application

For panel systems using face fixings or discrete mechanical fixings.

Description

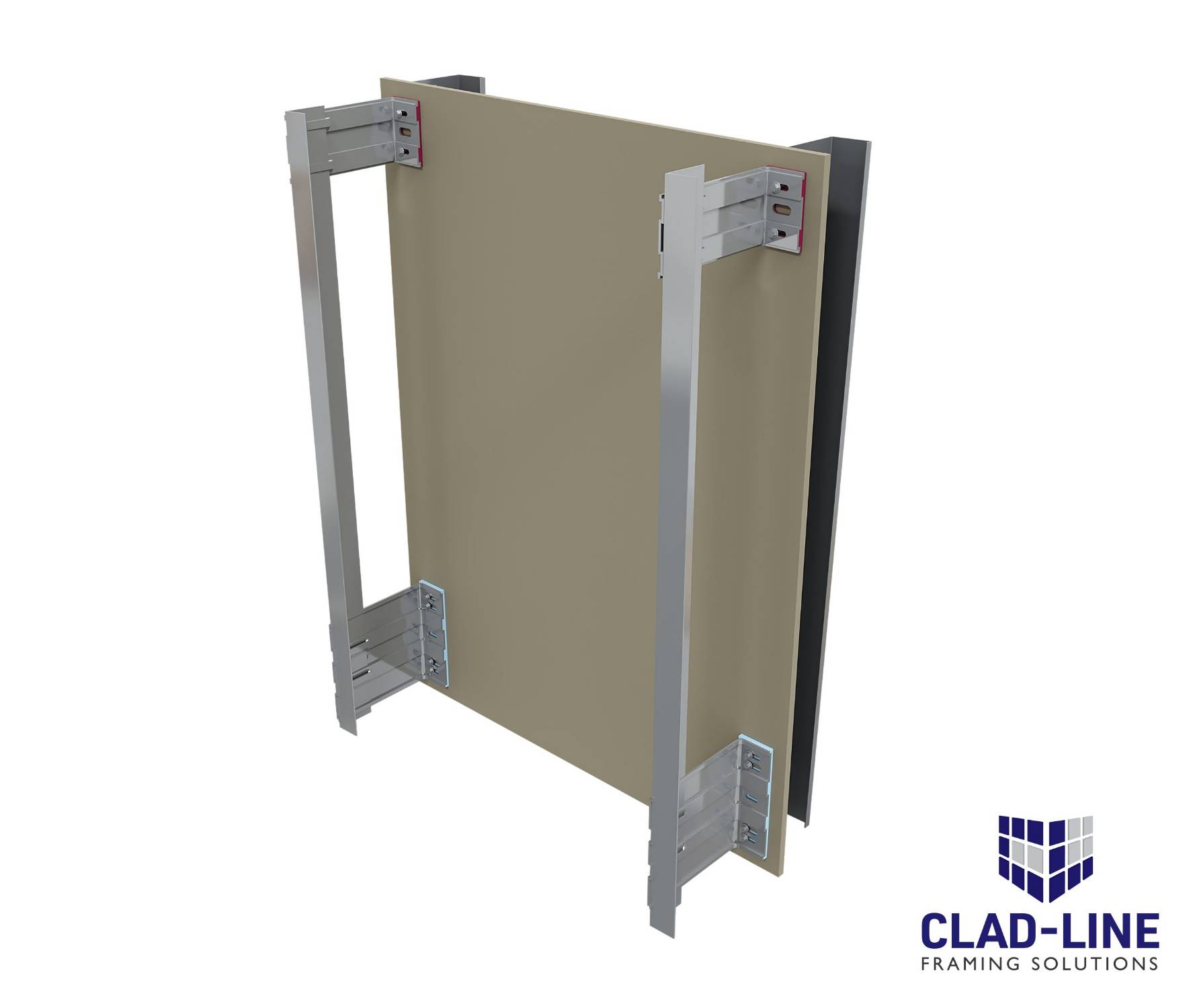

CL1 is CLAD-LINE’s vertical subframe system suited for a wide range of face fixed and discrete fixed cladding applications including metal rainscreen panels, Rockpanel, fibre cement, high pressure laminate (HPL) and ACM.

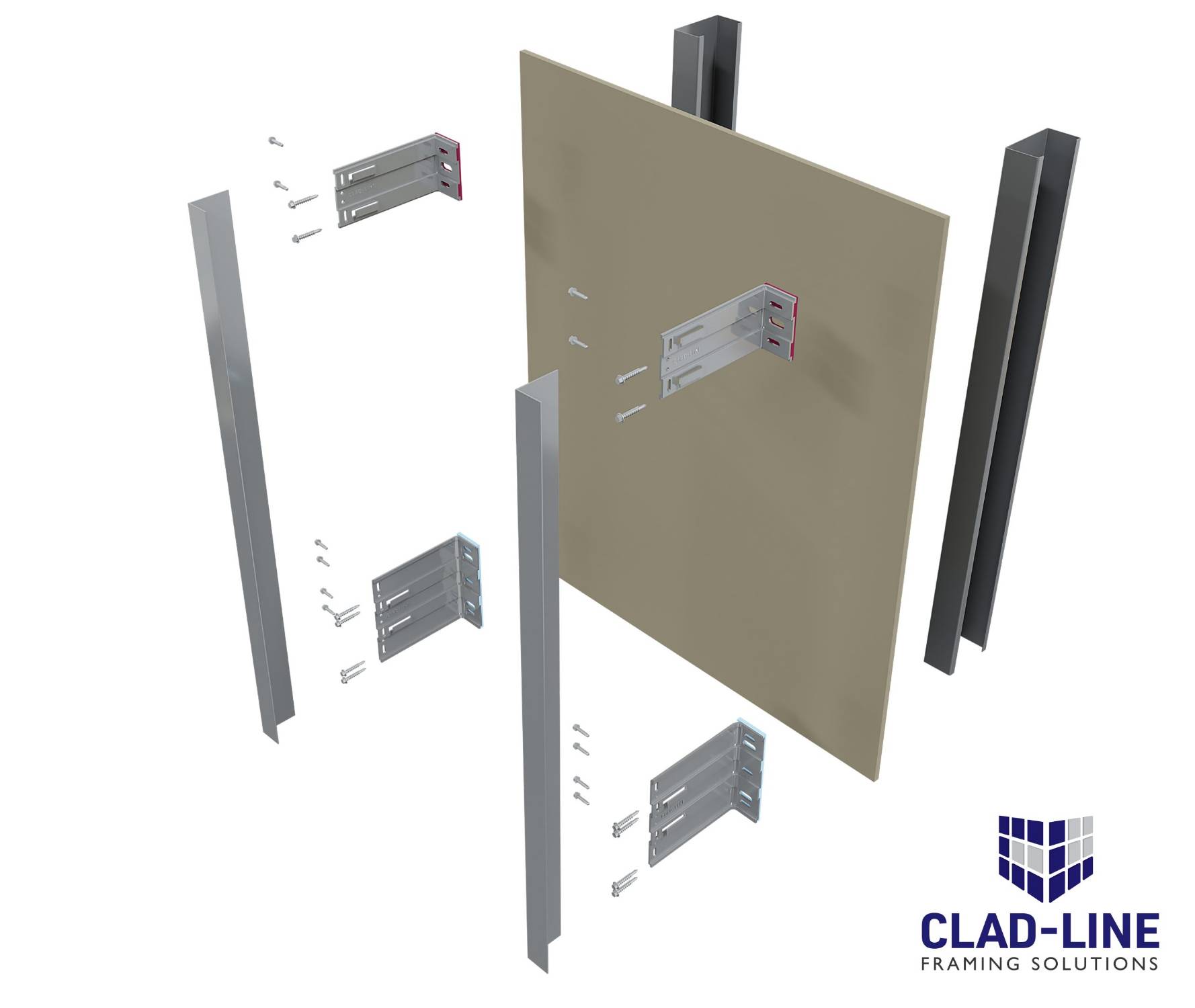

CLAD-LINE’s T and L profiled rails are fixed using the CL range of support brackets. Fixed Point (dead load) brackets are designed to absorb vertical dead loads while the Sliding Point brackets allow for expansion and contraction and designed to absorb wind loads. CLAD-LINE’s range of support brackets comes pre-fitted with a thermal isolation pad. This reduces installation time on site as well as improving the thermal performance of the bracket.


Features and benefits:

  • Lightweight
  • Durable
  • Suitable for use with metal rainscreen, Rockpanel, fibre cement, HPL and ACM
  • Non-combustible
  • Suitable for new build and refurbishment
  • Vertical cladding rails
  • Horizontal adaptor available
  • Quick and easy to install
  • Can be fixed back to both stud and masonry
  • 100% recyclable aluminium
  • Pre-fitted thermal isolator pad to brackets
  • A2 thermal pads available on request
  • Powder coated or anodized finishes available on request
  • Tested to CWCT standards.

General information

Color

Silver

Finish

Anodized

Mill

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

3000 mm

6000 mm

Width

Bespoke

Height

Bespoke

Uniclass

Pr_20_85_20_04 Aluminium carrier railsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails

Classification data

Brackets

Single Bracket 40 mm – CLSB40 45-75 mm.
Single Bracket 60 mm – CLSB60 65-95 mm.
Single Bracket 90 mm – CLSB90 95-125 mm.
Single Bracket 120 mm – CLSB120 125-155 mm.
Single Bracket 150 mm – CLSB150 155-185 mm.
Single Bracket 180 mm – CLSB180 185-215 mm.
Single Bracket 210 mm – CLSB210 215-245 mm.
Single Bracket 240 mm – CLSB240 245-275 mm.
Single Bracket 270 mm – CLSB270 275-305 mm.
Single Bracket 300 mm – CLSB300 305-335 mm.
Double Bracket 40 mm – CLDB40 45-75 mm.
Double Bracket 60 mm – CLDB60 65-95 mm.
Double Bracket 90 mm – CLDB90 95-125 mm.
Double Bracket 120 mm – CLDB120 125-155 mm.
Double Bracket 150 mm – CLDB150 155-185 mm.
Double Bracket 180 mm – CLDB180 185-215 mm.
Double Bracket 210 mm – CLDB210 215-245 mm.
Double Bracket 240 mm – CLDB240 245-275 mm.
Double Bracket 270 mm – CLDB270 275-305 mm.
Double Bracket 300 mm – CLDB300 305-335 mm.

Rails

L Rail 60 x 40 3000 mm CL1-60x40L/3000.
L Rail 60 x 40 6000 mm CL1-60x40L/6000.
T Rail 100 x 60 3000 mm CL1-100x60T/3000.
T Rail 100 x 60 6000 mm CL1-100x60T/6000.
T Rail 100 x 40 3000 mm CL1-100x40T/3000.
T Rail 100 x 40 6000 mm CL1-100x40T/6000.
T Rail 80 x 60 3000 mm CL1-80x60T/3000.
T Rail 80 x 60 6000 mm CL1-80x60T/6000.

Fixings

-

Manufacturer guidance

Insert requirements. A range of fixings are available. All fixings can be colour matched.

Accessories

Double A2 Isolator Pad [CL-DOUBLEPAD/A2].
Double Isolator Pad [CL-DOUBLEPAD].
Horizontal Adaptor 86mm [CL1-HA/86].
Single A2 Isolator Pad [CL-SINGLEPAD/A2].
Single Isolator Pad [CL-SINGLEPAD].

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Fully recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

65 %

Literature

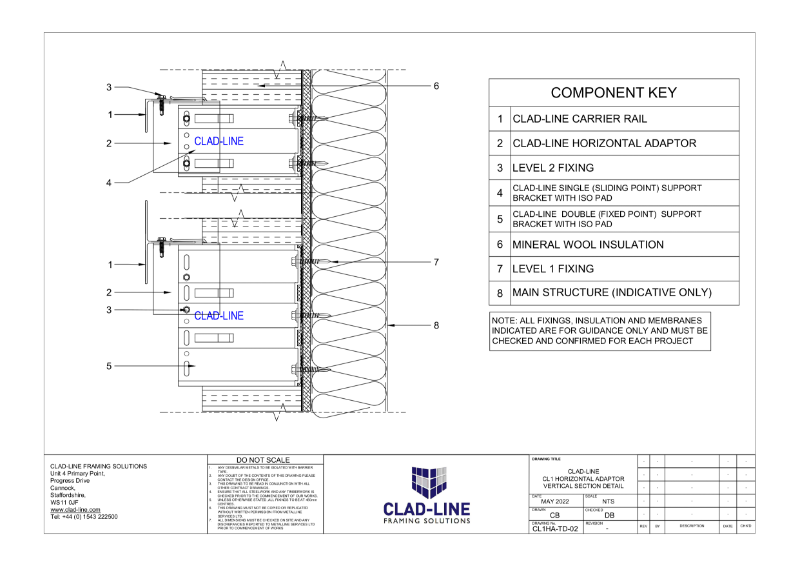

CL1 - Horizontal Section Technical Drawing

CL1 - Horizontal Section Technical Drawing

CL1 - Vertical Section Technical Drawing

CL1 - Vertical Section Technical Drawing

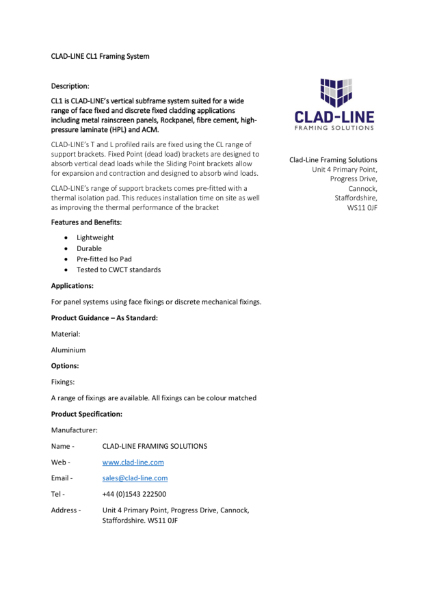

CL1 Specification Sheet

CL1 Specification Sheet

Clad-Line Framing Solutions Brochure

Clad-Line Framing Solutions Brochure
