CLAD-LINE CL2 Framing System
Verified by manufacturer over a year ago
Rainscreen framing system. For panel systems using a hook-on secret fix (dead load fixing required to top of panel).
Application
For panel systems using a hook-on secret fix (dead load fixing required to top of panel).
Description

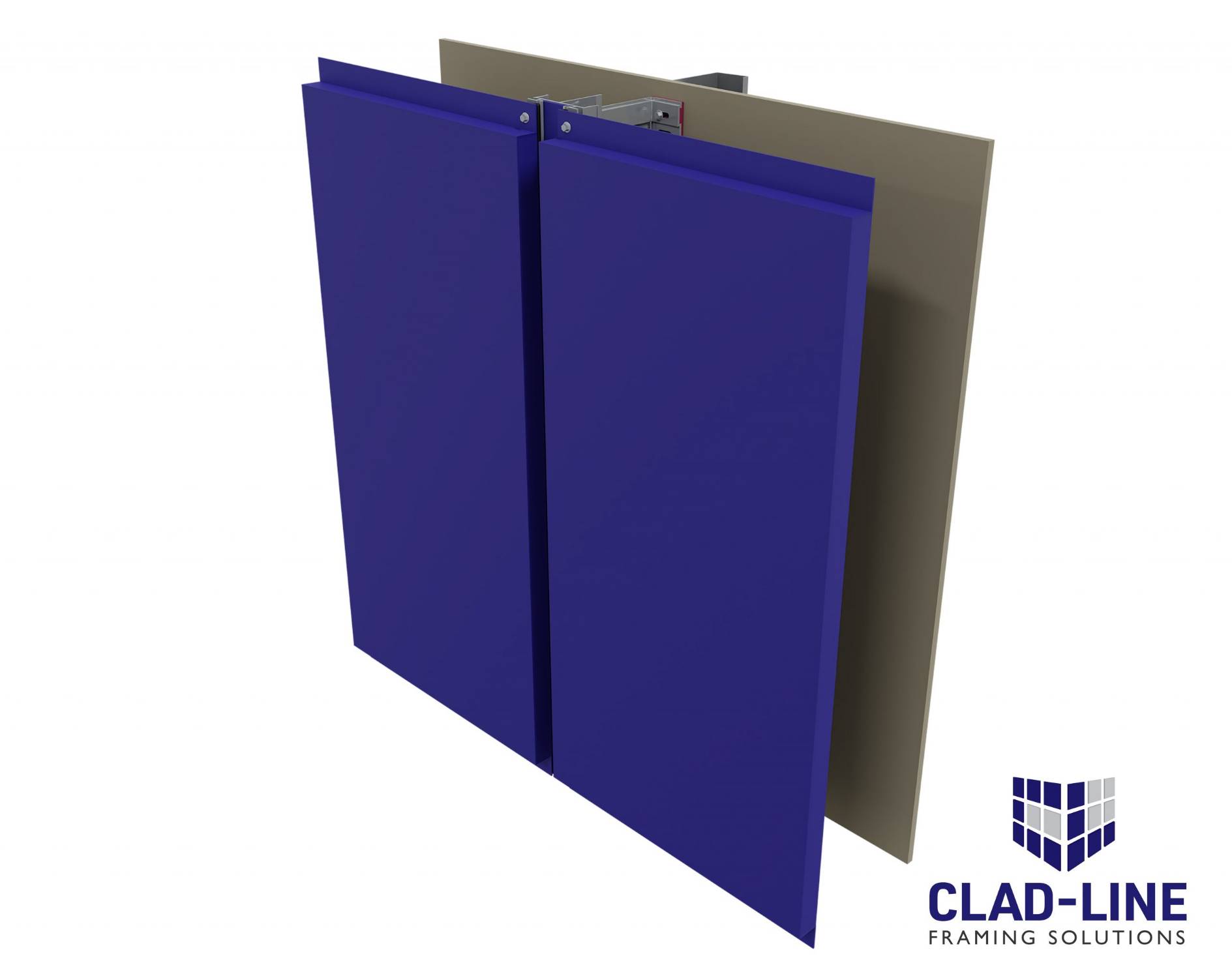

CL2 is CLAD-LINE’s subframe system suitable for supporting secret fixed cassette panels (Aluminium / Zinc / ACM). The panel is secured using specially designed cassette hangers to provide the secret fix. The CL2 rail also incorporates a robust location for the panel’s anti-uplift fixing.

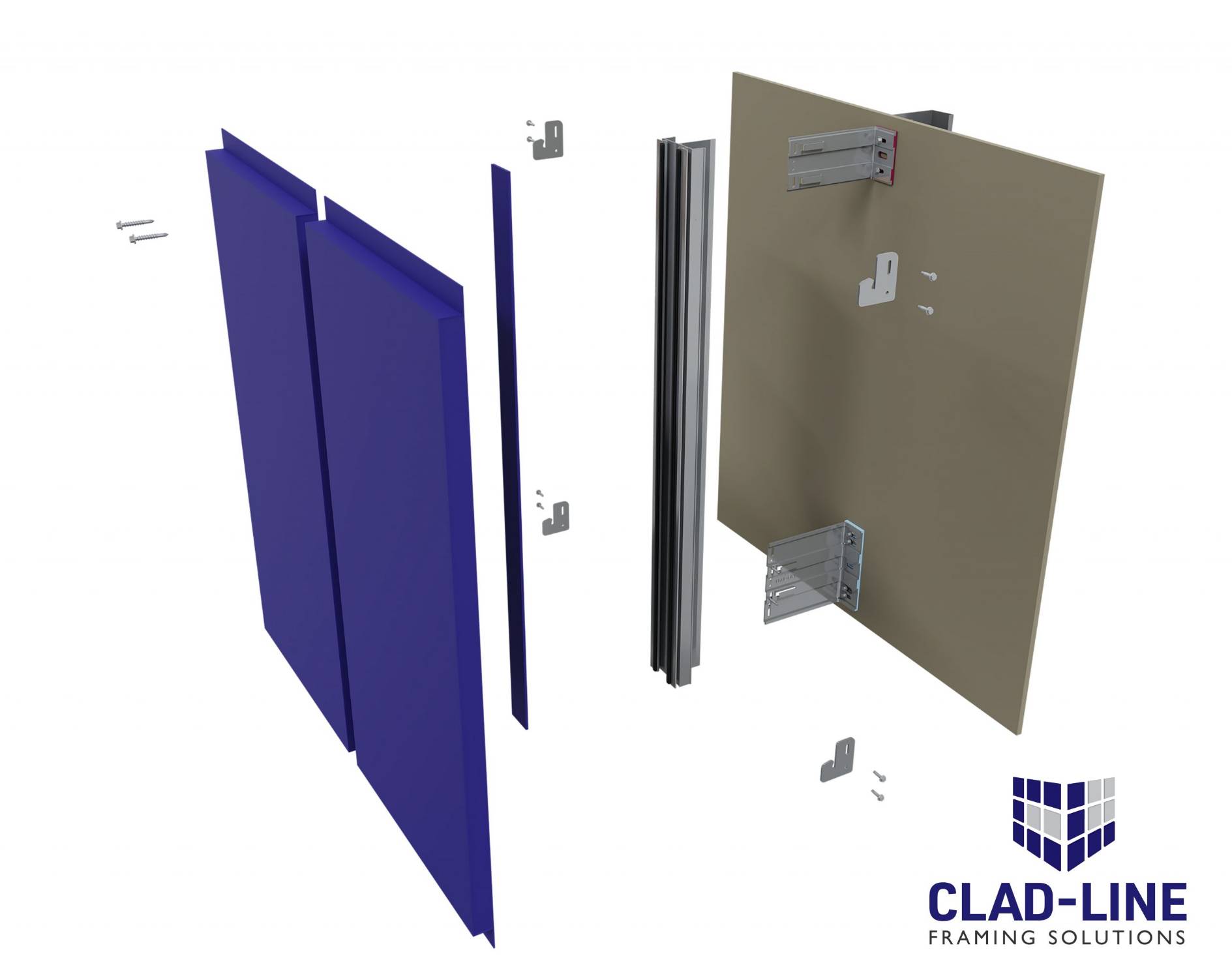

CLAD-LINE’s CL2 rails are fixed using the CL range of support brackets. Fixed Point (dead load) brackets are designed to absorb vertical dead loads while the Sliding Point brackets allow for expansion and contraction and designed to absorb wind loads. CLAD-LINE’s range of support brackets comes pre-fitted with a thermal isolation pad. This reduces installation time on site as well as improving the thermal performance of the bracket.
Features and benefits:
- Lightweight
- Durable
- Shadow joint cover plate slot
- Robust location for anti-uplift fixing
- Provides a secret fix for a metal rainscreen cassette
- Non-combustible
- Incorporates a shadow joint cover plate slot
- High strength, robust rail
- Quick and easy to install
- Can be fixed back to both stud and masonry
- Designed in conjunction with industry leading expertise
- 100% recyclable aluminium
- Pre-fitted thermal isolator pad to brackets
- A2 thermal pads available on request
- Powder coated or anodized finishes available on request
- Incorporates robust location for the panel's anti uplift fixing
General information
Color | Silver |
Finish | Anodized Mill Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | 3000 mm 6000 mm |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Aluminium carrier rails
Brackets | Single Bracket 40 mm – CLSB40 45-75 mm. Single Bracket 60 mm – CLSB60 65-95 mm. Single Bracket 90 mm – CLSB90 95-125 mm. Single Bracket 120 mm – CLSB120 125-155 mm. Single Bracket 150 mm – CLSB150 155-185 mm. |
Rails | CL2 Rail 3000 mm CL2-RAIL/3000. CL2 Rail 6000 mm CL2-RAIL/6000. |
Fixings | Manufacturer guidanceInsert requirements. A range of fixings are available. All fixings can be colour matched. |
Accessories | CL2 Hook [CL2-HOOK] CL2 Weather Gasket [CL2-WGASKET] Double A2 Isolator Pad [CL-DOUBLEPAD/A2]. Double Isolator Pad [CL-DOUBLEPAD]. Single A2 Isolator Pad [CL-SINGLEPAD/A2]. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Fully recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 65 % |
