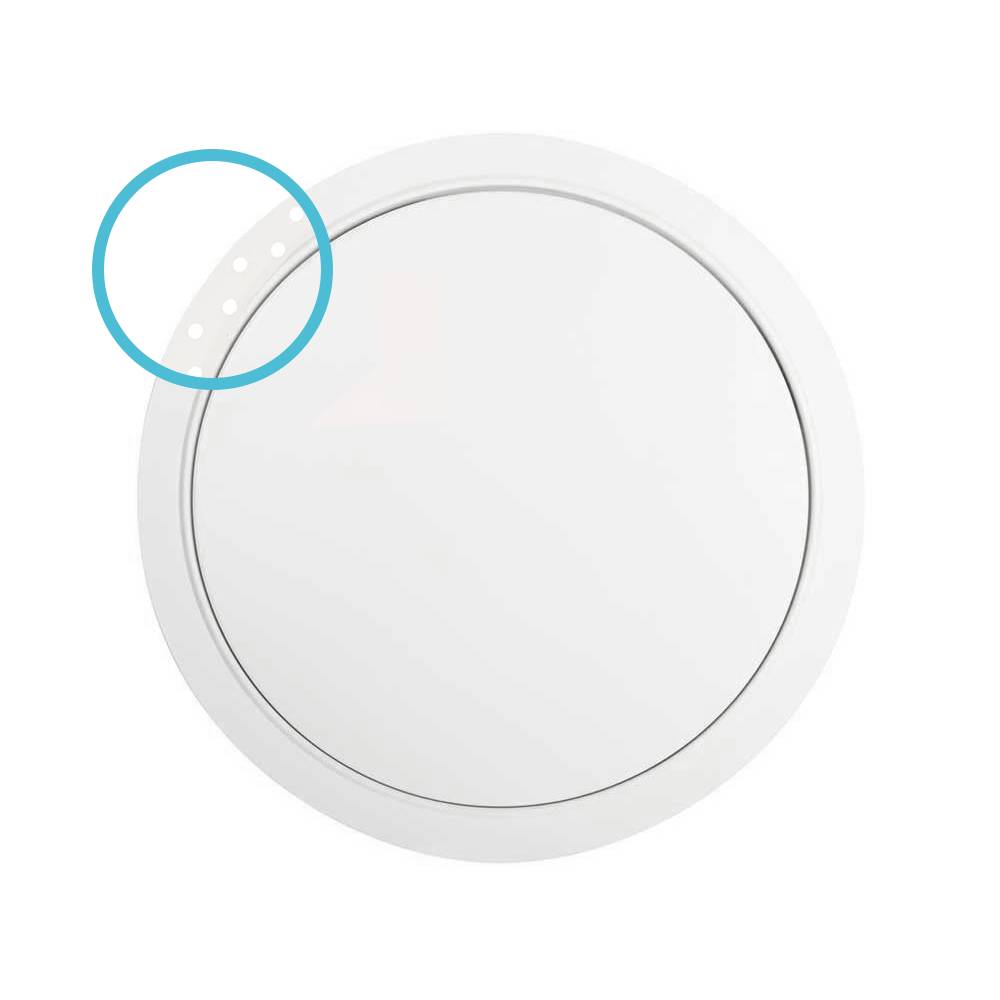

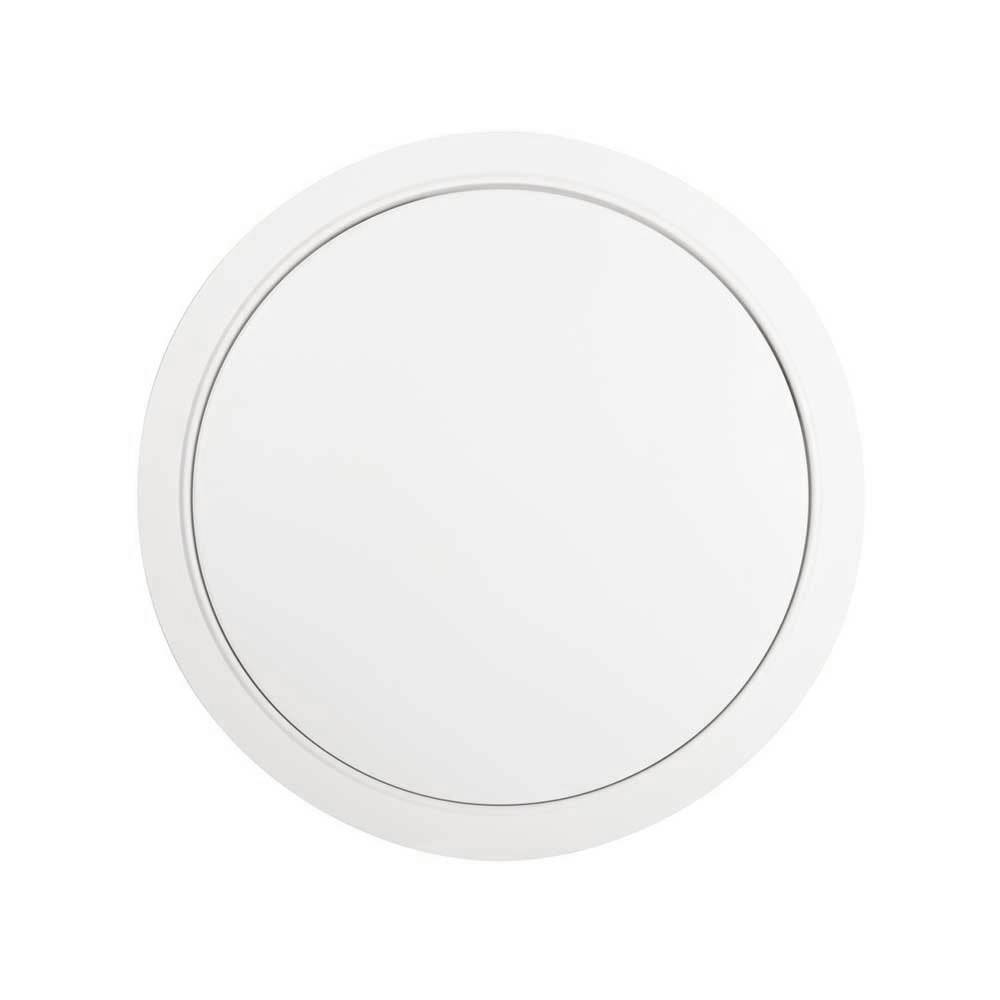

Circular Access Panels

Verified by manufacturer 5 months ago

SCAP150 - Picture Frame

Access Building Products Ltd Variant:

Circular access panel for ceiling use.

Jump to:
+44 (0)1423 874753 Website

Application

Ceiling mounted access panel.

Description

A slender, metal access panel for ceiling use. Where the weight of the removable part of the panel is significant, safety tethers can be fitted to ensure the panel lid cannot be dropped when opening.


The round access panels provide a flush finish, thanks to a concealed mounting system. The outer frame of the panel has locating pins which support the round metal inner part of the panel. To open the panel, push the inner slightly into the frame and twist anti-clockwise. To re-fit the inner part of the access panel, locate the pins with the inner, offer up and turn clockwise.


Features and benefits:

  • Easy to fit and easy to open.
  • Powder-coated in White RAL 9010.
  • Available with picture frame or beaded frame.
  • Available in five sizes.
  • Slim profile steel access panels.
  • Concealed fixings/ mounts.
  • For ceiling use.

General information

Color

White

Finish

Powder-coated

Material

Steel

Shape

Circle

Length

150 mm

200 mm

300 mm

450 mm

600 mm

Show more

Width

150 mm

200 mm

300 mm

450 mm

600 mm

Show more

Height

25 mm

30 mm

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

L20/630 Hatches

K10/430 Access panels

Specification data - Access panels

Position

Ceiling-mounted.

Size

∅150 mm.

Frame

Exposed picture frame type.

Panel

-

Material

Steel.

Integral finish

Powder-coated.

Operation

Push the inner slightly into the frame and twist anti-clockwise.

Guidance for specification option:

To re-fit the inner part of the access panel locate the pins with the inner, offer up and turn clockwise.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Structural opening size

155 mm.

Clear opening

120 mm.

Manufacturer guidance

Once installed.

Depth

25 mm.

Weight

0.2 kg.

Colour

Pure white, RAL 9010.

Sustainability data

Contains Red List materials

No

Country of material origin

Turkey

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

BIM objects

Platform Compatible Version
Revit
-

1

Literature

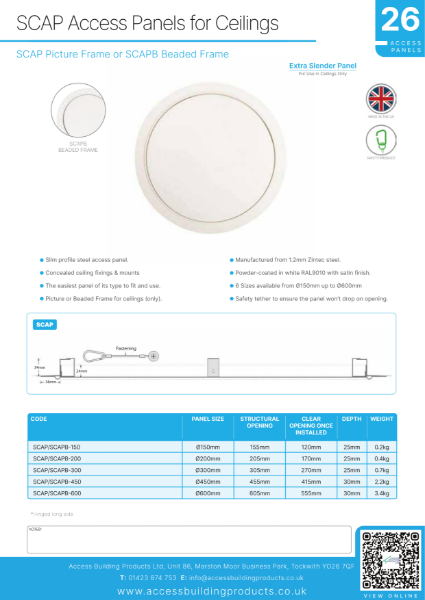

SCAP Access Panels for Ceilings

SCAP Access Panels for Ceilings

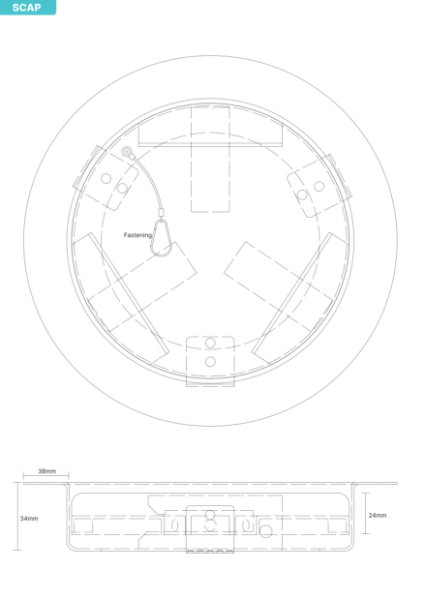

SCAP Tech

SCAP Tech
