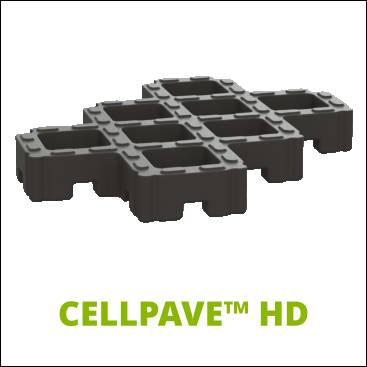

CellPave™ HD - Truck-Grade, Heavy-Duty Paving System

Verified by manufacturer 1 day ago

Green-Tech

Truck-grade, heavy-duty paving system made from 100% recycled UK sourced post-industrial polymers.

Jump to:
Request BIM
+44 (0)1423 332114 Website

Application

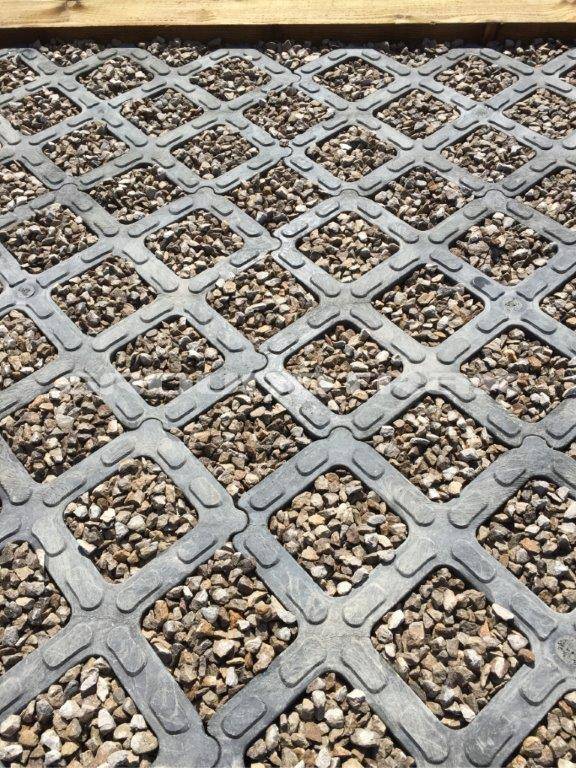

Designed to be installed with both gravel and grassed infills

Particularly suitable for incorporation into a SuDS-compliant system and may even negate the need for water attenuation when installed on a suitable porous substrate.

Suitable for use on large scale civil engineering compound areas or contractor’s storage areas as they can easily be uplifted at the end of the contract and re-used if required.

Can be installed for use with all forms of traffic including:

  • HGV and coach parking areas.
  • Emergency vehicle and fire access routes.
  • Highway verge reinforcement (particularly where HGV overrun can occur).
  • Fork lift loading areas.

Description

Truck-grade, heavy-duty paving system made from 100% recycled UK sourced post-industrial polymers.

Designed to be installed with both gravel and grassed infills. Particularly suitable for incorporation into a SuDS-compliant system and may even negate the need for water attenuation when installed on a suitable porous substrate.

Suitable for use on large scale civil engineering compound areas or contractor’s storage areas as they can easily be uplifted at the end of the contract and re-used if required and is an economical alternative to Grasscrete.

Features and benefits:

  • Made in the UK; can be recycled at the end of life if required.
  • High load capacity: tested and certified by Lloyds British to 40 tonne per wheel (800 tonnes/m²).
  • High void area to encourage healthy grass growth.
  • Each paver is 600 x 400 x 75 mm (4.17 pavers per square metre).
  • Lightweight and easy to install - weighing 8 kg each (33 kg/m²) they fall well within the HSE manual handling limits and are quick and easy to install.
  • The exclusive design allows interlocking stacking on pallets, resulting in reduced shipping costs.
  • Flexible, so will not crack in adverse conditions.
  • Insulating properties minimize grass ‘burn off’ in high temperatures.
  • No specialist tools or equipment needed for installation.
  • Harmless to plants and animals.

General information

Color

Grey

Finish

Anti-slip

Material

Plastic

Recycled plastic

Shape

Rectangle

Length

600 mm

Guidance for specification option:

Per paver.

Width

400 mm

Guidance for specification option:

Per paver.

Height

75 mm

Uniclass

Pr_25_93_60_61 Plastics cellular paversPrimary

CAWS

Q25/62 Plastics pavers

Q25/350 Plastics pavers

Specification data - Plastics cellular pavers

Classification data

Physical properties

-

Material

Recycled plastics.

Guidance for specification option:

100% recycled post-industrial polymers.

Colour

Dark grey.

Top surface finish

Embossed grip surface.

Profile

-

Paver type

Offset plan form, rectangular.

Interlocking features

Manufacturer's standard.

Dimensions

-

Plan size

600 x 400 mm.

Guidance for specification option:

4.17 pavers per m².

Thickness (minimum)

75 mm.

Guidance for specification option:

From top of grip surface.

Load-carrying capacity (minimum)

Tested and certified by Lloyds British to 40 tonnes individual wheel load, equivalent to 800 tonnes/m².

Environmental performance requirements

-

Recycled content (minimum)

100%.

Weight

33 kg/m² (8 kg per paver).

Cell Size

Square, 104 x 104 mm (internal), 35 mm wall thickness.

Sustainability data

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Plastic
Recycled plastic

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Literature

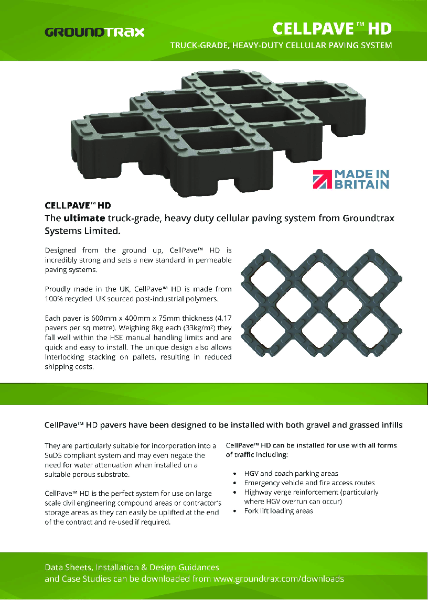

CellPave™ HD - Product Data

CellPave™ HD - Product Data

CellPave-AP-Installation-Guide-Rev-3

CellPave-AP-Installation-Guide-Rev-3

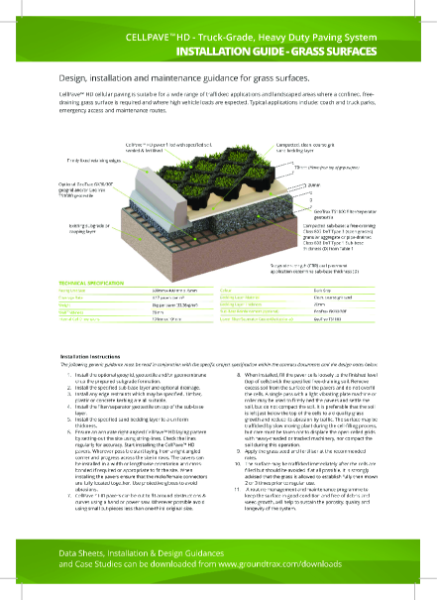

CellPave HD - Install Guide (Grass) Rev 2.0

CellPave HD - Install Guide (Grass) Rev 2.0

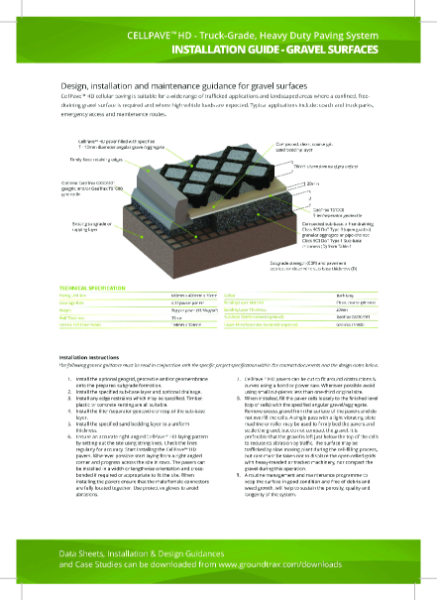

CellPave-HD-Install-Guide-Gravel-Rev-3.0

CellPave-HD-Install-Guide-Gravel-Rev-3.0

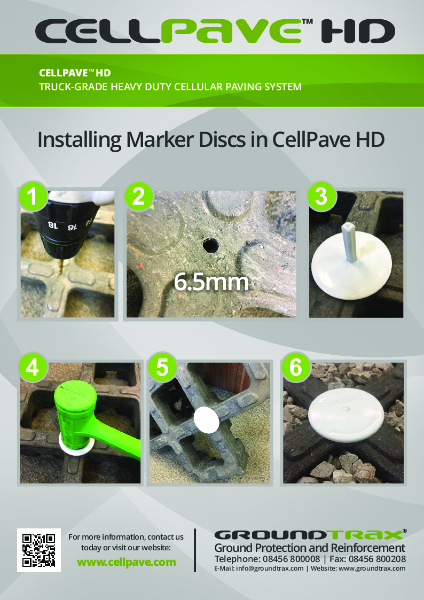

CellPave_HD_-_Installing_Markers

CellPave_HD_-_Installing_Markers

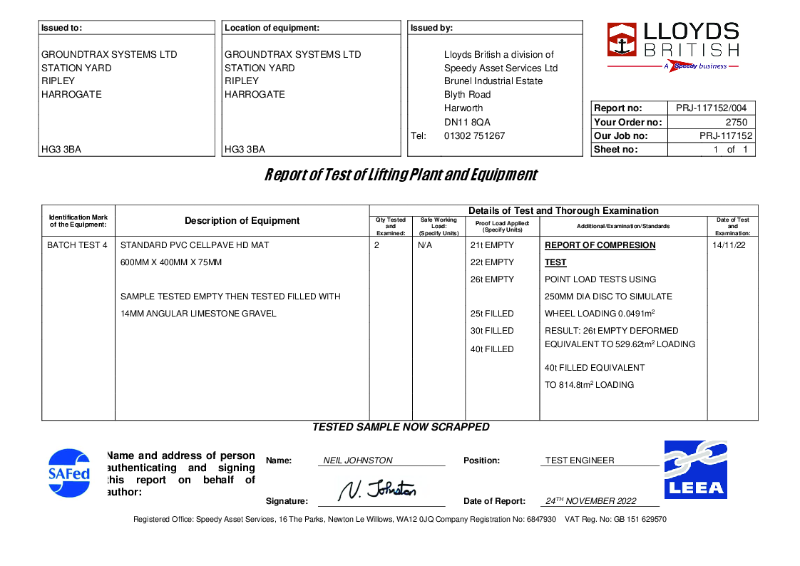

Lloyds-Test-Certificate-Cellpave-HD-Nov-22

Lloyds-Test-Certificate-Cellpave-HD-Nov-22

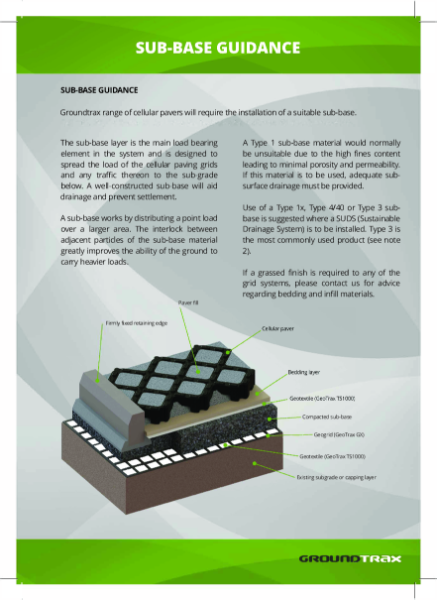

Sub-Base-Guidance-Rev-4.

Sub-Base-Guidance-Rev-4.

Case studies

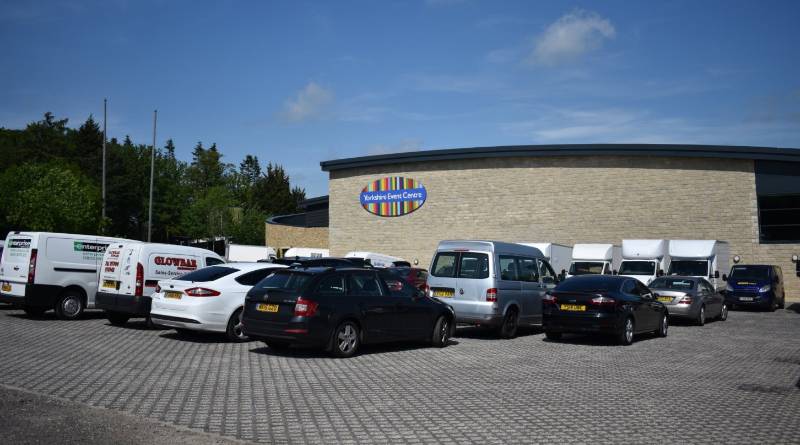

Yorkshire Event Centre Car Parking
