CellPave™ 50 - Interlocking Cellular Paving Grid System
Verified by manufacturer 2 days ago

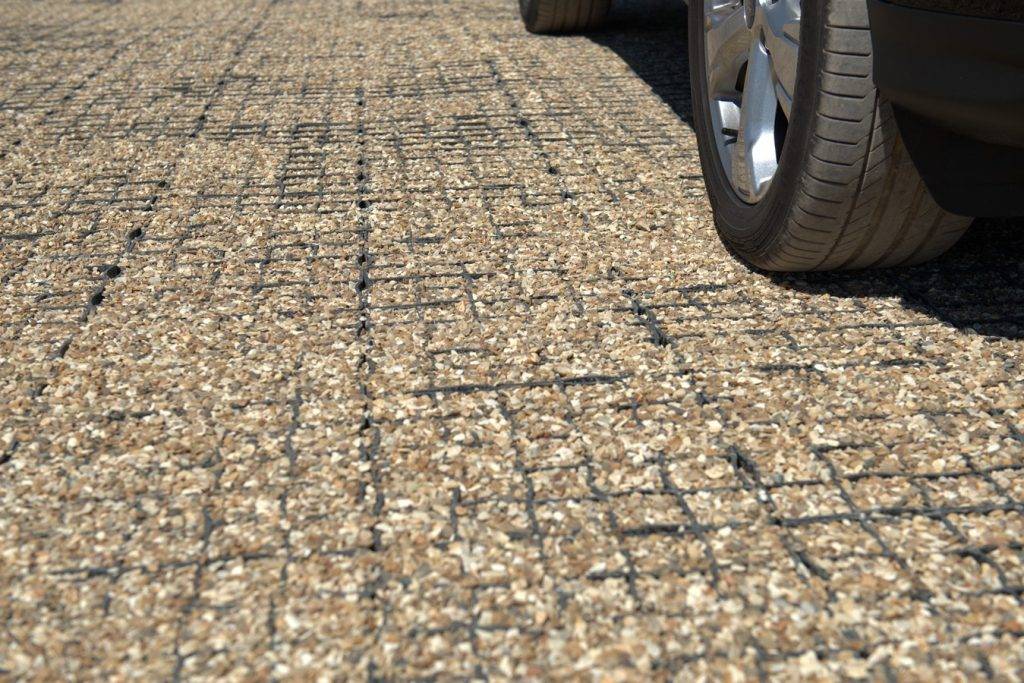

CellPave 50 is an interlocking cellular paving grid system that can be infilled with either a gravel or grassed finish.
Application
For grass and ground reinforcement applications such as:
- Commercial parking areas (inc. coaches);
- Access roads and fire access routes;
- Aircraft taxiways and helipads;
- Pedestrian pathways;
- Embankments and shoreline reinforcement;
- Erosion protection.
Can be used as part of a sustainable urban drainage system (SuDS).
Description

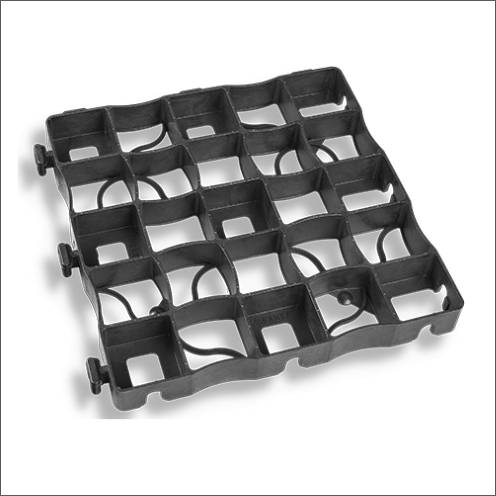

CellPave 50 is an interlocking cellular paving grid system that can be infilled with either a gravel or grassed finish.
Features and benefits:
- One of the heaviest paving grids in its class.
- Optimal surface load distribution.
- High strength construction.
- Extremely simple and quick to install.
- Hooks together easily with foot pressure.
- Pre-assembled at 1.3 m² (12 grids/ layer).
- Anti-slip nodules on top/bottom.
- UV resistant and weatherproof.
- Resistant to exhaust, diesel fuel, petrol, oil, leaching, de-icing salt, alcohol, organic solvents, ammonia, urine and many other substances.
- Long service life.
General information
Color | Black |
Finish | Textured |
Material | Low density polyethylene (LDPE) |
Shape | Square |
Length | 330 mm Guidance for specification option: Per grid. |
Width | 330 mm Guidance for specification option: Per tile (supplied in square metres). |
Height | 50 mm |
Uniclass | |
CAWS | Q25/62 Plastics pavers Q25/350 Plastics pavers |
Specification data - Plastics cellular pavers
Classification data | |
Physical properties | |
Material | Recycled LDPE. |
Colour | Black. |
Top surface finish | Pimpled surface. |
Profile | |
Paver type | Regular plan form, square. |
Interlocking features | Lugs. |
Dimensions | |
Plan size | 330 x 330 mm. Guidance for specification option: Per grid (nine grids = 1 m²). |
Thickness (minimum) | 50 mm. |
Load-carrying capacity (minimum) | 175 tonne/m². Guidance for specification option: Unfilled grids on stable ground. |
Environmental performance requirements | |
Recycled content (minimum) | 100%. |
Weight | 8.65 kg/m². |
Cell Size | Square, 5 mm wall thickness. |
Accessories | White delineators (square). Guidance for specification option: One per cell; consult manufacturer and insert required numbers. Not required. |
Service temperature range | -50 to +90°C. Guidance for specification option: 13% shape change when temperature increases to +80°C. |
Sustainability data
Material | Low density polyethylene (LDPE) |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Literature type

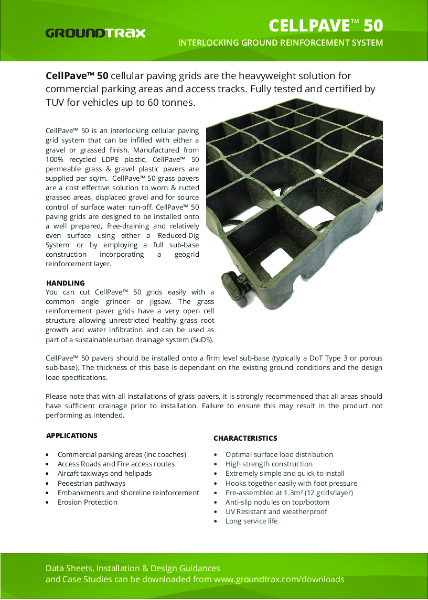

CellPave™ 50 Product Data

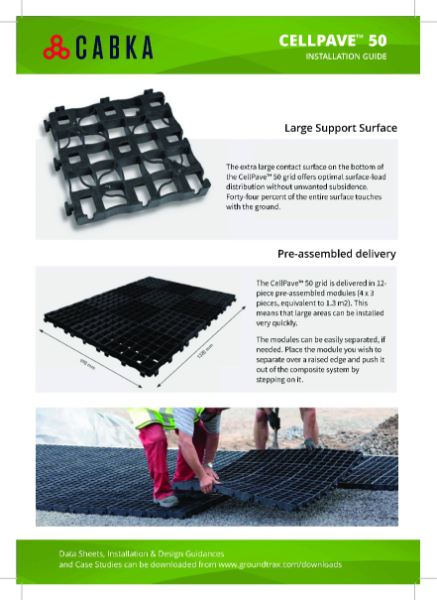

CellPave 50 - Install Guide Rev 2.0
Sub-Base-Guidance-Rev-4
