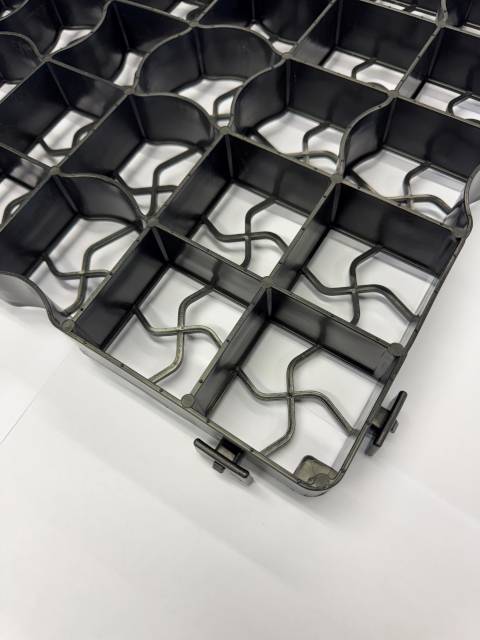

CellPave™ GT40 - Interlocking Cellular Paving Grid
Verified by manufacturer 24 days ago
Interlocking cellular paving system manufactured in the UK from UV-stabilized, 100% recycled and recyclable polyethylene.
Application
SuDS compliant porous plastic paving grid system for ground reinforcement which can be installed with a gravel fill.
Typical uses include:
- Car and light vehicle carparks;
- Walkways, disabled access routes and golf buggy paths;
- Sustainable urban drainage solution (SUDS) – source control.
Description
Interlocking cellular paving system manufactured in the UK from UV-stabilized, 100% recycled and recyclable polyethylene.
Features and benefits:
- Cell wall topped anti-slip nodules, giving added vehicle wheel grip and importantly pedestrian grip for shoes on the top surface.
- Each grid side has u-groove male to female fixings to create a strong attachment for easy grid to grid connection.
- The 7 × 7 rows of grid cells is manufacturer's proven ideal grid formation for ground reinforcement to be the most effective.
- Infill with an angular gravel for maximum load bearing capacity within the range 5 to 20 mm.
- 95% permeable and complies with SuDS (sustainable urban drainage regulations).
- Compression tested by Lloyds British to 810 tonnes/m² on gravel-filled load test rating. Suitable for domestic and industrial use applications. Complies with the flood and water management act 2010.
- UV stable recycled injection moulded plastic.
General information
Color | Black |
Finish | Anti-slip |
Material | Polyethylene |
Shape | Square |
Length | 500 mm |
Width | 500 mm |
Height | 40 mm |
Uniclass | |
CAWS | Q25/62 Plastics pavers Q25/350 Plastics pavers |
Specification data - Plastics cellular pavers
Classification data | |
Physical properties | |
Material | Recycled polyethylene. |
Colour | Black. |
Top surface finish | Pimpled surface. Guidance for specification option: Anti-slip. |
Profile | |
Paver type | Regular plan form, square. |
Interlocking features | Three integrated push-fit locks per side. |
Dimensions | |
Plan size | 500 x 500 mm. |
Thickness (minimum) | 40 mm. |
Load-carrying capacity (minimum) | 386 tonne/m². Guidance for specification option: Empty. Over 810 tonnes/m² when filled with an angular gravel. Manufacturer guidanceTested and certified by Lloyds British. |
Environmental performance requirements | |
Recycled content (minimum) | 100%. |
Weight | 4.5 kg/m². |
Cell Size | Square 68 x 68 mm, 3 mm cell wall thickness. |
Accessories | Square, white delineators. Guidance for specification option: Consult manufacturer and insert required numbers. Not required. |
Service temperature range | -50 to +90°C. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Polyethylene |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Literature type

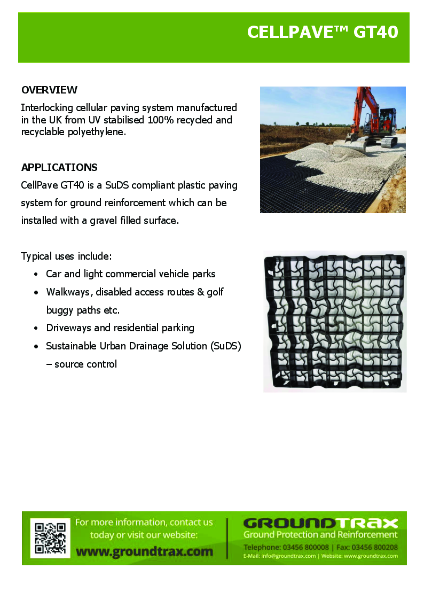

CellPave™ GT40 - Product Data

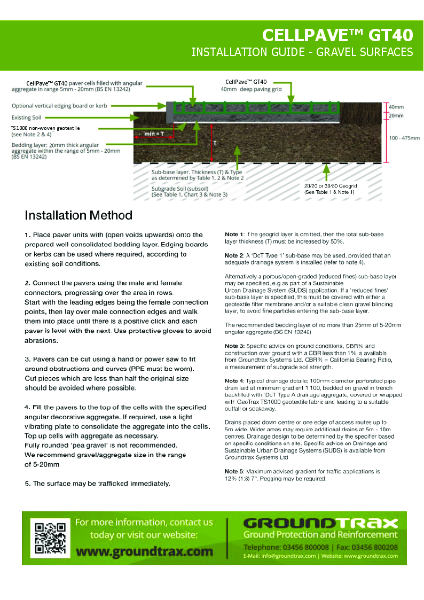

CellPave-GT40-Installation-Guide

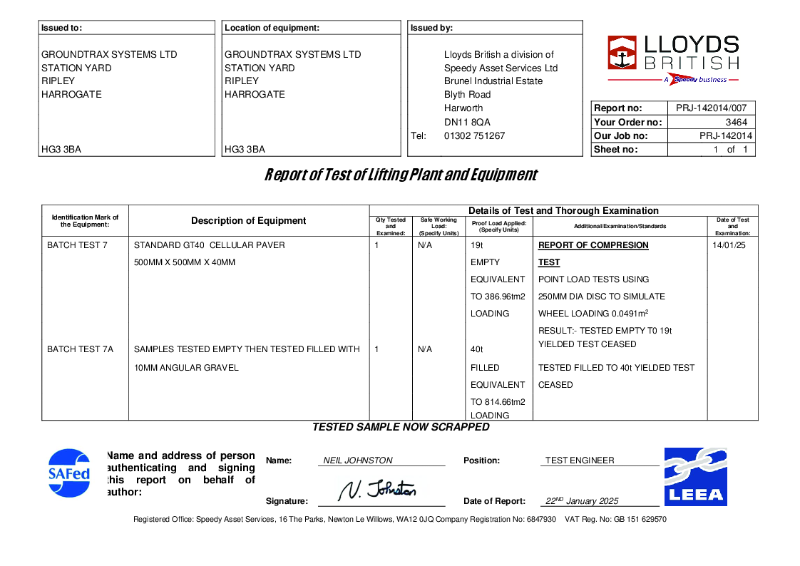

Lloyds-British-Certificate-CellPave-GT40-January-2025

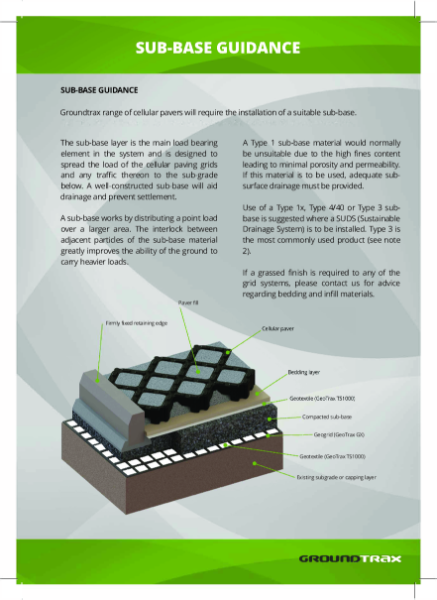

Sub-Base-Guidance-Rev-4.0 GT40
