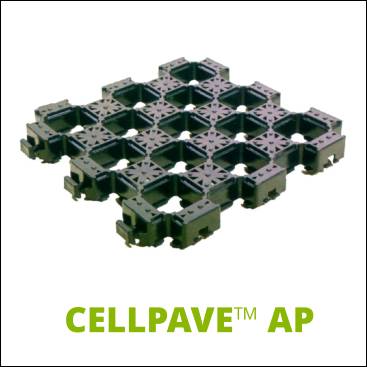

CellPave™ AP - Anchored Ground Reinforcement Paver

Verified by manufacturer 1 day ago

Green-Tech

A ‘no-dig’ anchored ground reinforcement paving tile.

Jump to:
Request BIM
+44 (0)1423 332114 Website

Application

  • Green parking areas.
  • Emergency vehicle access.
  • Temporary and permanent roadways.
  • Road protection.
  • Embankments.
  • Driveways.
  • Tree beds.
  • Golf walkways.
  • Caravan parking.
  • Hard standing storage areas.

Description

A ‘no-dig’ anchored ground reinforcement paving tile. Simple and easy to install, CellPave AP tiles can be placed in existing grass areas using a vibratory roller.

Features and benefits:

  • Resistant to most aggressive substances.
  • Grass grows back through the tile, preserving the character of the environment.
  • Tiles allow water to pass through them.
  • Natural drainage maintained.
  • No splintering or risk of injury.
  • Planning permission not required for most applications.
  • No special tooling or skills required for installation.
  • Easy to install yourself in a very short time.
  • Tiles can usually be rolled into unprepared soft grass surface.
  • Can be removed later, if required.
  • Low cost when compared to alternative options.
  • Normally requires no excavation, unlike most other grass reinforcement products.
  • Robust clip system.
  • Simple ‘snap-in’ markers available.
  • UV, frost, oil and salt resistant.

General information

Color

Black

Finish

Anti-slip

Material

Recycled plastic

Plastic

Shape

Square

Length

302 mm

Width

302 mm

Height

37 mm

Uniclass

Pr_25_93_60_61 Plastics cellular paversPrimary

CAWS

Q25/62 Plastics pavers

Q25/350 Plastics pavers

Specification data - Plastics cellular pavers

Classification data

Physical properties

-

Material

Recycled plastics.

Guidance for specification option:

Polyethylene (PE)/ polypropylene (PP).

Colour

Black.

Top surface finish

Raised points for grip.

Profile

-

Paver type

Regular plan form, square.

Interlocking features

Edge loops and tabs..

Dimensions

-

Plan size

302 x 302 mm.

Guidance for specification option:

Excluding connecting lugs.

Thickness (minimum)

37 mm.

Load-carrying capacity (minimum)

Up to 160 tonne/m².

Guidance for specification option:

Depending on ground conditions and preparation; consult manufacturer for details.

Environmental performance requirements

-

Recycled content (minimum)

100%.

Weight

6.2 kg/m²; 0.55 kg per paver.

Cell Size

Square, 5 mm cell wall thickness.

Accessories

'Snap-in' markers.

Guidance for specification option:

Consult manufacturer and insert required numbers.

Not required.

Technical characteristics, other

UV, frost, oil and salt resistant.

Sustainability data

Country of product manufacture

United Kingdom

Material

Recycled plastic
Plastic

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Literature

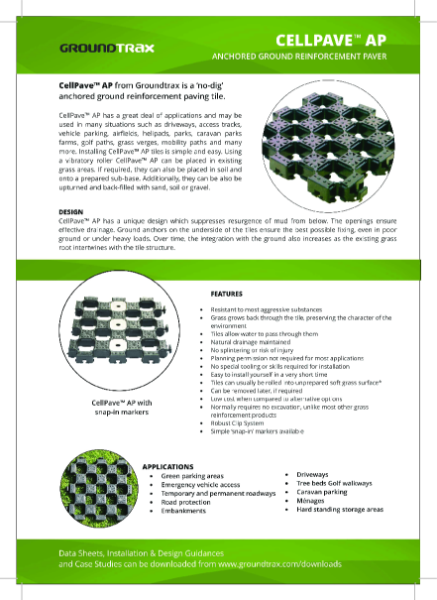

CellPave™ AP - Product Data

CellPave™ AP - Product Data

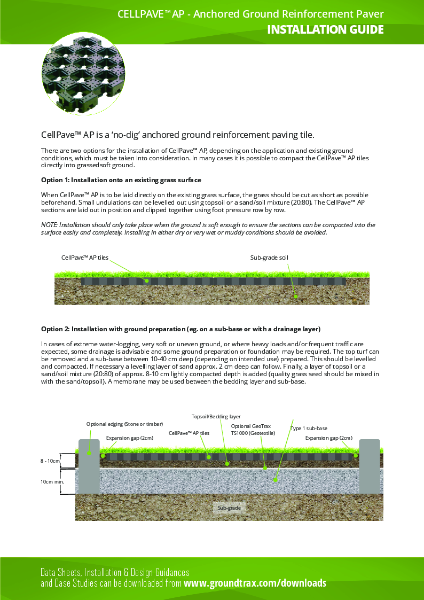

CellPave-AP-Installation-Guide-Rev-3.0

CellPave-AP-Installation-Guide-Rev-3.0

Case studies

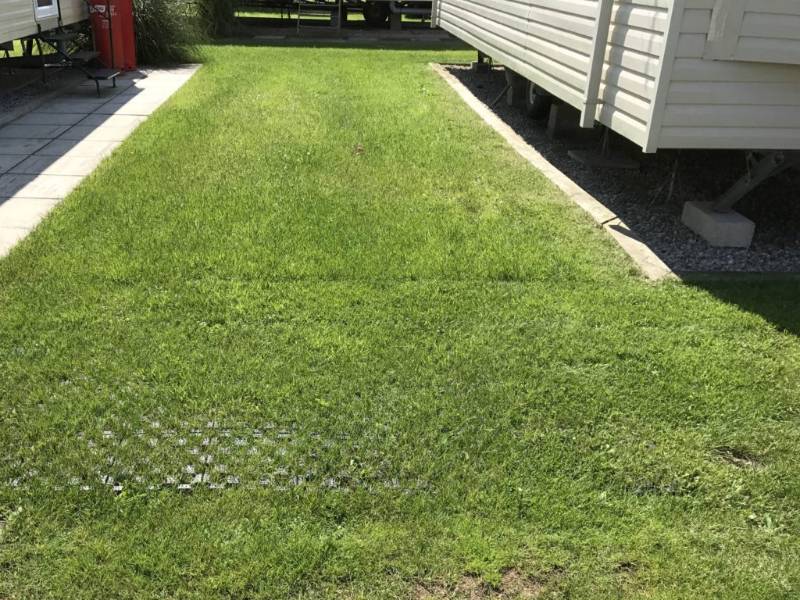

Surf Bay Holiday Park, Devon
