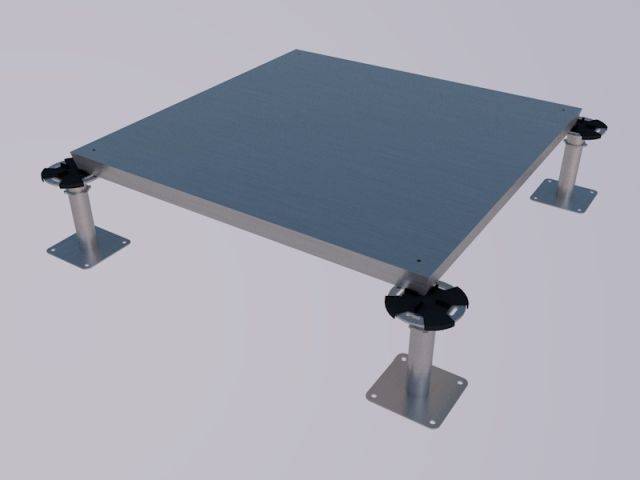

BGM600S - PSA Medium Grade Screw down Steel Encapsulated Panel - Raised Access Floor Panel
Verified by manufacturer 1 month ago
Access Flooring, Medium Grade, screw-down, steel-encapsulated panel.
Application
Internal, Commercial, Office, access flooring panel. Suitable to be overlaid with finishes such as loose-laid carpet tiles.
Description
Raised Access Flooring, Medium Grade, screw-down panel, consisting of a high-grade, FSC®-certified, 30 mm thick, high-density particle board core with a steel top lid and bottom tray, all pressed together to make a fully steel-encapsulated 600 mm² panel.
The panel is fully tested by an independent, UKAS-accredited laboratory to the PSA MOB PF2 PS/SPU March 1992 Medium Grade specification, and is certified as being fully compliant.
Features and benefits:
- FSC®-certified.
- Includes pre-drilled holes for screw-fixing with complete electrical continuity.
- Provides added stability and security as the void is inaccessible without specialist tools.
- Dimensionally accurate +/- 0.5mm
- High resistance to damage.
- Manufactured in the UK.
- EPD Certified.
General information
Color | Grey Silver |
Finish | Galvanized |
Material | Steel Guidance for specification option: Top lid and bottom tray. Particleboard |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Height | 31 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Raised access floor K41/315 Floor panels K41/315 Floor panels |
Specification data - Raised access floor panels
Casing | |
Material | Steel. |
Factory finishes | Galvanized. |
Core | HD particleboard. |
Panel size | 600 x 600 x 31 mm.Manufacturer guidanceWidth x length x height. |
Dimensional deviations | To MOB PF2 PS/SPU.Guidance for specification option: Medium grade. |
Weight (maximum) | 33 kg/m². |
Panel fixing | Screw-fixed. |
Colour | Natural. |
Loading | Load over: 4.5 kN (300 x 300 mm); Point load:3 kN (25 x 25 mm); Working load safety factor: 3x; Uniform distributed load: 8 kN/m². |
SurfaceSpreadOfFlame | Class 0. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 7.67 kg CO₂ eq/kg Self declared |
Recyclability | 100 Guidance for specification option: Nominal loss of glue product Manufacturer guidanceSteel and Wood to be separated before recycling |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 83.02 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
BGM600S Datasheet
