BGM600 - PSA Medium Grade Gravity Lay Steel Encapsulated Panel - Raised Access Floor Panel
Verified by manufacturer 1 month ago
EPD
Certificate type
Raised Access Floor Panel, Medium Grade, gravity-laid, steel-encapsulated panel.
Application
Internal, Commercial, Office, Access floor panel. Suitable to be overlaid with finishes such as loose laid carpet tile.
Description
Medium Grade, gravity-laid panel. Consisting of a high grade, FSC®-certified, 30 mm thick, high-density particleboard core with a steel top lid and bottom tray, all pressed together to make a fully steel-encapsulated 600 mm² panel.
The panel is fully tested by an independent, UKAS-accredited laboratory to the PSA MOB PF2 PS/SPU March 1992 Medium Grade specification, and is certified as being fully compliant.
Features and benefits:
- FSC® certified.
- Extremely dimensionally accurate +/- 0.5mm
- Designed to be loose-laid with complete electrical continuity.
- High resistance to damage.
- Manufactured in the UK.
- EPD Certification
General information
Color | Silver Grey |
Finish | Galvanized |
Material | Steel Guidance for specification option: Top lid and bottom tray. Particleboard |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Height | 31 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/315 Floor panels K41/130 Raised access floor K41/130 Raised access floor K41/315 Floor panels |
Specification data - Raised access floor panels
Casing | |
Material | Steel. |
Factory finishes | Galvanized. |
Core | HD particleboard. |
Panel size | 600 x 600 x 31 mm.Manufacturer guidanceWidth x length x height. |
Dimensional deviations | To MOB PF2 PS/SPU.Guidance for specification option: Medium grade. |
Weight (maximum) | 33 kg/m². |
Panel fixing | Gravity laid. |
Colour | Natural. |
Loading | Load over: 4.5 kN (300 x 300 mm); Point load: 3 kN (25 x 25 mm); Working load safety factor: 3x; Uniform distributed load: 8 kN/m². |
SurfaceSpreadOfFlame | Class 0. |
Sustainability data
Country of material origin | Germany Guidance for specification option: particleboard Manufacturer guidanceFor Steel see manufacturer |
Country of product manufacture | United Kingdom |
Recyclability | 100 Guidance for specification option: nominal loss of glue Manufacturer guidancesteel and wood to be separated for recycling |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 83.02 % |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
EPD

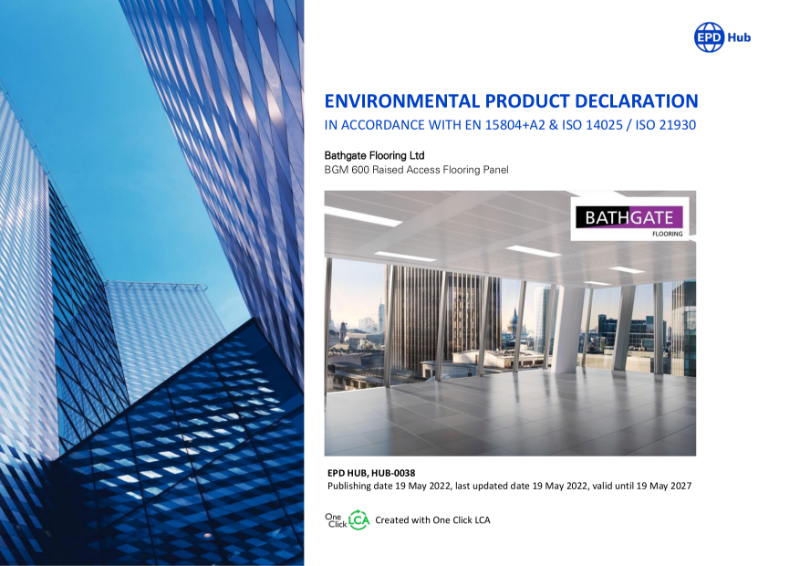

BGM600 EPD Declaration
Literature
BGM600 & BGH600 Datasheet
