BG3S - BSEN Class 3 Screw down Steel Encapsulated Panel - Raised Access Floor Panel
Verified by manufacturer 1 month ago
EPD
Certificate type
Access Flooring Panel. Screw-down, steel-encapsulated panel.
Application
Internal, Commercial, Office, floor panel suitable to be overlaid with finishes such as loose-laid carpet tile.
Description

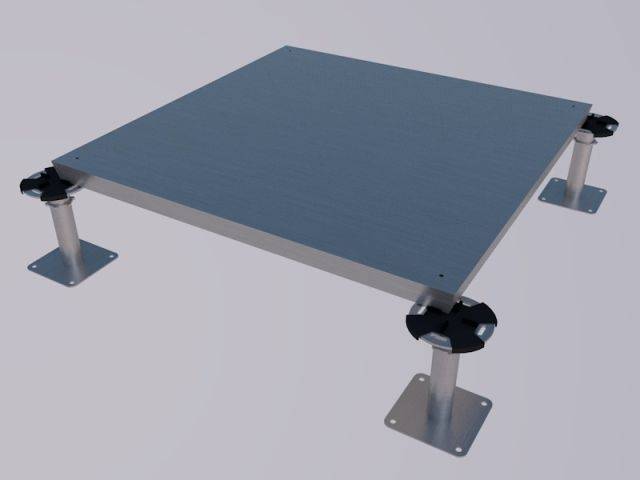

Raised access flooring screw-down panel, consisting of a high-grade, FSC® certified, 30 mm thick, high-density particle board core, with a steel top lid and bottom tray all pressed together to make a fully steel encapsulated 600 mm² panel.
The panel has been fully tested to the BS EN 12825:2001 3/A/3/2 specification and is fully compliant.
Features and benefits:
- FSC® certified.
- Includes pre-drilled holes for screw-fixing, with complete electrical continuity.
- Provides added stability and security as the void is inaccessible without specialist tools.
- Dimensionally accurate +/- 0.5mm
- High resistance to damage.
- Manufactured in the UK.
General information
Color | Silver Grey |
Finish | Galvanized |
Material | Steel Guidance for specification option: Top lid and bottom tray. Particleboard |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Height | 31 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/315 Floor panels K41/130 Raised access floor K41/130 Raised access floor K41/315 Floor panels |
Specification data - Raised access floor panels
Casing | |
Material | Steel. |
Factory finishes | Galvanized. |
Core | HD particleboard. |
Panel size | 600 x 600 x 31 mm.Manufacturer guidanceWidth x length x height. |
Dimensional deviations | To BS EN 12825 Class 3.Guidance for specification option: 3/A/3/2. |
Weight (maximum) | 33 kg/m². |
Panel fixing | Screw fixed. |
Colour | Natural. |
Loading | Working load safety factor: 3x; Uniform distributed load: >8 kN/m². |
SurfaceSpreadOfFlame | Class 0. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 7.99 kg CO₂ eq/unit |
Recyclability | 100 Guidance for specification option: nominal loss of glue Manufacturer guidancewood and steel to be separated for recycling |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 83.02 % |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
EPD

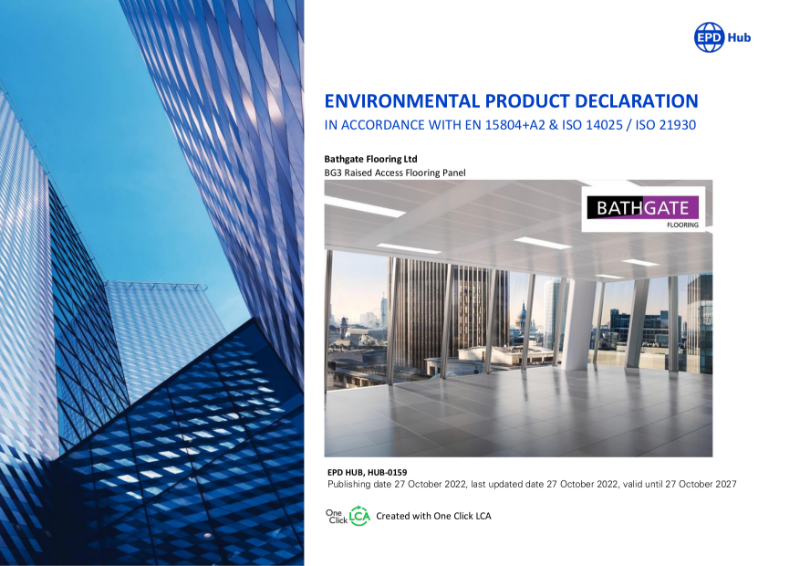

EPD Declaration BG3 & BG3S
Literature

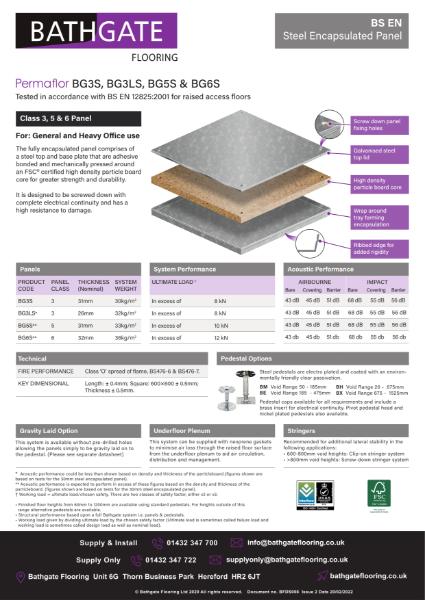

BSEN BG Screw Down Range Steel Encapsulated Panel
