BGM600 - G Low GWP PSA Panel. PSA Medium Grade Gravity Lay Steel Encapsulated Panel - Raised Access Floor Panel

Name: BGM600 - G Low GWP PSA Panel. PSA Medium Grade Gravity Lay Steel Encapsulated Panel - Raised Access Floor Panel
Brand: Bathgate Flooring Ltd
SKU: eqeTPnsoUJow9suJC4h5JH

Verified by manufacturer 23 days ago

Bathgate Flooring Ltd

Product certifications:

EPD
Certificate type

Sustainable, low GWP, Raised Access Floor Panel, Medium Grade, gravity-laid, green steel-encapsulated panel.

Jump to:

BOS

+44 (0) 1432 347700 Website

Application

Raised access floor panel suitable for:

Internal applications.
Commercial applications.
Offices.

Can be overlaid with finishes such as loose laid carpet tile.

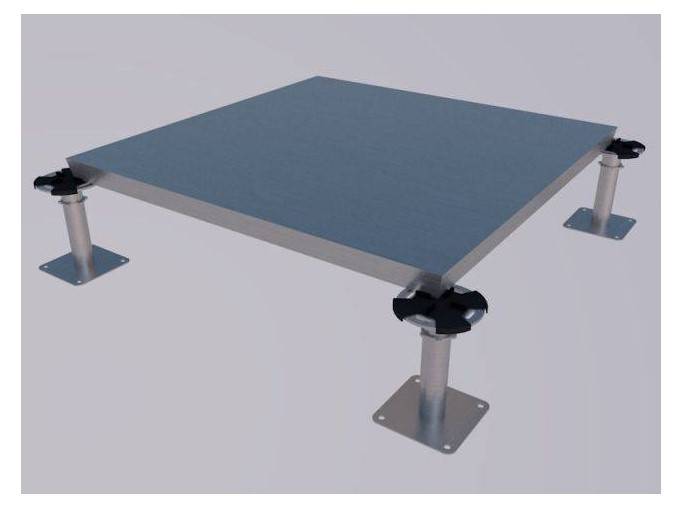

Description

Low GWP, Medium Grade, gravity-laid panel. Consisting of a high grade, FSC®-certified, 30 mm thick, high-density particleboard core with a green steel top lid and bottom tray, manufactured in electric arc furnace with high recycled content. All pressed together to make a fully steel-encapsulated 600 mm² panel.

The panel is fully tested by an independent, UKAS-accredited laboratory to the PSA MOB PF2 PS/SPU March 1992 Medium Grade specification, and is certified as being fully compliant.

Features and benefits:

Low GWP
Green Steel
FSC® certified.
Extremely dimensionally accurate +/- 0.5mm
Designed to be loose-laid with complete electrical continuity.
High resistance to damage.
Manufactured in the UK.

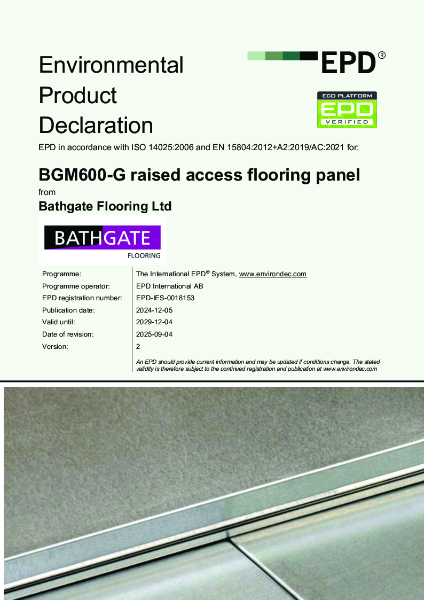

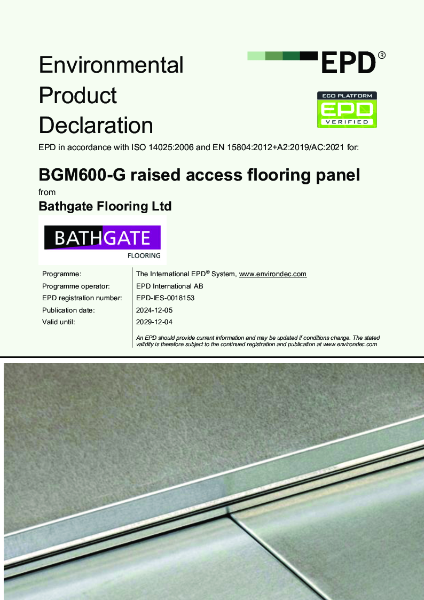

Independent EPD Certification

General information

Color	Silver Grey
Finish	Galvanized
Material	Steel Guidance for specification option: Top lid and bottom tray. Manufactured in electric arc furnace using minimum of 75% recycled steel thereby providing a low carbon product. Particleboard
Shape	Square
Length	600 mm
Width	600 mm
Height	31 mm
Warranty description	25 year

Uniclass	Pr_25_71_42_70 Raised access floor panelsPrimary
CAWS	K41/315 Floor panels K41/130 Raised access floor K41/130 Proprietary raised access floor K41/315 Floor panels

SKU Code	BGM600 - G

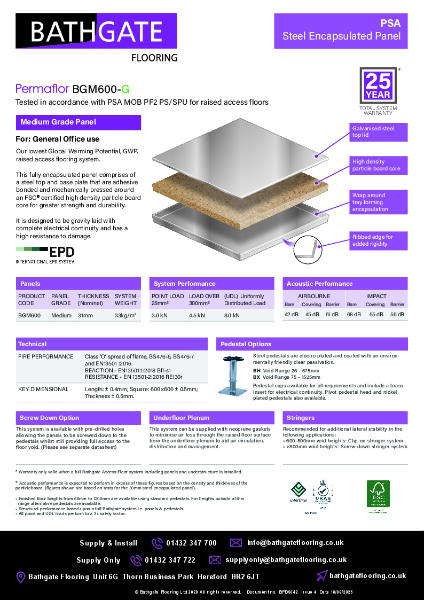

Specification data - Raised access floor panels

Classification data
Casing	-
Material	Steel. Guidance for specification option: Steel in this product is manufactured in electric arc furnace using minimum of 75% recycled steel thereby providing a low carbon product.
Factory finishes	Galvanized.
Core	HD particleboard.
Panel size	600 x 600 mm.
Dimensional deviations	To MOB PF2 PS/SPU. Guidance for specification option: Medium grade.
Weight (maximum)	33 kg/m².
Panel fixing	Gravity laid.
Colour	Natural.
Loading	Load over: 4.5 kN (300 x 300 mm); Point load: 3 kN (25 x 25 mm); Working load safety factor: 3x; Uniform distributed load: 8 kN/m².
SurfaceSpreadOfFlame	Class 0.
Height	31 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany Guidance for specification option: particleboard Manufacturer guidance For Steel see manufacturer
Country of product manufacture	United Kingdom
Manufacturing plant location	Hereford, UK
Material	Steel Guidance for specification option: Top lid and bottom tray. Manufactured in electric arc furnace using minimum of 75% recycled steel thereby providing a low carbon product. Particleboard
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : -4.16 Lower emissions
Recyclability	100 Guidance for specification option: nominal loss of glue Manufacturer guidance steel and wood to be separated for recycling
Recycled content As defined in clause 7.8 of BS EN ISO 14021	84.7 % Manufacturer guidance Calculated by volume knowing a minimum of 75% recycled steel and a minimum of 85% recycled wood with 15% bi product
Expected Life	25 year
