BG5 - BS EN Class 5 Steel Encapsulated Panel - Raised Access Flooring Panel
Verified by manufacturer 14 days ago
EPD
Certificate type
FSC
Certificate type
Raised access, gravity-laid, steel-encapsulated flooring panel.
Application
Internal, commercial, office. Suitable to be overlaid with finishes such as loose-laid carpet tile.
Description
Raised access flooring. Gravity-laid panel, consisting of a high-grade, FSC® certified, 31 mm thick, high-density particle board core with a steel top lid and bottom tray, all pressed together to make a fully steel encapsulated 600 mm² panel.
The panel has been fully tested to the BS EN 12825:2001 5/A/3/2 specification and is fully compliant.
Features and benefits:
- FSC®-certified.
- BS EN flooring panel.
- Steel encapsulated.
- Extremely dimensionally accurate +/- 0.5 mm.
- Designed to be loose-laid with complete electrical continuity.
- High resistance to damage.
- Manufactured in the UK.
General information
Color | Grey Silver |
Finish | Galvanized |
Material | Steel Guidance for specification option: Top lid and bottom tray. Particleboard |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Height | 31 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Raised access floor K41/315 Floor panels K41/315 Floor panels |
Specification data - Raised access floor panels
Fire performance | |
Reaction to fire | To BS476-6, Class '0'. |
Casing | |
Material | Steel. |
Factory finishes | Galvanized. |
Core | HD particleboard. |
Panel size | 600 x 600 x 31 mm.Manufacturer guidanceWidth x length x height. |
Dimensional deviations | To BS EN 12825, Class 5.Guidance for specification option: 5/A/3/2. |
Weight (maximum) | 33 kg/m². |
Panel fixing | Gravity laid. |
Colour | Natural. |
Loading | Working load safety factor: x3; Uniform distributed load: >10 kN/m². |
SurfaceSpreadOfFlame | To BS 476-7, Class 0. |
Acoustic performance | Airbourne: 42–51 dB. |
Accessories | BM pedestal. Guidance for specification option: Steel and electroplated, coated with an environmentally friendly clear passivation. BM void range: 50–185 mm. Pedestal caps available for all requirements and include a brass insert for electrical continuity. Pivot pedestal head and nickel plated pedestals also available. BH pedestal. Guidance for specification option: Steel and electroplated, coated with an environmentally friendly clear passivation. BH void range: 26–675 mm. Pedestal caps available for all requirements and include a brass insert for electrical continuity. Pivot pedestal head and nickel plated pedestals also available. BE pedestal. Guidance for specification option: Steel and electroplated, coated with an environmentally friendly clear passivation. BE void range: 185–475 mm. Pedestal caps available for all requirements and include a brass insert for electrical continuity. Pivot pedestal head and nickel plated pedestals also available. BX pedestal. Guidance for specification option: Steel and electroplated, coated with an environmentally friendly clear passivation. BX void range: 675–1525 mm. Pedestal caps available for all requirements and include a brass insert for electrical continuity. Pivot pedestal head and nickel plated pedestals also available. |
Sustainability data
Country of material origin | Germany Guidance for specification option: particleboard Manufacturer guidanceSee manufacturer for origin of Steel |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 7.67 kg CO₂ eq/unit |
Recyclability | 100 Guidance for specification option: Nominal loss of glue. Manufacturer guidanceSteel and board to be separated for recycling. |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications

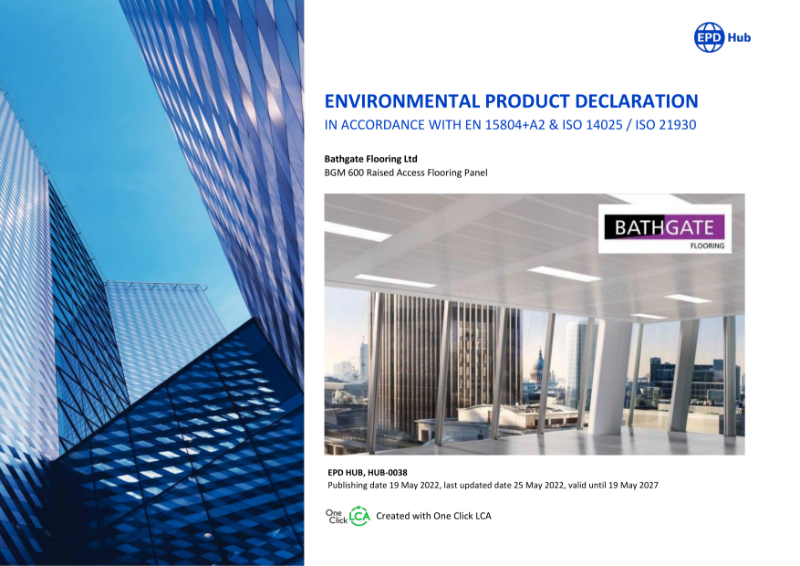

EPD
EPD Declaration BGM600, BG5, BGM600S & BG5S
FSC
FSC® Certificate
Literature
Datasheet BG3, BG3L, BG5 & BG6
