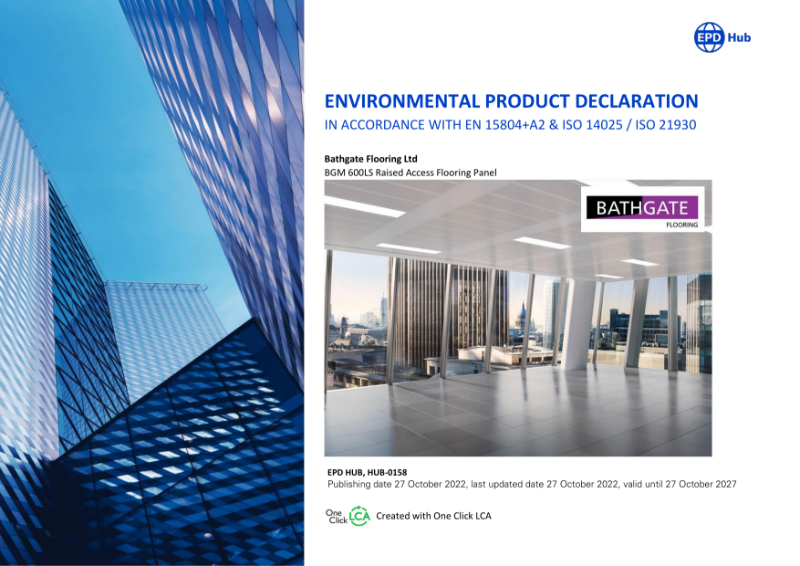

EPD
Certificate type

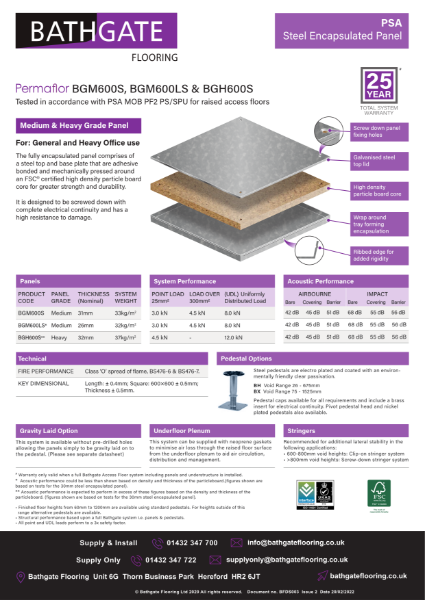

Access Flooring Medium Grade, slim, screw-down, steel-encapsulated panel.
Internal, Commercial, Office floor panel. Suitable to be overlaid with finishes such as loose-laid carpet tile.
Raised Access Flooring Medium Grade, slim, screw-down panel, consisting of a high-grade, FSC®-certified, 25 mm-thick, high-density particle board core with a steel top lid and bottom tray, all pressed together to make a fully steel-encapsulated 600 mm² panel.
The panel is fully tested by an independent, UKAS-accredited laboratory to the PSA MOB PF2 PS/SPU March 1992 Medium Grade specification, and is certified as being fully compliant.
Features and benefits:
Color | Grey Silver |
Finish | Galvanized |
Material | Steel Guidance for specification option: Top lid and bottom tray. Particleboard |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Height | 26 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Raised access floor K41/315 Floor panels K41/315 Floor panels |
Casing | |
Material | Steel. |
Factory finishes | Galvanized. |
Core | HD particleboard. |
Panel size | 600 x 600 x 26 mm.Manufacturer guidanceWidth x length x height. |
Dimensional deviations | To MOB PF2 PS/SPU.Guidance for specification option: Medium grade. |
Weight (maximum) | 32 kg/m². |
Panel fixing | Screw-fixed. |
Colour | Natural. |
Loading | Load over: 4.5 kN (300 x 300 mm); point load: 3 kN (25 x 25 mm); working load safety factor: 3x; Uniform distributed load: 8 kN/m². |
SurfaceSpreadOfFlame | Class 0. |
Country of material origin | Germany Guidance for specification option: particleboard Manufacturer guidanceFor Steel see manufacturer |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 13.7 kg CO₂ eq/unit |
Recyclability | 100 Guidance for specification option: nominal loss of glue Manufacturer guidanceSteel and wood to be separated for recycling |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 81.86 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
