Beneath Heat 15 mm Slim Board Over Floor UFH System - Underfloor Heating System
Verified by manufacturer 4 months ago
Underfloor heating (UFH) system for use over the floor, pipes held in place by low-profile cement-reinforced XPS grooved insulation boards.
Application
Underfloor heating (UFH) system for use over the floor, in new builds and renovation.
Description
Underfloor heating (UFH) system for use over the floor, pipes held in place by low-profile cement-reinforced XPS grooved insulation boards.
Features and benefits:
- Lightweight XPS insulation panel with webbed polymer cement-based finish.
- Fixed down with either flexible tile adhesive or screwed down using a minimum of nine screws & nine washers per board.
- Low profile, 15 mm total height.
- Either a tile or an interlocking wood floor finish can be applied directly over the board. Other floor finishes will require a minimum of 3 mm self-levelling compound to be applied on top of the slim board.
- Quick and easy to install.
- For use with 10 mm-diameter PERT pipes at 150 mm centres.
- Heating performance*: 71 W/m².
*Heat output at a flow water temperature of 45°, based on a tog rating of 1 with a room temperature of 21°. Consult manufacturer's literature for full details.
General information
Color | Grey |
Finish | Grooved Guidance for specification option: Webbed polymer cement-based (board only). |
Material | High density extruded polystyrene (XPS) Guidance for specification option: P5 grade. |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 15 mm |
Warranty description | Two year Manufacturer guidanceConsult manufacturer for full details. |
Uniclass | |
CAWS | T90/475 Underfloor heating systems T90/475 Underfloor heating systems |
Specification data - Underfloor low-temperature hot water heating systems
System performance | Guidance for specification option: Insert requirements. |
Heat source | Low-temperature hot water heating system.Guidance for specification option: Specify details separately. |
Pumps | Beneath Heat underfloor heating pump pack.Beneath Heat single area pump pack.Manufacturer guidanceConsult manufacturer for details. |
Pipework | |
Distribution | Guidance for specification option: Insert requirements. |
Underfloor | 10 mm PERT pipes and fittings.Manufacturer guidanceInstallation tools available, including pipe decoilers, pipe cutters and pipe calibrators. |
Jointing materials | Guidance for specification option: Insert requirements. |
Insulation | 15 mm slim XPS board with webbed polymer-cement-based finish.Guidance for specification option: Consult manufacturer's literature for installation details. Manufacturer guidanceConsult manufacturer for details. |
Pipe supports | As Pipework: Insulation; 150 mm centres. |
Valves | Guidance for specification option: Consult manufacturer for options and insert requirements. Options include manifolds, blend valves, heat pump valves and return elbows. |
Water treatment | Guidance for specification option: Consult manufacturer for options and insert requirements or omit. |
Accessories | 230 V Saswell dial thermostat.Guidance for specification option: Consult manufacturer for options and insert requirements. 230 V Saswell programable thermostat.230 V Saswell WiFi thermostat.Wireless Saswell programable thermostat.Wireless Saswell WiFi thermostat.Saswell WiFi gateway |
Controls | |
Controllers | Saswell 230 V two wire actuator.230 V wiring centre.230 V wireless wiring centre. |
Control valves | Saswell two-port motorised valve. |
Sensors | Not required.Saswell floor/ air sensor.Single area pump pack adaptors.Guidance for specification option: Not for use with single area pump pack. |
Floor covering | Tiled. Guidance for specification option: Can be applied directly over the slim board. Specify separately if required. Interlocking wood flooring. Guidance for specification option: Can be applied directly over the slim board. Specify separately if required. Other Guidance for specification option: Minimum 3 mm self-levelling compound required before final covering is applied. Specify separately if required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recyclability | None |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature
Underfloor Heating Product and Technical Guide

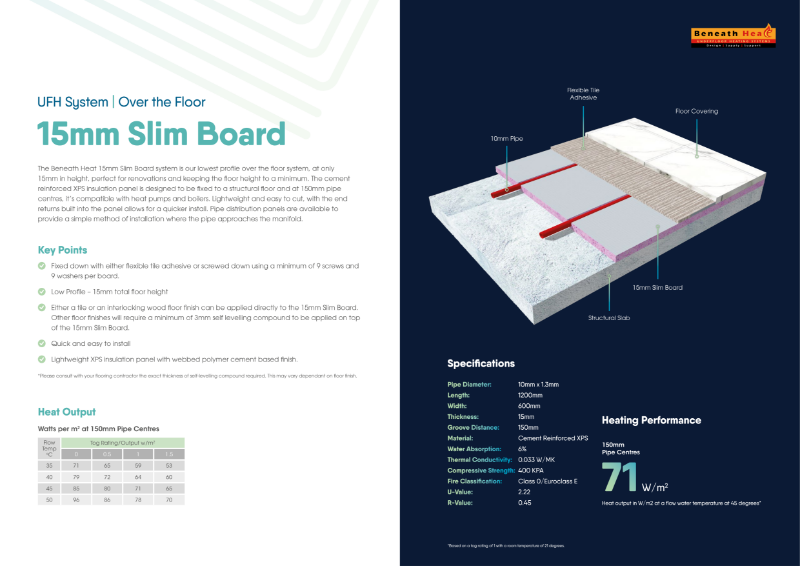

Beneath Plate 15 mm Slim Board Over Floor UFH System
