Beneath Heat Staple Screeded Floor UFH System - Traditional Underfloor Heating System

Verified by manufacturer 3 months ago

Beneath Heat

Traditional underfloor heating (UFH) system for use in a screed floor, using a plastic barbed staple every 500mm to hold the pipe in place on insulation.

Jump to:
07944706296 Website

Application

Traditional underfloor heating (UFH) system for use in a screed floor. Typically for new builds or renovation where floor is excavated.

Pipe attached via plastic staples into insulation, before screeding with either a traditional sand & cement screed or a liquid screed.

Description

Traditional underfloor heating (UFH) system for use in a screed floor.

Using a plastic barbed staple every 500 mm to hold the pipe in place, the system provides a quick, flexible and install method: using the a pipe staple gun makes the installation quicker and easier.


Features and benefits:

  • Traditional installation method.
  • Cost-effective solution.
  • Minimal fixing materials required.
  • Suitable for use with low temperature heat sources.
  • Quick and easy installation.
  • Compatible with 16 mm-diameter PERT and MLCP pipes.
  • Pipe to sit typically within 40–65 mm of screed.
  • Heating performance*:
  • 150 mm pipe centres: 79 W/m².
  • 200 mm pipe centres: 70 W/m².


*Heat output at a flow water temperature of 45°, based on a tog rating of 1 with a room temperature of 21°. Consult manufacturer's literature for full details.

General information

Color

Red

White

Finish

Other

Guidance for specification option:

Polyethylene.

Material

Polyethylene

Shape

Circle

Length

100000 mm

Width

16 mm

Height

16 mm

Warranty description

Two year

Guidance for specification option:

Electrical and mechanical products.

50 year

Guidance for specification option:

Pipes.

Manufacturer guidance

Consult manufacturer for full details.

Uniclass

Ss_60_40_92_94 Underfloor low-temperature hot water heating systemsPrimary

CAWS

T90/475 Underfloor heating systems

T90/475 Underfloor heating systems

Specification data - Underfloor low-temperature hot water heating systems

System performance

Guidance for specification option:

Refer to the Beneath Heat Staple UFH System brochure for heat output values and insert requirements.

Heat source

Air source heat pump.

Guidance for specification option:

Specify details separately.

Ground source heat pump.

Gas boiler.

LPG boiler.

Electric boiler.

Oil boiler.

Pumps

Beneath Heat underfloor heating pump pack.

Beneath Heat single area pump pack.

Manufacturer guidance

Consult manufacturer for details.

Pipework

-

Distribution

Guidance for specification option:

Insert requirements.

Underfloor

16 mm PERT pipes and fittings, at 150 mm centres.

16 mm PERT pipes and fittings, at 200 mm centres.

16 mm MLCP pipes and fittings, at 150 mm centres.

16 mm MLCP pipes and fittings, at 200 mm centres.

Manufacturer guidance

Installation tools available, including pipe decoilers, pipe cutters and pipe calibrators.

100 metres will cover approx. 20 m², 200 metres approx. 30 m² and 240 meters approx. 40 m².

Jointing materials

Guidance for specification option:

Insert requirements.

Insulation

Edge insulation and insulation panels.

Guidance for specification option:

For use with traditional sand & cement screed.

Edge insulation and insulation panels with polythene sheeting.

Guidance for specification option:

For use with liquid screed.

Manufacturer guidance

Consult manufacturer for details.

  • Edge insulation to be fitted around the perimeter of the heated room, providing a barrier against heat loss and expansion. Standard, apron and apron/adhesive options available
  • Insulation panels are laid beneath the pipes, covering the complete floor area.

Pipe accessories

None.

Pipe conduit.

Pipe supports

Pipe clips (staples), 45 mm.

Pipe clips (staples), 60 mm.

Manufacturer guidance

Compatible staple gun available.

Staples to be used every 500 mm.

Valves

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Options include manifolds, blend valves, heat pump valves and return elbows.

Water treatment

Guidance for specification option:

Consult manufacturer for options and insert requirements or omit.

Accessories

230 V Saswell dial thermostat.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

230 V Saswell programable thermostat.

230 V Saswell WiFi thermostat.

Wireless Saswell programable thermostat.

Wireless Saswell WiFi thermostat.

Saswell WiFi gateway

Controls

-

Controllers

Saswell 230 V two wire actuator.

230 V wiring centre.

230 V wireless wiring centre.

Control valves

Saswell two-port motorised valve.

Sensors

Not required.

Saswell floor/ air sensor.

Single area pump pack adaptors.

Guidance for specification option:

Not for use with single area pump pack.

Floor components

Screed.

Floor covering

Guidance for specification option:

Insert requirements. Specify separately if required.

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Recyclability

PERT pipe can be melted down and recycled

Literature

Underfloor Heating Product and Technical Guide

Underfloor Heating Product and Technical Guide

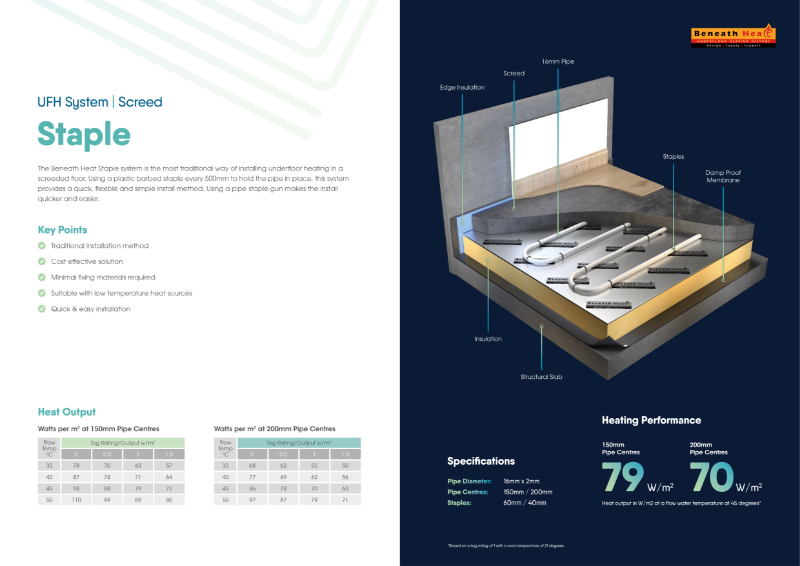

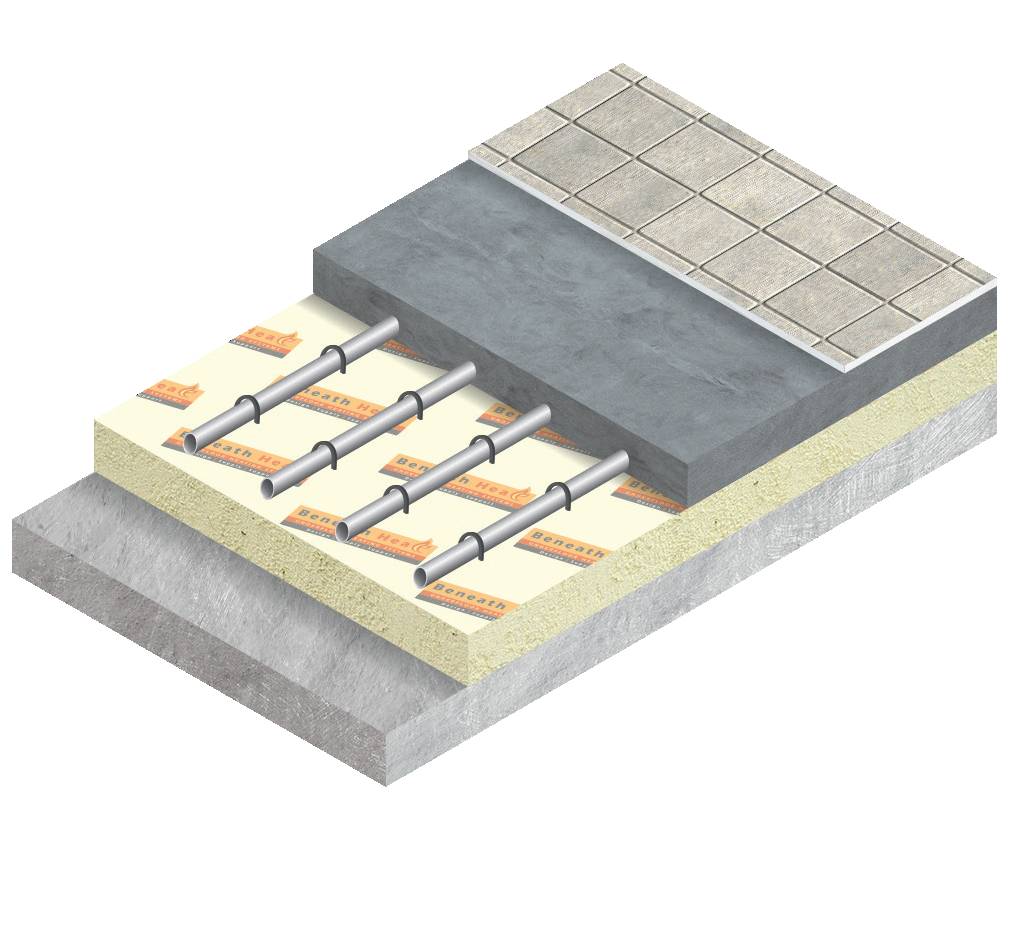

Beneath Heat Staple UFH System

Beneath Heat Staple UFH System
