Beneath Heat Tacker Panel Screeded Floor UFH System - Underfloor Heating System
Verified by manufacturer 4 months ago
Underfloor heating (UFH) system for use in a screed floor, using a lightweight castellated tacker panel to hold the pipe in place prior to screeding.
Application
Underfloor heating (UFH) system for use in a screed floor. Typically for new builds or renovation where floor is excavated.
Pipe laid on insulation before screeding with dry or wet screed.
Description
Underfloor heating (UFH) system for use in a screed floor, using a lightweight castellated tacker panel laid on top of the insulation to hold the pipe in place.
The panels interlock, with castellations 50 mm to allow pipes to be positioned at 150 or 200 mm centres.
Features and benefits:
- Suitable for use with both heat pumps and boilers.
- Each tray covers a nominal 1 m² (0.96 m² once interlocked).
- Precise, even heat distribution across the room.
- If required panels can be fixed down, particularly along the perimeter, using adhesive, screws, clips or high-strength double-sided adhesive tape (where practical).
- Dry or wet screed can be used (for wet screed it is recommended to start the screeding at the centre of the installation, not at the edges).
- Compatible with 16 mm-diameter PERT and MLCP pipes.
- Pipe to sit typically within 40–65 mm of screed.
- Heating performance*:
- 150 mm pipe centres: 79 W/m².
- 200 mm pipe centres: 70 W/m².
*Heat output at a flow water temperature of 45°, based on a tog rating of 1 with a room temperature of 21°. Consult manufacturer's literature for full details.
Standard checks should be carried out prior to screeding as it may be beneficial to load the pipes.
General information
Color | Black |
Finish | Grooved |
Material | Acrylonitrile butadiene styrene (ABS) Guidance for specification option: Tacker panel. |
Shape | Rectangle |
Length | 1220 mm |
Width | 820 mm |
Height | 20 mm |
Warranty description | Two year Guidance for specification option: Electrical and mechanical products. 50 year Guidance for specification option: Pipes. Manufacturer guidanceConsult manufacturer for full details. |
Uniclass | |
CAWS | T90/475 Underfloor heating systems T90/475 Underfloor heating systems |
Specification data - Underfloor low-temperature hot water heating systems
System performance | Guidance for specification option: Insert requirements. |
Heat source | Low-temperature hot water heating system.Guidance for specification option: Specify details separately. |
Pumps | Beneath Heat underfloor heating pump pack.Beneath Heat single area pump pack.Manufacturer guidanceConsult manufacturer for details. |
Pipework | |
Distribution | Guidance for specification option: Insert requirements. |
Underfloor | 16 mm PERT pipes and fittings.16 mm MLCP pipes and fittings.Manufacturer guidanceInstallation tools available, including pipe decoilers, pipe cutters and pipe calibrators. 100 metres will cover approx. 20 m², 200 metres approx. 30 m² and 240 meters approx. 40 m². |
Jointing materials | Guidance for specification option: Insert requirements. |
Insulation | Edge insulation and insulation panels.Guidance for specification option: For use with traditional sand & cement screed. Edge insulation and insulation panels with polythene sheeting.Guidance for specification option: For use with liquid screed. Manufacturer guidanceConsult manufacturer for details.
|
Pipe accessories | None.Pipe conduit. |
Pipe supports | Channel supports - castellated tacker panels (pipes at 150 mm centres).Channel supports - castellated tacker panels (pipes at 200 mm centres).Manufacturer guidance
Castellations allow pipe placement at 50 mm intervals; standard pipe placement options of 150 and 200 mm offered. |
Valves | Guidance for specification option: Consult manufacturer for options and insert requirements. Options include manifolds, blend valves, heat pump valves and return elbows. |
Water treatment | Guidance for specification option: Consult manufacturer for options and insert requirements or omit. |
Accessories | 230 V Saswell dial thermostat.Guidance for specification option: Consult manufacturer for options and insert requirements. 230 V Saswell programable thermostat.230 V Saswell WiFi thermostat.Wireless Saswell programable thermostat.Wireless Saswell WiFi thermostat.Saswell WiFi gateway |
Controls | |
Controllers | Saswell 230 V two wire actuator.230 V wiring centre.230 V wireless wiring centre. |
Control valves | Saswell two-port motorised valve. |
Sensors | Not required.Saswell floor/ air sensor.Single area pump pack adaptors.Guidance for specification option: Not for use with single area pump pack. |
Floor components | Screed. |
Floor covering | Guidance for specification option: Insert requirements. Specify separately if required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Tacker panel is recyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 99 % |
Literature
Underfloor Heating Product and Technical Guide

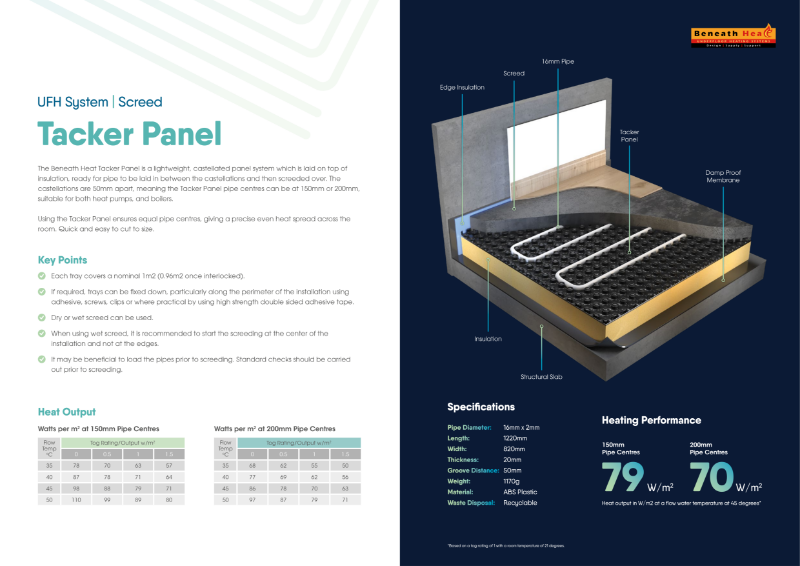

Beneath Heat Tacker Panel UFH System
