Axiom Profile V Mesh Perimeter Fencing

Name: Axiom Profile V Mesh Perimeter Fencing
Brand: Zaun Limited
SKU: mfFH4kKzE42whMShy4YmQh

Verified by manufacturer 10 days ago

Axiom V Mesh is a cost-effective 5 mm welded profile mesh fencing system with V-beam pressings for rigidity, designed for low-security perimeter demarcation in schools, commercial and industrial sites

Jump to:

+44 (0)1902 796699 Website

Application

Axiom V Mesh is suitable for:

Schools and education sites
Commercial developments
Industrial estates
Public open spaces
Residential boundaries
General perimeter demarcation
Solar Farm Fencing
Agricultural Fencing

Description

Axiom V Mesh is a contemporary, non-threatening welded mesh perimeter fencing system designed as a low-cost solution for sites not likely to be subjected to sustained abuse.

Manufactured from 5 mm horizontal and vertical steel wires with a 200 x 50 mm open mesh pattern, the system provides high visibility while allowing the fence line to blend into its surroundings.

Each panel incorporates V-shaped beam pressings along its length to provide increased lateral rigidity and structural stability. The system is designed for economical installation with post centres up to 3.0 m.

Axiom V Mesh offers a practical and durable perimeter demarcation solution for a wide range of commercial and public environments.

Key Features and Benefits

Contemporary, non-threatening perimeter fencing system
5 mm horizontal and vertical welded steel wires
200 x 50 mm open mesh aperture
High visibility design
Blends into surroundings
V-shaped beam pressings for enhanced rigidity
Designed for areas not subject to sustained abuse
Cost-effective system with 3.0 m post centres
Available in-ground, base-plated or wall-mounted

General information

Color	Green Black Other
Finish	Galvanized Powder-coated
Material	Metal
Width	3005 mm 2805 mm Manufacturer guidance For panel Heights above 2.8m please select 2805mm panel width, all other heights are at 3005 panel width
Height	1230 mm 1530 mm 1730 mm 1930 mm 2330 mm 2960 mm Show more

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/125 Open mesh steel panel general-purpose fencing Q40/27 Open mesh steel panel general-purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Specification data - Metal mesh panel fencing systems

Classification data
Standard	To BS1722, ISO 12944.
Posts	60 x 60 mm square hollow section (SHS). Guidance for specification option: 2.4/ 2.7/ 3.1 m long for fixing in ground 670 mm and spaced at 3025 mm centres.
Panels	50 x 200 mm mesh. Guidance for specification option: Comprising single 5 mm vertical wires at 50 mm centres and 5 mm horizontal wires at 200 mm centres, with three horizontal V-beams.
Site applied finishes	Galvanized. Powder coated.
System accessories	Not required. Pedestrian gates. Guidance for specification option: Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements. Vehicular gates. Guidance for specification option: Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements. Locinox range. Slide latch.
Height	1730 mm. 1930 mm. 2330 mm. Manufacturer guidance Other heights are available upon request.
Applied finishes	Galvanized and polyester powder coated.
Fixing	Bolt down. In ground. Wall. Manufacturer guidance Anti tamper security fixings.
Gates	Zaun Duo8 mesh cladding, rubber bump stop and two gate posts.

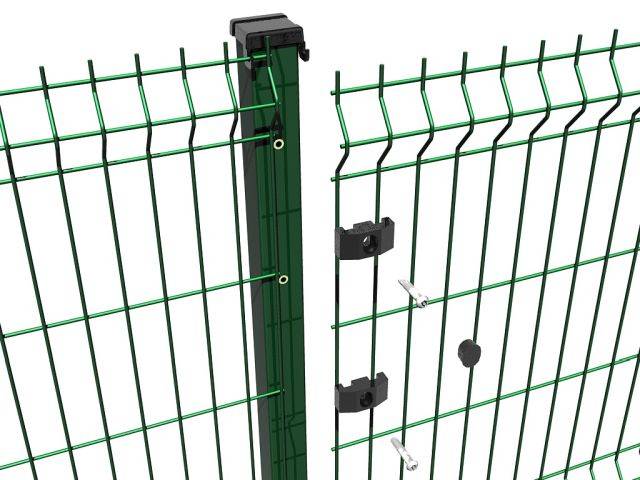

Panel fixings	Panels fixed to posts with Axiom clips nominally at 400 mm centres.
WireDiameter	5 mm / 5 mm. Guidance for specification option: Vertical x Horizontal.
Mesh size	200 x 50 mm.
Width	3005 mm.
Fixing type	Clips.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Metal
Recyclability	100% Recyclable at End of Life
Recycled content As defined in clause 7.8 of BS EN ISO 14021	80 %
Expected Life	15 year
