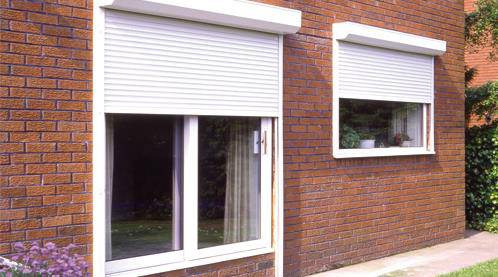

ALU-12M411 Insulated Aluminium Roller Shutter - Roller Shutter

Verified by manufacturer 3 months ago

ALU-12M411 Electric

UK Roller Shutters Ltd Variant:

Aluminium double skinned polyester powder coated shutter with polyurethane foam insulating core.

Jump to:
+44 (0)1384 221743 Website

Application

Low to medium security domestic sites with a maximum size of 8 m². Suited to windows and doors to block out light, cold and sound, including:

  • House windows.
  • Office windows.
  • Reception counters.
  • Display areas.

Description

Aluminium roller shutter that combines heat and sound control with aesthetics. Made from 43 mm insulated aluminium, the shutters can be programmed to run from a variety of control methods including remote controls, switches or even a smartphone.


If security is more important, the ALU-1237 model may be more appropriate and for larger openings see the ALU-12M511 model.


Features and benefits:

  • Offers low to medium security.
  • Traditionally offers a more cost effective and aesthetically pleasing solution to that of an insulated steel shutter.
  • Lighter than a steel shutter means less energy is needed to open them (4 kg/m²).
  • Fully CE marked.
  • Protection against crushing, shearing or drawing in.

General information

Color

Finish

Powder-coated

Guidance for specification option:

Polyester powder coated.

Material

Aluminium

Shape

Rectangle

Warranty description

One year

Guidance for specification option:

On electrical parts.

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Specification data - Roller shutters

Opening sizes

-

Manufacturer guidance

Bespoke, available on request.

Format

Thermally insulated.

Arrangement

Vertical.

Performance

-

Resistance to wind load

Class 2.

Shutter curtain.

-

Lath material

Aluminium.

Guidance for specification option:

Aluminium double skinned polyester powder coated slat with polyurethane foam insulating core.

Finish and colour

Polyester powder coated, black.

Guidance for specification option:

RAL 9005. Available for an additional cost.

Polyester powder coated, brown.

Guidance for specification option:

RAL 8019.

Polyester powder coated, cream.

Guidance for specification option:

RAL 9001.

Polyester powder coated, fir green.

Guidance for specification option:

RAL 6009.

Polyester powder coated, grey.

Guidance for specification option:

RAL 7038.

Polyester powder coated, silver.

Guidance for specification option:

RAL 9006.

Polyester powder coated, white.

Guidance for specification option:

RAL 8019.

Manufacturer guidance

Standard curtain colours. Available in vented and non-vented options.

Frame and guides

-

Material

Aluminium.

Finish

Powder coating.

Colour

Black.

Brown.

Cream.

Fir green.

Grey.

Silver.

White.

RAL/BS colour.

Guidance for specification option:

Box and guides can be powder coated to any stocked RAL/BS colour for an additional charge.

Operation

-

Mode

Automatic, single-phase tubular motor.

Control

Wall switch.

Guidance for specification option:

As standard. Manual override facility as required.

Key switch.

Radio/remote Control.

Rocker switch.

Timer closing.

Loop and Radar operation.

Smart phone.

Swipe Card activation.

Automated.

Other.

Guidance for specification option:

UK Roller Shutters Ltd can access anyone's systems for operation.

Manufacturer guidance

Not all options are available on all size shutters.

Face

4 kg.

Manufacturer guidance

Curtain slat visible face.

Weight

4 kg/m².

Manufacturer guidance

Curtain slat weight per m².

Width

3400 mm.

Manufacturer guidance

Curtain slat maximum width.

Surface

8 m².

Manufacturer guidance

Curtain slat maximum surface.

U-value

3.7 W/m²K.

Manufacturer guidance

Curtain slat.

Guide channels depth

45 mm.

53 mm.

60 mm.

66 mm HD.

Guidance for specification option:

Heavy duty.

Material

Extruded aluminium with brush inserts.

Manufacturer guidance

Guide channels material.

Bottom slat

Extruded aluminium with rubber weather seal.

Curtain type

Non-vented.

Guidance for specification option:

Solid version.

Vented.

Guidance for specification option:

Allows small amounts of light and air in if required.

Hood/ fascia

Not required.

Circular option for canopy.

Guidance for specification option:

If required.

Sustainability data

Country of product manufacture

United Kingdom
