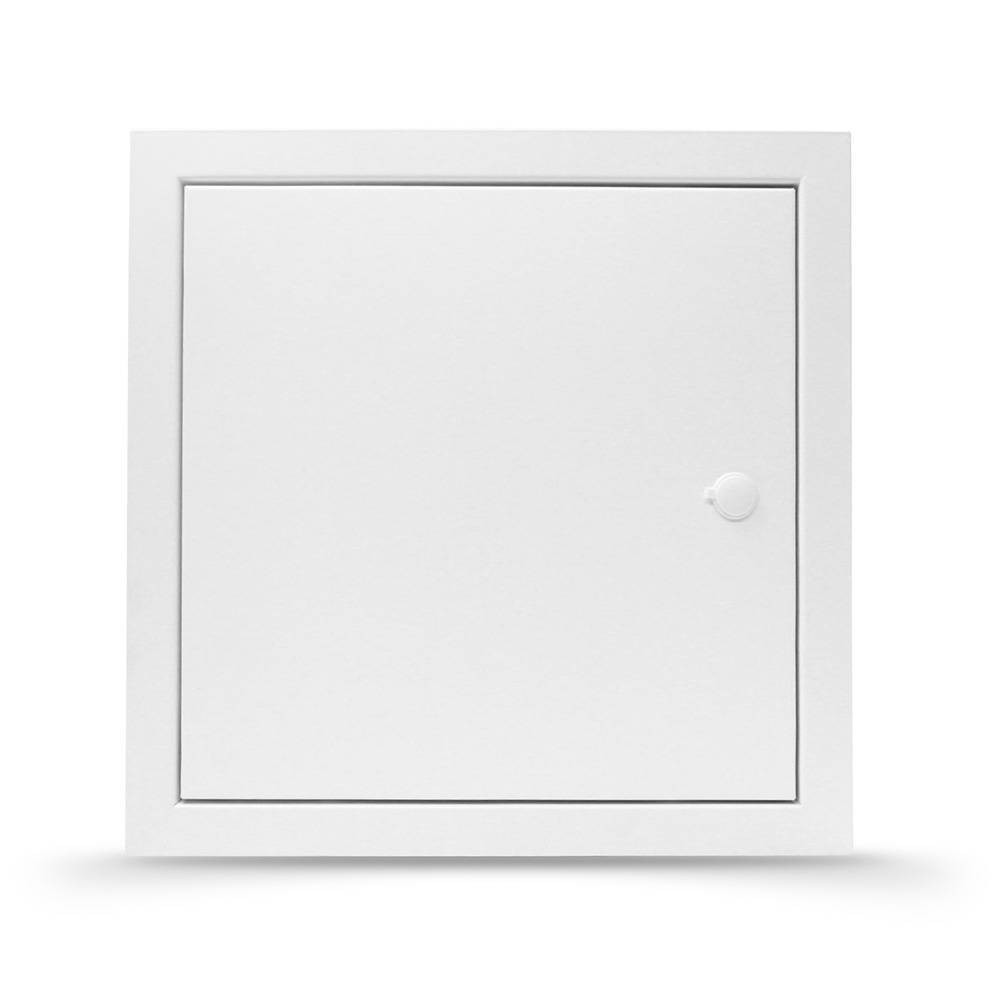

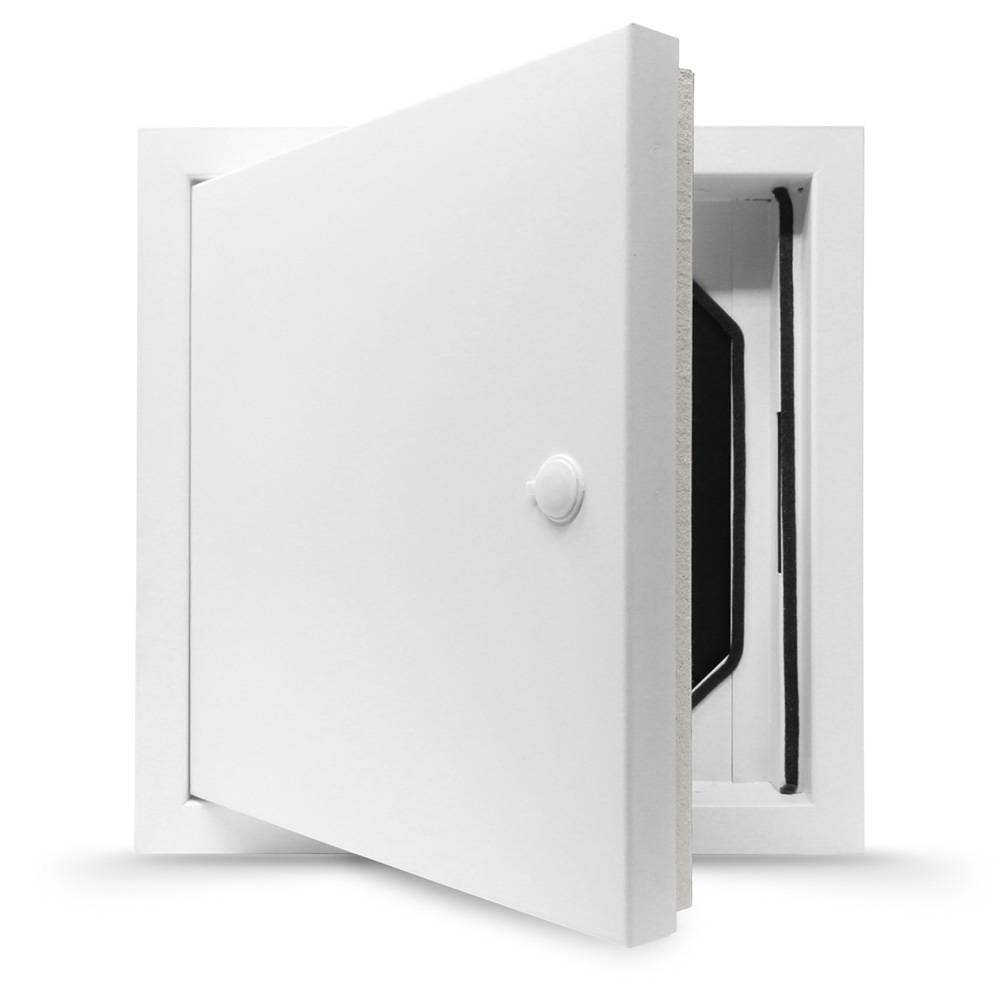

Acoustic Access Panel 40 dB Reduction
Verified by manufacturer 4 months ago
150 x 150 mm
150 x 150 mm
Sound dampening access panel with 40 dB noise reduction.
Application
Wall mounted access panel.
Description
Sound dampening access panel with 40 dB noise reduction.
Features and benefits:
- Accredited testing confirms 40 dB acoustic reduction.
- Access panels hold one-hour fire rating and pass UKAS smoke test.
- Insulation provides one-hour fire rating for wall applications up to 600 x 600 mm, ensuring integrity.
- Tested according to the latest British/ European standards, including BS EN 1634-1: 2008 for fire resistance of door and shutter assemblies - part 1: walls, and BS EN 1364-2: 1999 for fire resistance of non-loadbearing elements - part 2: ceilings (stricter than B.S.476: Part 22:1987). Including sustained flaming test, 6 mm gap gauge test, 25 mm gap gauge test, and cotton pad test.
- Boasts a U-value of 0.45 W/(m²·K), indicating efficient insulation performance.
- Achieves a 60-minute fire rating, complying with part J of the building regulations for inspection hatches in concealed flues within voids.
General information
Color | White |
Finish | Powder-coated |
Material | Zintec steel |
Shape | Square Rectangle |
Length | 150 mm 200 mm 230 mm 300 mm 350 mm |
Width | 150 mm 200 mm 300 mm 350 mm 400 mm |
Height | 50 mm |
Warranty description | Two year |
Uniclass | |
CAWS | L20/60 Doors L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Fire performance | |
Fire resistance | 60 minutes. |
Position | Wall-mounted. |
Size | 150 x 150 mm. |
Panel | |
Material | Steel.Guidance for specification option: Zintec steel. |
Integral finish | Powder-coated. |
Latch or lock type | Budget lock.Guidance for specification option: Equipped with an 8 mm square-ended black plastic T-Key. The lock is concealed by a plastic flip tab bung. Tamper lock.Guidance for specification option: Features a visible lock insert on the face of the access panel door. The lock operates with a quarter turn twist action. each panel comes with one opening key. |
Operation | Concealed steel hinges, outward opening. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Colour | Traffic white, RAL 9016 (with 20% gloss). |
Structural opening size | 155 x 155 mm. |
Overall size | 200 x 200 mm. Manufacturer guidanceOverall size including frame. |
Clear opening | 75 x 80 mm. Manufacturer guidanceOnce installed. |
Depth | 50 mm. |
Weight | 2.5 kg. |
Sound reduction | 40 dB. |
U-value | 45 W/(m²·K). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

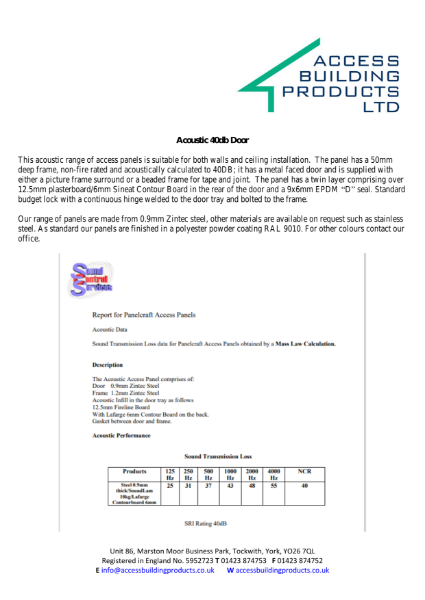

Access Panel Acoustic reduction report

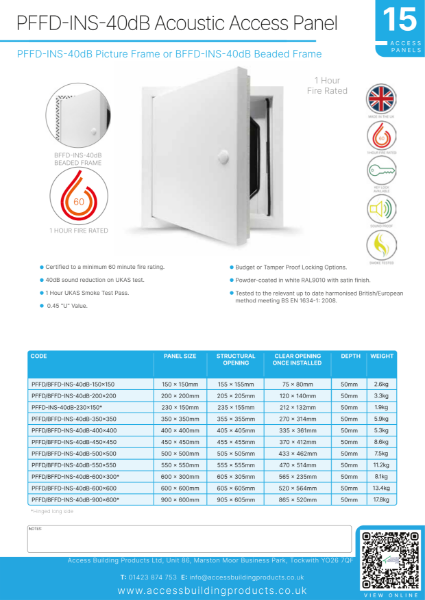

PFFD-INS-40dB Acoustic Access Panel

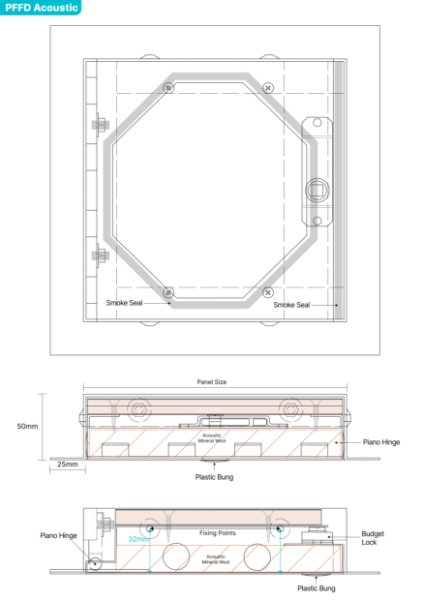

PFFD-INS-40dB Acoustic Access Panel Technical
