Zendow 5000 Tilt & Turn (Standard Sash) - TT8 Opener/Fixed

Name: Zendow 5000 Tilt & Turn (Standard Sash) - TT8 Opener/Fixed
Brand: Deceuninck Ltd
SKU: stbQNxuVwvWW835mokrVkS

Verified by manufacturer over a year ago

Deceuninck Ltd

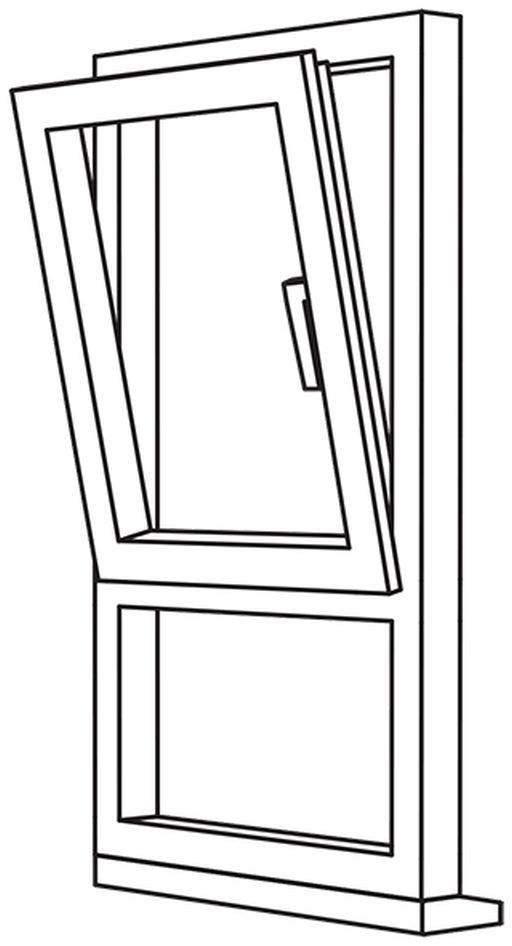

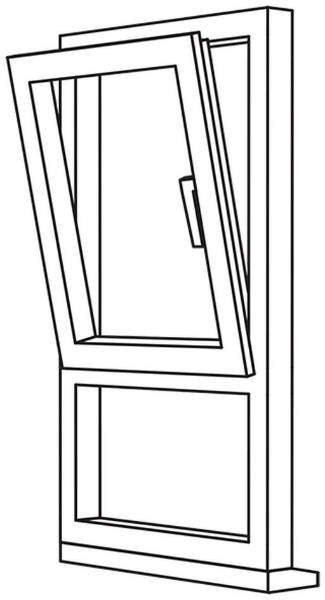

Opening light over a fixed light style window with a simple contemporary design frame.

Jump to:

BOS

+44 (0)1249 816969 Website

Application

Suitable for commercial projects.

Description

PVC-U tilt & turn windows, available in range of styles in three standard finishes.

Years of research and development has resulted in a technically advanced system ideal for commercial projects. With two sash sizes (72 mm & 80 mm), three frame sizes (54 mm, 64 mm & 70 mm), and a slim (80 mm) transom/mullion option.

Features and benefits:

Zendow 5000 is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
Available in a range of colours and finishes.

General information

Color	White Guidance for specification option: Standard RAL 9016 Traffic White. Other Guidance for specification option: Decoroc patented coating RAL or Wood grain foil laminate.
Material	PVC-U
Shape	Rectangle

Uniclass	Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary
CAWS	L10/30 PVC-U windows L10/350 PVC-U windows

Product range	Tilt & Turn Window / Contemporary (PVC-U)

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units

Dimensions and configurations	Tilt and turn sash window.
Product performance	-
Weather performance	-
UK exposure category	2000 Pa.
Air permeability	To BS EN 1026, 600 Pa (positive and negative pressure).
Watertightness	Class 8A.
Resistance to wind load	Class A5.
Safety	-
Security level	To PAS 24.
Environmental	-
Acoustic performance rating	Rw (C ; Ctr) 46 (-1 ; -3) dB.
Thermal	-
Whole window U-value	Guidance for specification option: Whole window ‘U’ values comply with Approved Document L (Eng/Wales) Section 6 (Scotland) of the Building Regulations. Lower ‘U’ values can be achieved. Window energy ratings from C to A++ can be achieved.
British Fenestration Rating Council Window Energy Rating	A++ to C.
Frame	-
Reinforcement	Galvanized steel. Guidance for specification option: Standard. Galvanized steel profiles optimised for strength and secure hardware attachment. Linktrusion. Guidance for specification option: Premium. Continuous glass fibre strip embedded into the outer walls, replacing traditional steel reinforcement to significantly increase thermal performance.
Colour and texture	White Grain. Heritage White. Ice Cream. Classic Cream. Agate Grey. Slate Grey. Grey. Soft Cherry. Quartz Grey. Chartwell Green. Steel Blue. Dark Red. Moss Green. Vin Rouge. Smooth Anthracite. Black Ash. Fir Green. Rustic Cherry. English Oak. Anthracite Grey. Golden Oak. Antique Oak. Grey Cedar. Irish Oak. Rosewood. Nut Tree. Silver Bullet. Bronze Metallic Pyrite Mettalic Black Brown. Light Ivory. Cream. Cement Grey. Traffic Grey. Concrete Grey. Umbra Grey. Blue Grey. Wine Red.
Ventilator	Not required. Proprietary ventilation device.
Glazing or infill	-
Requirements	Single glazed. Double glazed. Triple glazed.
Hardware	Guidance for specification option: System accepts all popular hardware, including concealed hinge types. Full depth euro-groove Secure location of hardware.
Operation	-
Type	Manual.
Fixing features	Guidance for specification option: Fixing can be achieved through the frame with bespoke fixing lugs or into proprietary cavity closers or sub-frame systems. Fixing methods exist for timber framing, flush or check reveals.

Size (w x h)	1000 x 1000 mm.
Outer frame size	54 mm. 64 mm. 70 mm.
Transom/ mullion size	80 mm.
Joints	Cruciform joints. Mechanically jointed. 'T' joints. Welded.
Sash	72 mm Neo Standard slim. 72 mm Neo Premium slim. 80 mm Neo Standard. 108 mm Neo heavy duty.
Couplings	Not required. 3310 Slimline coupler. 3312 Slimline coupler. 3197 Slimline coupler. 3705 Reinforced coupler. 6975 Reinforced coupler. Lightweight. Structural. Show more
Extensions	Not required. 2455 Head section. Guidance for specification option: Accommodates proprietary trickle ventilators. 3300 Add-on. Guidance for specification option: Allows additional clearance for hinges. 3301 Add-on. Guidance for specification option: Accommodates proprietary trickle ventilators. 3302 Add-on. Guidance for specification option: Frame build-up for conservatories. 3331 Add-on. Guidance for specification option: Provides clearance over existing plaster or tiling. 3340 Add-on. Guidance for specification option: Reveal liner adaptor. Show more
Architraves	Not required. 1044 D-mould. Guidance for specification option: 30 mm wide. 1087 Architrave. Guidance for specification option: 40 mm wide. 1178 Quadrant. Guidance for specification option: 19 mm. 3341 Add-on. Guidance for specification option: Architrave adaptor. 3342 Architrave. Guidance for specification option: 30 mm wide. 3343 Architrave. Guidance for specification option: 35 mm wide. Show more
Bay window corner posts	Not required. 3313/3327 Slimline bay pole and adaptor. Guidance for specification option: Angles from 138°-222°. 6916/ 3311 Bay pole and adaptor. Guidance for specification option: Angles from 90°-270°. 6920 90° Square corner post. 3196 Bay post. Guidance for specification option: Fixed 135° angle. Lightweight. Structural. Show more
Weather bars	Not required. 3303 Head drip. 3306 Weather bar.
Projecting sill	Not required. 3338 Projecting sill. Guidance for specification option: 150 mm. 3339 Projecting sill. Guidance for specification option: 180 mm. 3258 End cap. Guidance for specification option: For 3338 Projecting sill. 3259 End cap. Guidance for specification option: For 3339 Projecting sill.
Stub-sill	Not required. 3337 Stub-sill. Guidance for specification option: 95 mm. 3257 End cap. Guidance for specification option: For 3337 Stub-sill.
Options	Not required. Georgian bar. Leaded lights. Manufacturer guidance Glazing options.
Style	Standard. Contemporary. Decorative.
Ironmongery	As section P21. Concealed hinges. Full perimeter locking.
Seal	High performance weatherseal.
Thickness	5—42 mm. Manufacturer guidance Glazing thickness.
ThermalTransmittance	1.2.

Sustainability data

Material	PVC-U

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1
