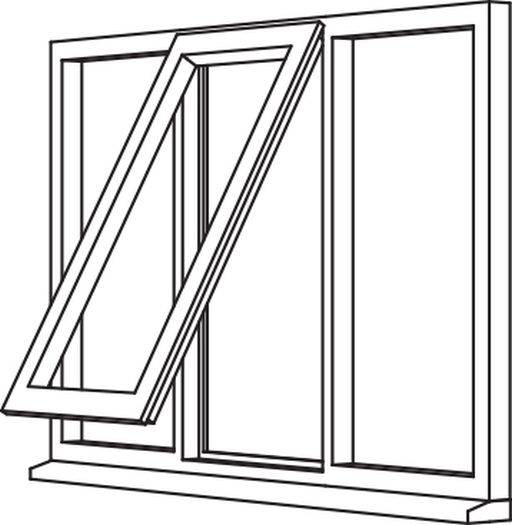

Heritage 2800 Casement - C30 Fixed/Opener/Fixed

Application

Suitable for commercial projects.

Description

PVC-U casement windows, available in range of styles in three standard finishes. Years of research and development has resulted in a technically advanced system ideal for commercial projects. With one sash size (74 mm), two frame sizes (55 mm & 70 mm), and a slim (70 mm) intermediate (85 mm) or large (110 mm) transom/mullion option.


Features and benefits:

  • The Heritage 2800 is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
  • The system is available in 26 laminate colourways from stock providing the ultimate convenience regarding supply.
  • BSI Kitemark.
  • Environmental product declaration:  EPD-QKE-20150313-IBG1-EN.

General information

Shape

Rectangle

Color

White

RAL 9016 (standard).

Other

Laminated foil, Decoroc colour (RAL).

Material

PVC-U

WarrantyDescription

Manufacturer warranty.

Size

Specification dependant.

Uniclass

Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary

CAWS

L10/30 PVC-U windows

L10/350 PVC-U windows

Product range

Casement Window (PVC-U) / Decorative

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units Enhanced data

Standard

To BS 7412.

Third-party certification

BSI Kitemark.

Dimensions and configurations

Top hung opening light and fixed dual side lights.

Product performance

-

Fire performance

-

Fire egress

Not required.

Required.

Top hung opening light and fixed dual side lights.

Weather performance

-

UK exposure category

To BS 6375, Class A5 (2000 Pa).

Air permeability

To BS 6375, Class A5 (2000 Pa).

Watertightness

To BS 6375, Class 9A (600 Pa).

Resistance to wind load

To BS 6375, Class A5 (2000 Pa).

Durability

-

Operation and strength characteristics

Operating forces Class 1, resistance to static torsion Class 3 and racking Class 3.

Loadbearing capacity of safety devices

Yale Defender Restricted hinge (350 N).

Nico Restricted hinge (350 N).

Cotswold Sinidex Restricted hinge (350 N).

VBH Delta Restricted hinge (350 N).

Safety

-

Security level

To PAS 24.

Environmental

-

Background ventilation

Proprietary ventilation device.

Acoustic performance rating

32—43 dB.

Thermal

-

Whole window U-value

  • Whole window ‘U’ values comply with Approved Document L (Eng/Wales) Section 6 (Scotland) of the Building Regulations.
  • Lower ‘U’ values can be achieved.
  • Window energy ratings C to A++ can be achieved.

British Fenestration Rating Council Window Energy Rating

A++ to C.

Frame

-

Profile

To BS EN 12608.

Hollow PVC-U decorative profile manufactured in accordance with BS EN 12608.

Reinforcement

Galvanized steel.

Colour and texture

White - RAL 9016.

Standard.

Laminated foil.

Decoroc colour (RAL).

Ventilator

Proprietary ventilation device.

Glazing or infill

-

Requirements

Single glazing.

Double glazing.

Triple glazing.

Hardware

  • Will accept all popular hardware.
  • Full depth euro-groove.
  • Secure location of hardware.

Operation

-

Type

Manual.

Fixing features

Through frame fasteners.

Fixing lug.

Outer frame size

55 mm.

70 mm.

85 mm.

Transoms and mullions size

70 mm.

85 mm.

110 mm.

Joints

Transom and mullion joints.

Cruciform joints.

Mechanically joined.

'T' joints.

Welded.

Couplings

Window frame couplings.

Not required.

3310 Slimline coupler.

3312 Slimline coupler.

3197 Slimline coupler.

3705 Reinforced coupler.

Show more

Extensions

Window frame extensions.

Not required.

2455 Head section.

Accommodates proprietary trickle ventilators.

3300 Add-on.

Allows additional clearance for hinges.

3301 Add-on.

Accommodates proprietary trickle ventilators.

3302 Add-on.

Frame build-up for conservatories.

Show more

Architraves

Not required.

1044 D-mould.

30 mm wide.

1087 Architrave.

40 mm wide.

1178 Quadrant.

19 mm.

3341 Add-on.

Architrave adaptor.

Show more

Bay window corner posts

Not required.

3313/3327 Slimline bay pole and adaptor.

Angles from 138°-222°.

6916/ 3311 Bay pole and adaptor.

Angles from 90°-270°.

6920 90° Square corner post.

3196 Bay post.

Fixed 135° angle.

Show more

Weather bars

Not required.

3303 Head drip.

3306 Weather bar.

Projecting sill

Not required.

3338 Projecting sill.

150 mm.

3339 Projecting sill.

180 mm.

3258 End cap.

For 3338 Projecting sill.

3259 End cap.

For 3339 Projecting sill.

Stub-sill

Not required.

3337 Stub-sill.

95 mm.

3257 End cap.

For 3337 Stub-sill.

Options

Glazing options.

Not required.

Georgian bar.

Leaded lights.

Ironmongery

As section P21.

Bead

Internal.

Type

Beading type.

Decorative 28 mm.

Standard.

Other.

Other styles available for other glazing thicknesses.

Thickness

Glazing thickness.

3—40 mm.

Hinges

Hardware hinge options.

Yale F2 hinge.

Yale Defender hinge.

Cotswold Sinidex hinge.

Nico hinge.

Securing

Hardware securing device options.

Yale Encloser espag.

Maco RAIL espag.

Roto TSL espag.

Kenricks Easy-Fit espag.

Yale Shootbolt espag.

Show more

Seal

Weatherseal.

High-performance integral multifunctional seal/ gasket.

ThermalTransmittance

0.9.

Digital objects

Platform Compatible Version Certified to
IFC
-

2

1.3
Revit

Revit 2016

3

2.0
Download now from NBS National BIM Library
