Fully Reversible Window System - FRW3
Verified by manufacturer over a year ago

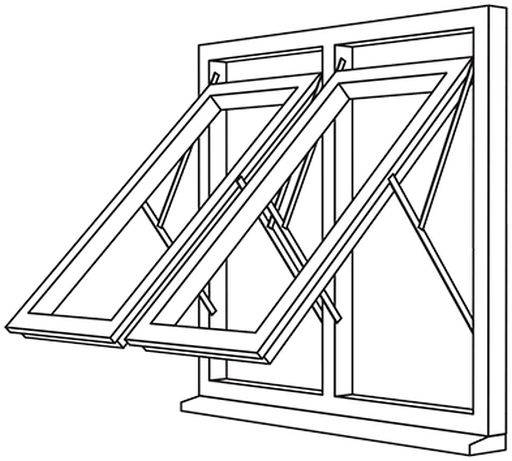

Fully reversible opener next to a fully reversible opener with a chamfered design frame.
Application
Designed for:
- High rise buildings.
- Social housing.
- Hospitals.
- Care homes and any other commercial project where cleaning the outside safely from the inside is the only option.
Description
PVC-U fully reversible window designed for high rise buildings, social housing, hospitals, care homes and any other commercial project where cleaning the outside safely from the inside is the only option.
Features and benefits:
- 1.4 x 1.4 m maximum aperture suitable for contemporary projects.
- Frame fixing position away from hinge for smooth trouble free operation.
- Traditional 2500 chamfered sash design.
- Internal and external flush finish.
- Dedicated locking block, asymmetric design for seal compression adjustment.
- Fully reinforced system designed to withstand long term rigorous use.
- Dedicated glazing packer for frame/ transom removes the need for separate drainage infill profile.
- Neat and simple cli-fit drip rail.
- Unique 'arrow foot' wool pile, quick and easy fitting.
- BlueForce Linktrusion thermal reinforcement for A rated WER performance.
General information
Shape | Rectangle |
Color | White Grey Black Bronze Green |
Material | PVC-U |
Warranty description | Ten year Guidance for specification option:
|
Size | 1000 x 1000 mm |
Uniclass | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Specification data - Unplasticized polyvinyl chloride (PVC-U) window units
Standard | To BS 7412. |
Third-party certification | BSI Kitemark. |
Dimensions and configurations | Dual fully reversible windows. |
Product performance | |
Weather performance | |
UK exposure category | To BS 6375-1, Class AE (2400 Pa). |
Air permeability | To BS 6375-1, Class 4 (600 Pa). |
Watertightness | To BS 6375-1, Class 9A (600 Pa). |
Resistance to wind load | To BS 6375-1, Class A5: AE 2400 Pa. |
Safety | |
Security level | To PAS 24. |
Environmental | |
Acoustic performance rating | Rw (C ; Ctr) 41 (-1 ; -4) dB.Manufacturer guidanceSound reduction. |
Thermal | |
Whole window U-value | 1.4—0.96 W/m²K.Guidance for specification option: 0.96 achieved with 4/14/4/14/4 argon cavity glazing. |
Frame | |
Profile | To BS EN 12608.Guidance for specification option: Hollow PVC-U profile manufactured in accordance with BS EN 1208. |
Reinforcement | Linktrusion.Guidance for specification option: BlueForce™ Linktrusion® thermal reinforcement for A rated WER performance. |
Colour and texture | White - RAL 9016.Guidance for specification option: As standard. Laminated foilDecoroc colour (RAL). |
Glazing or infill | |
Requirements | 28 mm double glazing.40 mm triple glazing. |
Operation | |
Type | Manual. |
Bead | Bevelled. Decorative. |
Accessories | Clip fit drip rail. Secondary wool-pile weather seal. |
Standard range | Agate grey. Anthracite grey. Anthracite smooth. Black ash. Bronze metallic. |
ThermalTransmittance | 0.96. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 2 |
 IFC | - | 2 |
Literature
05. Fully Reversible Window FRW Datasheet
