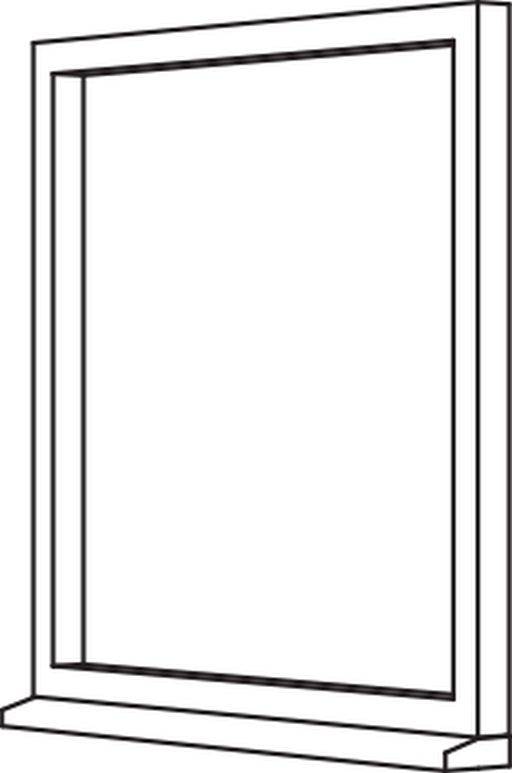

Fixed style window with a decorative design frame.
Suitable for commercial projects.
PVC-U casement windows, available in range of styles in three standard finishes.
Years of research and development has resulted in a technically advanced system ideal for commercial projects. With one sash size (74 mm), two frame sizes (55 mm & 70 mm), and a slim (70 mm) intermediate (85 mm) or large (110 mm) transom/mullion option.
Features and benefits:
Shape | Rectangle |
Color | White RAL 9016 (standard). Other Laminated foil, Decoroc colour (RAL). |
Material | PVC-U |
WarrantyDescription | Manufacturer warranty. |
Size | Specification dependant. |
Uniclass | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Product range |
Standard | To BS 741. |
Third-party certification | BSI Kitemark. |
Dimensions and configurations | Fixed light casement. |
Product performance | - |
Fire performance | - |
Fire egress | Not required. |
Weather performance | - |
UK exposure category | To BS 6375, Class A5 (2000 Pa). |
Air permeability | To BS 6375, Class 4 (600 Pa). |
Watertightness | To BS 6375, Class 9A (600 Pa). |
Resistance to wind load | To BS 6375, Class A5 (2000 Pa). |
Safety | - |
Security level | To PAS 24. |
Environmental | - |
Background ventilation | Not required.Proprietary ventilation device. |
Acoustic performance rating | 32—43 dB. |
Thermal | - |
Whole window U-value |
|
British Fenestration Rating Council Window Energy Rating | A++ to C. |
Frame | - |
Profile | To BS EN 12608.Hollow PVC-U chamfered profile manufactured in accordance with BS EN 12608. |
Reinforcement | Galvanized steel. |
Colour and texture | White - RAL 9016.As standard. Laminated foil.Insert requirement. Decoroc colour (RAL).Insert requirement. |
Ventilator | Not required.Proprietary ventilation device. |
Glazing or infill | - |
Requirements | Single glazed.Double glazed.Triple glazed. |
Hardware |
|
Fixing features | Through frame fasteners.Fixing lug. |
Outer frame size | 55 mm. 70 mm. 85 mm. |
Transoms and mullions size | 70 mm. 85 mm. 110 mm. |
JointsTransoms and mullions joints. | Cruciform joints. Mechanically joined. 'T' joints. Welded. |
CouplingsWindow frame couplings. | Not required. 3310 Slimline coupler. 3312 Slimline coupler. 3197 Slimline coupler. 3705 Reinforced coupler. |
ExtensionsWindow frame extensions. | Not required. 2455 Head section. Accommodates proprietary trickle ventilators. 3300 Add-on. Allows additional clearance for hinges. 3301 Add-on. Accommodates proprietary trickle ventilators. 3302 Add-on. Frame build-up for conservatories. |
Architraves | Not required. 1044 D-mould. 30 mm wide. 1087 Architrave. 40 mm wide. 1178 Quadrant. 19 mm. 3341 Add-on. Architrave adaptor. |
Bay window corner posts | Not required. 3313/3327 Slimline bay pole and adaptor. Angles from 138°-222°. 6916/ 3311 Bay pole and adaptor. Angles from 90°-270°. 6920 90° Square corner post. 3196 Bay post. Fixed 135° angle. |
Weather bars | Not required. 3303 Head drip. 3306 Weather bar. |
Projecting sill | Not required. 3338 Projecting sill. 150 mm. 3339 Projecting sill. 180 mm. 3258 End cap. For 3338 Projecting sill. 3259 End cap. For 3339 Projecting sill. |
Stub-sill | Not required. 3337 Stub-sill. 95 mm. 3257 End cap. For 3337 Stub-sill. |
OptionsGlazing options. | Not required. Georgian bar. Leaded lights. |
Ironmongery | As section P21. |
ThicknessGlazing thickness. | 3—40 mm. |
Bead | Internal. As standard. External. |
TypeBeading type. | Decorative 28 mm. As standard. Other. Other styles available for other glazing thicknesses. |
Seal | Weatherseal. High-performance integral multifunctional seal/ gasket. |
ThermalTransmittance | 0.74. |
