Fully Reversible Window - FRW1
Verified by manufacturer over a year ago

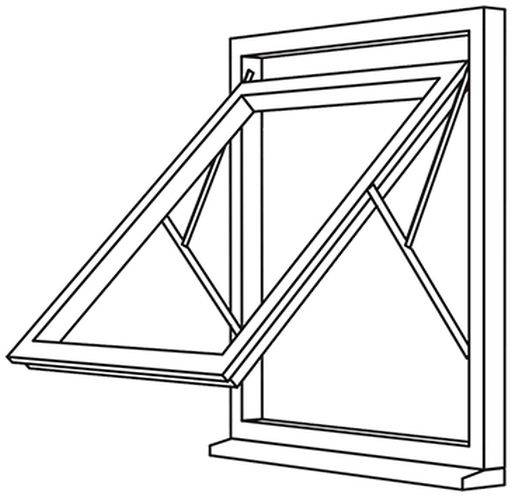

Single opening, fully reversible window with a chamfered design frame.
Application
Designed for high rise buildings, social housing, hospitals, care homes and any other commercial project where cleaning the outside safely from the inside is the only option.
Description
PVC-U fully reversible window designed for high rise buildings, social housing, hospitals, care homes and any other commercial project where cleaning the outside safely from the inside is the only option.
Features and benefits:
- 1400 x 1400 mm maximum aperture suitable for contemporary projects.
- Frame fixing position away from hinge for smooth, trouble-free operation.
- Traditional 2500 chamfered sash design.
- Internal and external flush finish.
- Dedicated locking block, asymmetric design for seal compression adjustment.
- Fully reinforced system designed to withstand long term rigorous use.
- Dedicated glazing packer for frame/ transom removes the need for separate drainage infill profile.
- Neat and simple cli-fit drip rail.
- Distinctive 'arrow foot' wool pile, quick and easy fitting.
- BlueForce™ Linktrusion® thermal reinforcement for A rated WER performance.
- EPD-QKE-20150313-IBG1-EN.
Performance:
- Air permeability (Class A4): 600 Pa.
- Water tightness: (Class 9A): E 1050 Pa.
- Wind resistance (Class A5): AE 2400 Pa.
- U-value (Uw): 1.4–0.96 W/m²K. (0.96 achieved with 4/14/4/14/4 argon cavity glazing).
- Sound reduction: Rw (C ; Ctr) 41 (-1 ; -4) dB.
General information
Shape | Rectangular |
Color | White Brown Grey Other |
Finish | PVC-U |
Material | PVC-U |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Specification data - Unplasticized polyvinyl chloride (PVC-U) window units
Third-party certification | BSI Kitemark. |
Dimensions and configurations | Fully reversible window.Manufacturer guidanceInsert requirements; 1400 x 1400 mm maximum aperture/ 80 kg weight limit. |
Product performance | |
Weather performance | |
UK exposure category | Class AE (2400 Pa). |
Air permeability | Class 4 (600 Pa).Guidance for specification option: Size tested: 1400 x 1400 mm. |
Watertightness | Class E1050 (9A).Guidance for specification option: Rating: 1050 Pa. Size tested: 1400 x 1400 mm. |
Resistance to wind load | Class AE 2400.Guidance for specification option: Rating: 2400 Pa. Size tested: 1400 x 1400 mm. |
Safety | |
Security level | To PAS 24. |
Environmental | |
Acoustic performance rating | 32—43 dB. |
Thermal | |
Whole window U-value | 1.4—0.96 W/m²K.Guidance for specification option: 0.96 achieved with 4/14/4/14/4 argon cavity glazing. |
British Fenestration Rating Council Window Energy Rating | A.Guidance for specification option: BFRC A rated (Reg. no. 5086 SC003). |
Frame | |
Profile | To BS EN 12608.Guidance for specification option: Hollow PVC-U profile manufactured in accordance with BS EN 12608. |
Reinforcement | Linktrusion® thermal reinforcement.Guidance for specification option: For A rated WER performance. |
Colour and texture | White PVC.Guidance for specification option: Stock. Golden Oak.Guidance for specification option: Stock. Wood-like finish. Rosewood.Guidance for specification option: Stock. Wood-like finish. Anthracite Grey.Guidance for specification option: Stock. On grey base. Smooth matt.Guidance for specification option: Stock. On grey base. Agate Grey.Guidance for specification option: Consult manufacturer for lead times. Steel Blue.Guidance for specification option: Consult manufacturer for lead times. Soft Cherry.Guidance for specification option: Consult manufacturer for lead times. Anthracite Smooth.Guidance for specification option: Consult manufacturer for lead times. Black Ash.Guidance for specification option: Consult manufacturer for lead times. Slate Grey.Guidance for specification option: Consult manufacturer for lead times. Cedar Grey.Guidance for specification option: Consult manufacturer for lead times. Chartwell Green.Guidance for specification option: Consult manufacturer for lead times. Classic Cream.Guidance for specification option: Consult manufacturer for lead times. Dark Red.Guidance for specification option: Consult manufacturer for lead times. English Oak.Guidance for specification option: Consult manufacturer for lead times. Fire Green.Guidance for specification option: Consult manufacturer for lead times. Ice Cream.Guidance for specification option: Consult manufacturer for lead times. Grey.Guidance for specification option: Consult manufacturer for lead times. Heritage White.Guidance for specification option: Consult manufacturer for lead times. Irish Oak.Guidance for specification option: Consult manufacturer for lead times. Moss Green.Guidance for specification option: Consult manufacturer for lead times. Nut Tree.Guidance for specification option: Consult manufacturer for lead times. Quartz Grey.Guidance for specification option: Consult manufacturer for lead times. Vin Rouge.Guidance for specification option: Consult manufacturer for lead times. Rustic Cherry.Guidance for specification option: Consult manufacturer for lead times. Pyrite Metallic.Guidance for specification option: Consult manufacturer for lead times. Bronze Metallic.Guidance for specification option: Consult manufacturer for lead times. Silver Bullet.Guidance for specification option: Consult manufacturer for lead times. Other.Guidance for specification option: Other RAL codes are available; consult manufacturer for lead times and insert requirements. Manufacturer guidanceExtremely durable with a ten-year manufacturer’s guarantee. Decoroc® extremely durable oven baked paint finish. All available on white. |
Glazing or infill | |
Requirements | Double glazed.Guidance for specification option: 28 mm. Triple glazed.Guidance for specification option: 40 mm. |
Operation | |
Type | Manual. |
Size | As drawing. Guidance for specification option: Insert requirements; 1400 x 1400 mm maximum aperture/ 80 kg weight limit. |
Sound reduction | Rw (C ; Ctr) 41 (-1 ; -4) dB. |
Type | Bevelled bead. Decorative bead. |
ThermalTransmittance | 0.96. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 2 |
 IFC | IFC2X3 | 1 |
Literature
05. Fully Reversible Window FRW Datasheet
