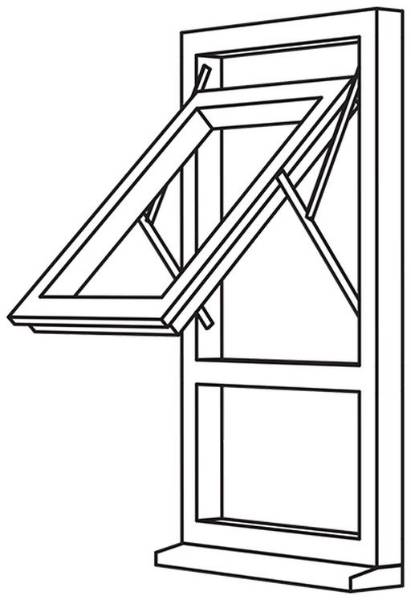

Fully reversible opener over a fixed light window with a chamfered design frame.
Designed with high-rise commercial buildings in mind to make cleaning simple.
PVC-U fully reversible window designed for high rise buildings, social housing, hospitals, care homes and any other commercial project where cleaning the outside safely from the inside is the only option.
Features and benefits:
Shape | Rectangle |
Color | White Grey Black Bronze Green |
Material | PVC-U |
Warranty description | Ten year Guidance for specification option: Extremely durable with a ten year manufacturer’s guarantee. |
Size | 1000 x 1000 mm |
Uniclass | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Standard | To BS 7412. |
Third-party certification | BSI Kitemark. |
Dimensions and configurations | Fully reversible window and fixed bottom light. |
Product performance | |
Weather performance | |
UK exposure category | To BS 6375-1, Class AE (2400 Pa). |
Air permeability | To BS 6375-1, Class 4 (600 Pa). |
Watertightness | To BS 6375-1, Class 9A (600 Pa). |
Resistance to wind load | To BS 6375-1, Class A5 (AE 2400 Pa). |
Safety | |
Security level | To PAS 24. |
Environmental | |
Acoustic performance rating | Rw (C ; Ctr) 41 (-1 ; -4) dB.Manufacturer guidanceSound reduction. |
Thermal | |
Whole window U-value | 1.4—0.96 W/m²K.Guidance for specification option: 0.96 achieved with 4/14/4/14/4 argon cavity glazing. |
Frame | |
Profile | To BS EN 12608.Guidance for specification option: Hollow PVC-U profile manufactured in accordance with BS EN 1208. |
Reinforcement | Linktrusion.Guidance for specification option: BlueForce™ Linktrusion® thermal reinforcement for A rated WER performance. |
Colour and texture | White - RAL 9016.Guidance for specification option: As standard. Laminated foil.Decoroc colour (RAL). |
Glazing or infill | |
Requirements | 28 mm double glazing.40 mm triple glazing. |
Operation | |
Type | Manual. |
Bead | Bevelled. Decorative. |
Colour/ Finish | Agate grey. Anthracite grey. Anthracite smooth. Black ash. Bronze metallic. |
ThermalTransmittance | 0.96. |
