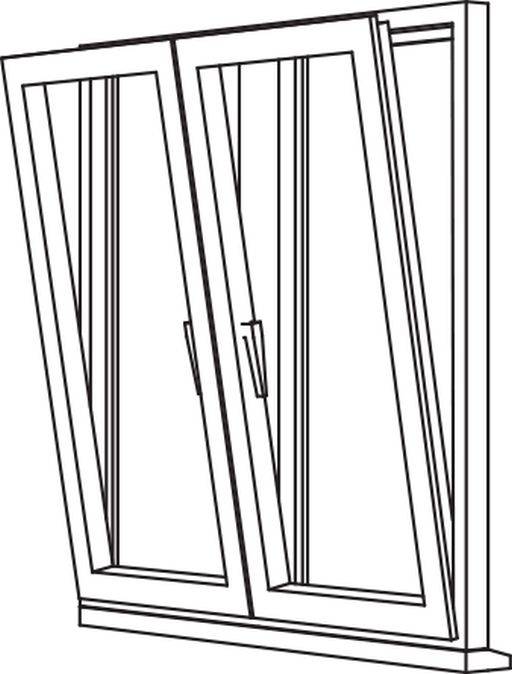

Zendow 5000 Tilt & Turn (Standard Sash) - TT3 Opener/Opener

Verified by manufacturer over a year ago

Deceuninck Ltd

Double opener window with a simple contemporary design frame.

Jump to:
BOS
 +44 (0)1249 816969 Website

Application

Commercial and residential windows.

Description

PVC-U tilt & turn windows, available in a range of styles in three standard finishes.


Years of research and development have resulted in a technically advanced system ideal for commercial projects. With two sash sizes (72 mm & 80 mm), three frame sizes (54 mm, 64 mm & 70 mm), and a slim (80 mm) transom/mullion option.


Features and benefits:

  • Zendow 5000 is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
  • Available in a range of colours and finishes.

General information

Color

White

Guidance for specification option:

RAL 9016 (standard).

Other

Guidance for specification option:

Laminated foil, Decoroc colour (RAL).

Material

PVC-U

Shape

Rectangle

Uniclass

Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary

CAWS

L10/30 PVC-U windows

L10/350 PVC-U windows

Product range

Tilt & Turn Window / Contemporary (PVC-U)

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units

Dimensions and configurations

Tilt and turn double opening light.

Product performance

-

Weather performance

-

UK exposure category

To BS 6375-1, 2000 Pa.

Air permeability

To BS EN 1026, 600 Pa.

Guidance for specification option:

Positive and negative pressure.

Watertightness

To BS 6375-1, Class 8A.

Resistance to wind load

To BS 6375-1, Class A5.

Safety

-

Security level

To PAS 24.

Environmental

-

Acoustic performance rating

Rw (C ; Ctr) 46 (-2 ; -5) dB.

Thermal

-

Whole window U-value

Guidance for specification option:

  • Whole window ‘U’ values comply with Approved Document L (Eng/Wales) Section 6 (Scotland) of the Building Regulations.
  • Lower ‘U’ values can be achieved.
  • Window energy ratings from C to A++ can be achieved.

British Fenestration Rating Council Window Energy Rating

A++ to C.

Guidance for specification option:

Consult manufacturer for details.

Frame

-

Profile

To BS EN 12608-1.

Reinforcement

Galvanized steel.

Guidance for specification option:

Galvanized steel profiles optimised for strength and secure hardware attachment.

Linktrusion™.

Guidance for specification option:

Combination of glass fibre reinforced PVC profiles and an extruded reinforcement profile with embedded steel wires in a low density insulating foam core.


Windows manufactured using Linktrusion™ are as strong as steel reinforced windows, but 30% more thermally efficient, with up to 40% savings on materials and weight.

Colour and texture

White RAL 9016/ White RAL 9016.

Agate Grey/ Heritage White.

Anthracite Grey/ Anthracite Grey.

Anthracite Grey/ White.

Anthracite Smooth/ Heritage White.

Black Ash/ Black Ash.

Black Ash/ Heritage White.

Black Ash/ White.

Chartwell Green/ Chartwell Green.

Chartwell Green/ White.

Classic Cream/ Classic Cream.

Classic Cream/ White.

English Oak/ English Oak.

English Oak/ Heritage White.

Golden Oak/ Golden Oak.

Golden Oak/ White.

Heritage White/ English Oak.

Heritage White/ Heritage White.

Ice Cream/ Heritage White.

Irish Oak/ Irish Oak.

Irish Oak/ White.

Nut Tree/ Nut Tree.

Nut Tree/ White.

Rosewood/ Rosewood.

Rosewood/ White.

White Grain/ White Grain.

White Grain/ White.

Other.

Guidance for specification option:

Other RAL codes can be specified; check with manufacturer for lead times and insert requirements.

Manufacturer guidance

Exterior/ interior.

  • Authentic ‘wood like’ finish (other than White RAL 9016/ White RAL 9016)
  • Extremely durable.
  • Ten year manufacturer’s guarantee.
  • Each colour has its own matching ancillaries, trims and accessories.
  • Available from stock (except 'Other').

Ventilator

Not required.

Proprietary ventilation device.

Guidance for specification option:

Proprietary ventilation devices can be fitted to the windows in compliance with Building Regulations.; insert requirement.

Glazing or infill

-

Requirements

Single glazed.

Double glazed.

Triple glazed.

Hardware

Guidance for specification option:

  • Consult manufacturer for options and insert requirements.
  • System accepts all popular hardware, including concealed hinge types.
  • Full depth euro-groove
  • Secure location of hardware.


Operation

-

Type

Manual.

Fixing features

Guidance for specification option:

Consult manufacturer for options on couplers etc. and insert requirements.


Fixing can be achieved through the frame with bespoke fixing lugs or into proprietary cavity closers or sub-frame systems.

Fixing methods exist for timber framing, flush or check reveals.

Size (w x h)

1000 x 1000 mm.

Outer frame size

54 mm.

Guidance for specification option:

Small.

64 mm.

Guidance for specification option:

Intermediate.

70 mm.

Guidance for specification option:

Large.

Sash

72 mm Neo Standard slim.

72 mm Neo Premium slim.

80 mm Neo Standard.

108 mm Neo heavy duty.

Transom/ mullion size

70 mm.

80 mm.

Joints

Cruciform joints.

Mechanically jointed.

'T' joints.

Welded.

Couplings

Not required.

3310 Slimline coupler.

3312 Slimline coupler.

3197 Slimline coupler.

3705 Reinforced coupler.

Show more

Extensions

Not required.

2455 Head section.

Guidance for specification option:

Accommodates proprietary trickle ventilators.

3300 Add-on.

Guidance for specification option:

Allows additional clearance for hinges.

3301 Add-on.

Guidance for specification option:

Accommodates proprietary trickle ventilators.

3302 Add-on.

Guidance for specification option:

Frame build-up for conservatories.

Show more

Architraves

Not required.

1044 D-mould.

Guidance for specification option:

30 mm wide.

1087 Architrave.

Guidance for specification option:

40 mm wide.

1178 Quadrant.

3341 Add-on.

Guidance for specification option:

Architrave adaptor.

Show more

Bay window corner posts

Not required.

3313/3327 Slimline bay pole and adaptor.

Guidance for specification option:

Angles from 138°-222°.

6916/ 3311 Bay pole and adaptor.

Guidance for specification option:

Angles from 90°-270°.

6920 90° Square corner post.

3196 Bay post.

Guidance for specification option:

Fixed 135° angle.

Show more

Weather bars

Not required.

3303 Head drip3306.

Weather bar.

Projecting sill

Not required.

3338 Projecting sill.

Guidance for specification option:

150 mm.

3339 Projecting sill.

Guidance for specification option:

180 mm.

3258 End cap.

Guidance for specification option:

For 3338 Projecting sill.

3259 End cap.

Guidance for specification option:

For 3339 Projecting sill.

Stub-sill

Not required.

3337 Stub-sill.

Guidance for specification option:

95 mm.

3257 End cap.

Guidance for specification option:

For 3337 Stub-sill.

Glazing beads

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Type

Standard.

Contemporary.

Decorative.

Manufacturer guidance

Beading type.

Ironmongery

As section P21.

Concealed hinges.

Full perimeter locking.

Seals

High performance weatherseal.

Sill

95 mm.

150 mm.

180 mm.

Thickness

5—42 mm.

Manufacturer guidance

Glazing thickness.

ThermalTransmittance

1.2.

Sustainability data

Material

PVC-U

Recyclability

100%
