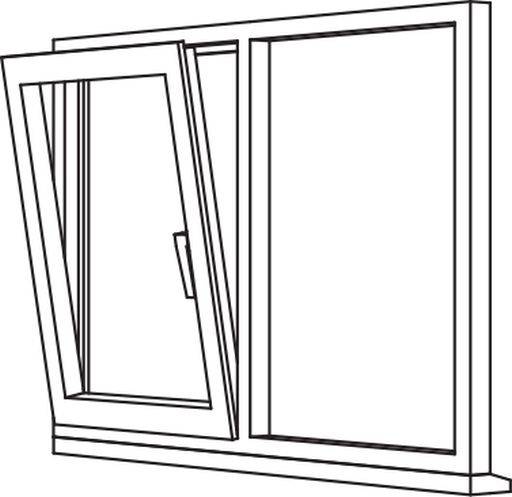

Zendow 5000 Tilt & Turn (Standard Sash) - TT2 Opener/Fixed

Linktrusion (combining new material and processes):

- Window sash:

• Premium: continuous glass fibre strip embedded into the outer walls, replacing traditional steel reinforcement to significantly increase thermal performance.

• Standard: instead of traditional steel reinforcement, thermal reinforcement consisting of a recycled PVC skin, steel wires and a low density foam core.

Seals and gaskets:

Main profiles supplied with high-performance integral multifunctional seal and gasket.

Reinforcing:

Galvanized steel profiles optimised for strength and secure hardware attachment.

Fabrication:

Fully welded construction.

Hardware:

• System accepts all popular hardware, including concealed hinge types.

• Full depth euro-groove

• Secure location of hardware.

Thermal insulation:

• Whole window ‘U’ values comply with Approved Document L (Eng/Wales) Section 6 (Scotland) of the Building Regulations.

• Lower ‘U’ values can be achieved.

• Window energy ratings from C to A++ can be achieved.

Acoustic performance:

Rw (C ; Ctr) 46 (-1 ; -3) dB.

Framing:

• Linktrusion (combining new material and processes): instead of traditional steel reinforcement, thermal reinforcement consisting of a recycled PVC skin, steel wires and a low density foam core to significantly increase thermal performance. Regular steel reinforcement also available.

• Choice of three outer frame sizes (54, 64 and 70 mm).

• One transom and mullion size (80 mm).

• Slim, standard and heavy duty sash options.

Window styles:

• Tilt before turn, turn before tilt and fixed light frames.

• Multilights combining above elements.

• ‘T’ or cruciform transom or mullion joints.

• Coupled flat and bay or bow window styles.

Glazing:

• Choice of three glazing bead styles.

• Frames accept units from 5 mm up to 42 mm thick.

• Standard sash accepts units from 5 mm up to 42 mm thick.

• Premium sash accepts units from 17 mm up to 54 mm thick.

• Georgian bar and leaded light options.

Ancillaries:

• Frame extensions, sills and weathering trims.

• Lightweight and structural coupling members.

• Standard and structural bay corner posts.

• Architraves and finishing trims.

Ventilation:

Proprietary ventilation devices can be fitted to the windows in compliance with Building Regulations.

Fixing:

• Fixing can be achieved through the frame with bespoke fixing lugs or into proprietary cavity closers or sub-frame systems.

• Fixing methods exist for timber framing, flush or check reveals.

Security:

• Internally glazed as standard.

• Full perimeter locking options.

PVC-U
