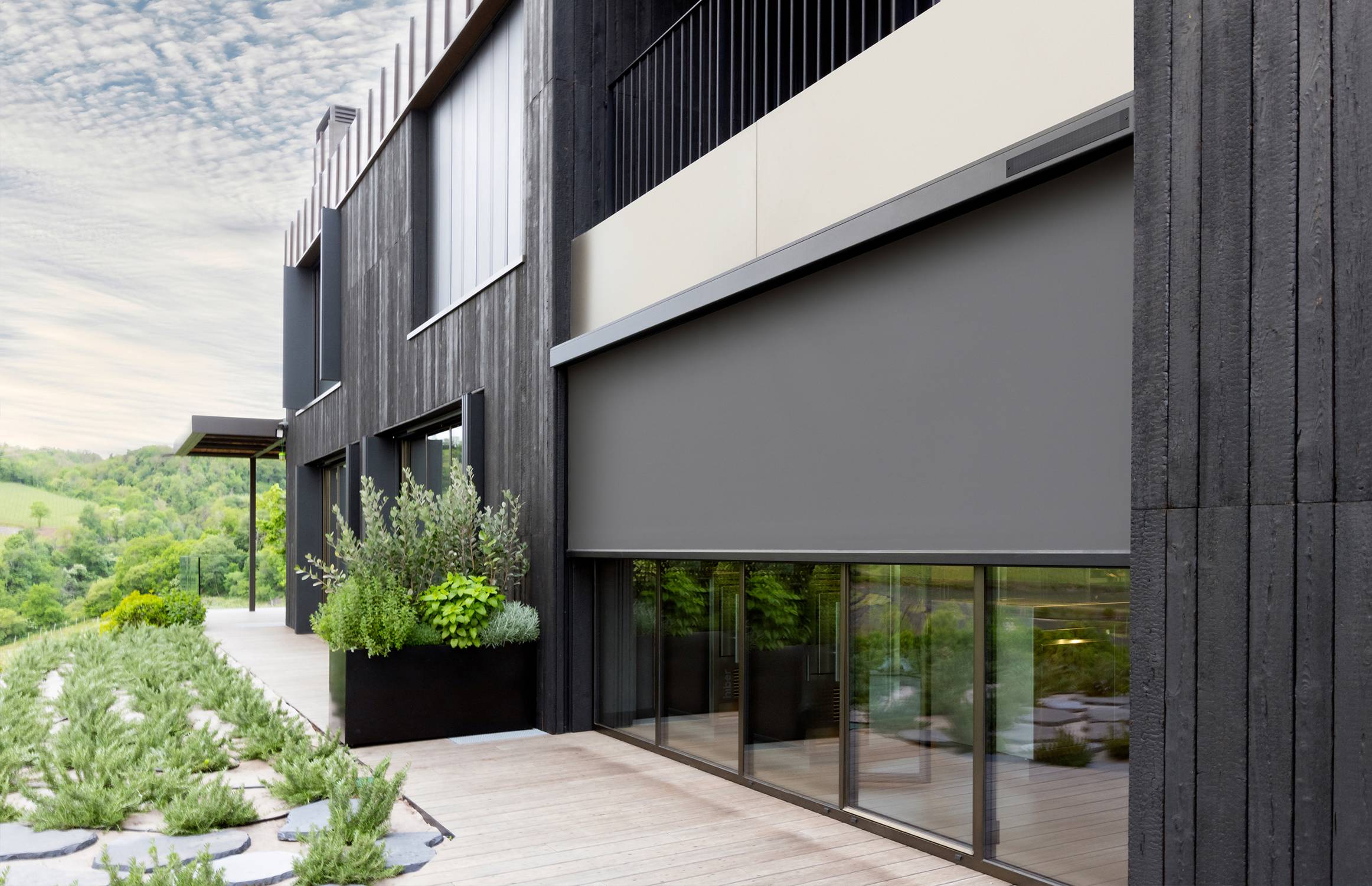

Z-Box Solar Roller Blinds - External Roller Blind

Verified by manufacturer 2 months ago

Polyscreen® 351 fabric blind

Bandalux Industrial SA Variant:
Third party certifications:
  • ASTM

    ASTM

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • EnMS ISO 50001

    EnMS ISO 50001

    Certificate type

  • GreenGuard Gold

    GreenGuard Gold

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • EPD

    EPD

    Certificate type

Motorized outdoor roller blinds that do not require electrical installation.

Jump to:
+(34) 938 615 179 Website

Application

Suitable for external roller blind applications.

Description

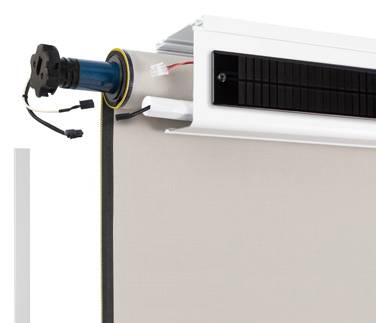

Z-Box Solar roller blinds by Bandalux includes a kit consisting of a solar panel a rechargeable battery and a motor that runs on renewable solar energy making it a 100% autonomous shade with no need for electrical installation.


The shade is highly resistant to wind and other inclement weather conditions thanks to the zip system with Zip Deep and Max terminal guides and its manufacture with materials designed to last outdoors (aluminium box guides and covers stainless steel screws and highly durable plastic plugs).


Z-Box Solar has been certified with the highest wind resistance score in a test carried out by an external and independent laboratory where it has exceeded wind speeds of up to three times (265 km/h) Class 6 of the EN 13561 standard in a 2000 x 2000 mm shade.


Features and benefits:

  • Offers the greatest opacity when combined with fabrics from the Bandalux blackout range.
  • Resistant to wind and other adverse weather conditions.
  • Comes equipped with a solar panel, a battery and a motor that runs entirely on renewable solar energy, no electrical installation required.
  • The available motors are rechargeable and operate wirelessly with radio frequency technology.
  • Cables are managed and organized inside the cassette box.
  • Self-supporting system can be installed frontally or laterally and rests upon the weight supporting guide.
  • The Bandalux patented stainless steel spring system guarantees fabric tautness and wind resistance.
  • The Max bottom bar further improves fabric drape, tautness and tension for optimized performance, even with narrow shades.
  • Multiple fabrics available.

General information

Color

White

Black

Grey

Guidance for specification option:

Grey, anthracite and metallic grey.

Finish

Other

Material

Fabric

Aluminium

Stainless steel

Plastic

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Guidance for specification option:

Maximum width of 5600 mm.

Height

Bespoke

Guidance for specification option:

Maximum width of 3000 mm.

Warranty description

Three year

Uniclass

Pr_30_59_07_26 External roller blindsPrimary
Pr_30_59_07_72 Roller blinds

CAWS

N10/70 Blinds

N10/240 Blinds

Specification data - External roller blinds

Standards

To BS EN 13561.

Position

External, frontal.

External, lateral.

Dimensions (minimum width x depth)

-

Manufacturer guidance

5600 x 3000 mm (W x H maximum). Consult manufacturer and insert requirements.

Headrail

-

Material

Aluminium.

Colour

White, RAL 3016.

Guidance for specification option:

As standard.

Black, RAL 9011.

Grey, RAL 9006.

Anthracite, RAL 7016.

Metallic grey.

Blinds

-

Material

Polyscreen® 351 fabric.

Blackout function

Required.

Guidance for specification option:

  • Blackout fabric collection.
  • Consult manufacturer and insert requirements.

Not required.

Colour

White.

Anthracite.

Metallic grey.

Grey.

Black.

Tube

-

Material

Extruded aluminium.

Tube covers

-

Material

Extruded aluminium.

Operation

Solar motor, Radio 40 6/16, Bandalux.

Guidance for specification option:

  • Voltage: 12 V.
  • Diameter: 40 mm.
  • Revolutions per minute (R.P.M): 16.
  • Power: 36 W.
  • Amparage: 3 A.
  • Minimum shade width: 700 mm.

Solar motor, Radio 40 10/12, Bandalux.

Guidance for specification option:

  • Voltage: 12 V.
  • Diameter: 40 mm.
  • Revolutions per minute (R.P.M): 12.
  • Power: 36 W.
  • Amparage: 3 A.
  • Minimum shade width: 700 mm.

Solar motor, Radio 50 20/16, Bandalux.

Guidance for specification option:

Required for shades with measurements exceeding 3200 mm wide.


  • Voltage: 12 V.
  • Diameter: 50 mm.
  • Revolutions per minute (R.P.M): 16.
  • Power: 72 W.
  • Amparage: 6 A.
  • Minimum shade width: 700 mm.

Solar motor, Sunea 40 RTS 6/18, Somfy® RTS.

Guidance for specification option:

  • Voltage: 12 V.
  • Diameter: 40 mm.
  • Revolutions per minute (R.P.M): 18.
  • Power: 24 W.
  • Amparage: 2 A.
  • Minimum shade width: 700 mm.

Solar motor, Sunea 40 RTS 10/12, Somfy® RTS.

Guidance for specification option:

  • Voltage: 12 V.
  • Diameter: 40 mm.
  • Revolutions per minute (R.P.M): 12.
  • Power: 32 W.
  • Amparage: 2.67 A.
  • Minimum shade width: 700 mm.

Solar motor, IO 50 20/12, Somfy.

Guidance for specification option:

Required for shades with measurements exceeding 3200 mm wide.


  • Voltage: 12 V.
  • Diameter: 50 mm.
  • Revolutions per minute (R.P.M): 12.
  • Power: 74 W.
  • Amparage: 4.4 A.
  • Minimum shade width: 700 mm.

Wind resistance

To BS EN 13561, class 6.

Guidance for specification option:

For a 2000 x 2000 mm blind.

Accessories

Not required.

Ceiling installation reinforced bracket.

Guidance for specification option:

Brackets are visible and include fastening bolt.

Wall installation reinforced bracket.

Guidance for specification option:

Brackets are visible and include fastening bolt./ Incompatible with frontally installed channels.

Adjustment wedge kit.

Guidance for specification option:

Reinforcement pieces placed between the guide and the wall to compensate irregularities and inclination. Bandalux will provide three units by default.

Channel spacer bracket.

Cassette size

130 mm.

Side channels

Self-supporting Zip-Deep guide.

Bottom bar

Max visible bottom bar.

ExternalSurfaceArea

16.8 m².

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Fabric

Aluminium

Stainless steel

Plastic

Recyclability

Yes, aluminium, stainless steel and fabrics.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %
