B-BOX Solar Roller Blinds - Contemporary Solar Roller Shade

Verified by manufacturer 4 months ago

Bandalux Industrial SA Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • EnMS ISO 50001

    EnMS ISO 50001

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • GreenGuard Gold

    GreenGuard Gold

    Certificate type

  • EPD

    EPD

    Certificate type

  • ASTM

    ASTM

    Certificate type

Contemporary solar roller blinds for outdoor use.

Jump to:
+(34) 938 615 179 Website

Application

  • Roller blinds suitable for outdoor installation.
  • Shady façades avoided, as they hinder the battery from being properly recharged. The solar cells must be kept free of any elements in front of them at all times.

Description

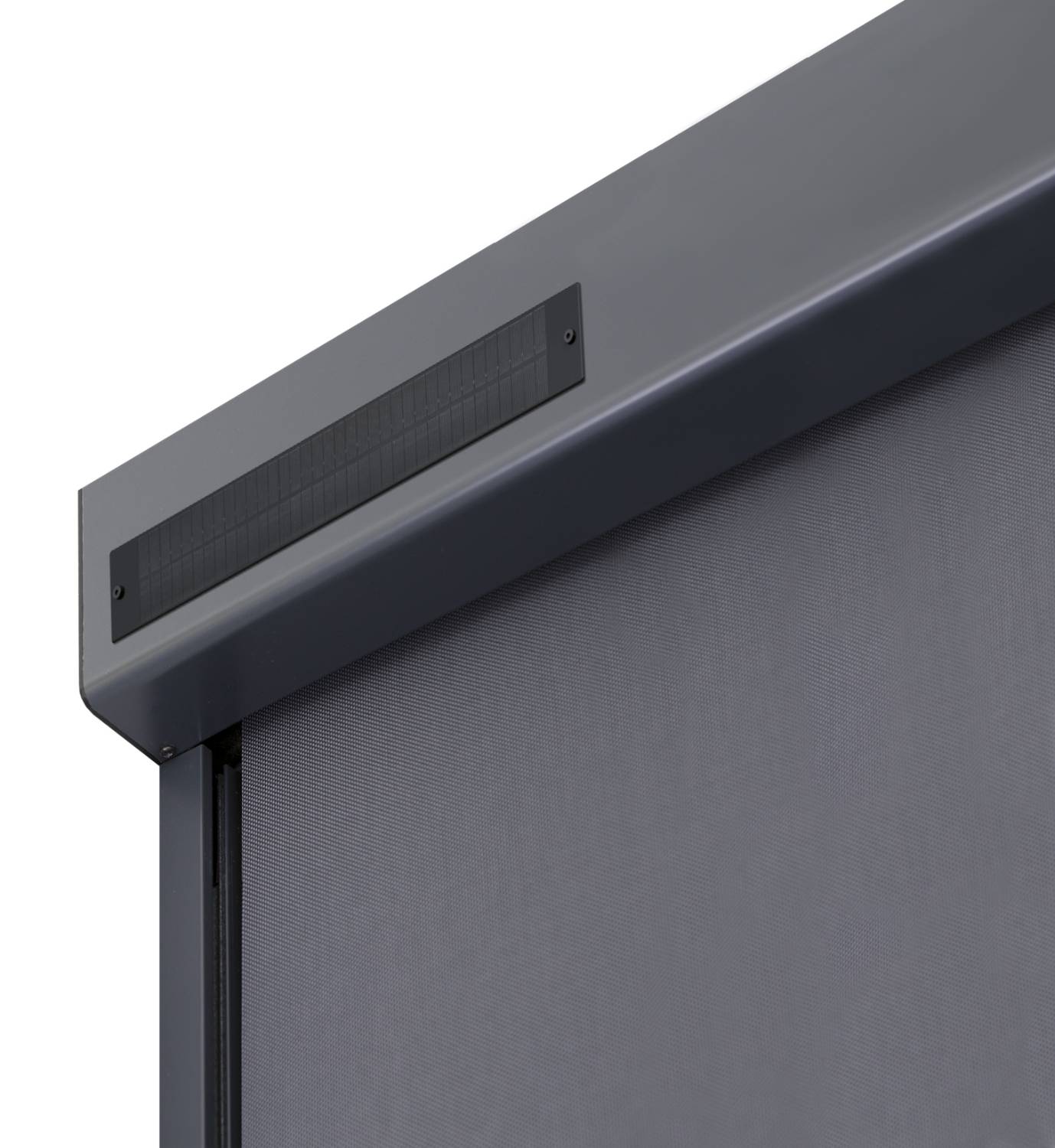

The Solar B-BOX outdoor roller blinds is a blind that runs completely on renewable energy. As a result of ongoing technological innovation and its commitment to sustainability, Bandalux has launched the Solar B-Box. It is an outdoor blind that has a built-in solar panel, a battery, and a motor that runs completely on renewable energy from the sun.


The solar-powered B-BOX does not need electrical wiring. The solar panel captures the sunlight and turns it into electric power to load the motor’s battery, which makes the blind 100% autonomous.


Features and benefits:

  • Elegance in harmony with contemporary architecture.
  • Made with highly resistant materials and components that guarantee their durability.
  • Channels adapted to each individual need.
  • A wide variety of cable guides and aluminium channels, designed for any type of installation, to reduce gaps to the bare minimum.
  • Wide range of fabrics, including technical and decorative.
  • Accessible box - the rechargeable battery is located inside the box for easy access during replacement and maintenance.
  • Does not require electrical wiring.
  • Equipped with a cable retracting support.
  • Motor operation - works with Somfy RTS technology, controlled by a remote control.
  • Smooth and silent motorization.
  • Compatible with Bandalux LYNX.
  • Energy saving - reduces dependence on energy, which translates into savings on electricity bills.
  • Three year warranty.
  • CE marked.

General information

Color

Finish

Anodized

Lacquered

Powder-coated

Material

Fabric

Aluminium

Stainless steel

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Three year

Uniclass

Pr_30_59_07_26 External roller blindsPrimary

CAWS

N10/70 Blinds

N10/240 Blinds

Specification data - External roller blinds

Standards

To BS EN 13561.

Position

External.

Dimensions (minimum width x depth)

Guidance for specification option:

Insert requirements.

  • Maximum width: 5400 mm.
  • Maximum height: 4000 mm.
  • Consult manufacturer for details.

Headrail

-

Material

Aluminium

Blinds

-

Material

Fabric.

Guidance for specification option:

Consult manufacturer's literature and insert requirements.

Blackout function

Required.

Guidance for specification option:

Consult manufacturer and insert requirements.

Not required.

Finish

-

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Colour

-

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Pattern

-

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Tube

-

Material

Extruded aluminium.

Tube covers

-

Material

Extruded aluminium.

Colour

White, RAL 9016.

Gray, RAL 9006.

Brown, RAL 8019.

Black, RAL 9011.

Anthracite, RAL 7016.

Ivory, RAL 1013.

Operation

Solar panel motor, SUNEA 40 6/18.

Solar panel motor, SUNEA 40 10/12.

Manufacturer guidance

To guarantee proper functioning, Bandalux will provide the right motor model for the shade size.

Consult manufacturer for details.

Mechanism endurance

To BS EN 13561, class 3.

Accessories

Not required.

Wind profiles.

Guidance for specification option:

  • Includes two profiles for shade height under 2 m, and 4 profiles for shade heights of 2 m and higher.
  • Half of the profiles will be installed on each side of the shade.
  • Maximum width 2500 mm
  • Consult manufacturer's literature for details.

Personalisation.

Guidance for specification option:

  • Digital printing personalisation.
  • Consult manufacturer's literature for details.

Components

White, RAL 9016.

Anodized Aluminium.

Black, RAL 9011.

Brown, RAL 8019.

Grey, RAL 9006.

Show more

Manufacturer guidance

Components colour.

Consult manufacturer's literature for details.

Cassette size

B-Box 136, self-supporting, 136 x 136 mm.

B-Box 136, reinforced wall bracket, 147 x 147 mm.

B-Box 136, reinforced wall bracket, 136 x 147 mm.

Side guides

Cable guide, Ø5 mm INOX.

Guidance for specification option:

  • Wall fastening: 58 mm.
  • Floor fastening: 60 mm.

"U" Channel, U-302 Compact Long.

"U" Channel, U-402 Long.

Guidance for specification option:

Only with channel spacer support.

Manufacturer guidance

Consult manufacturer's literature for details on side channel options.

Brackets

Reinforced ceiling installation.

Guidance for specification option:

Includes fastening bolt.

Reinforced wall installation.

Guidance for specification option:

Incompatible with frontally installed aluminium channels.

Channel spacer bracket.

Guidance for specification option:

Only with U-402 long U channel.

Bottom rail design

Hidden bottom bar, Ø20 mm.

Guidance for specification option:

Standard configuration.

Hidden, Ø30 mm.

Guidance for specification option:

Optional.

Slim 35.

Guidance for specification option:

Optional.

Remote control

Single-channel remote - SITUO 1 RTS PURE.

Multi-channel remote - SITUO 5 RTS PURE.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Fabric

Aluminium

Stainless steel

Recyclability

Yes, Aluminum, Stainless Steel and Fabrics

Guidance for specification option:

Aluminum and Stainless Steel is 100% recyclable, an un-limited number of times, without losing or diminishing its chemical or mechanical characteristics. For this reason, the life cycle of an aluminum or stainless steel product tend to be circular, this concept being called “cradle-to-cradle”, currently used to reach an efficient economy in the use of resources, that takes advantage of all materials at the end of their useful life as raw materials.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Guidance for specification option:

Bandalux’s extruded aluminum profiles and tubes have 95% recycled content.

Bandalux’s laminated aluminum has between 45% and 65% recycled content.

90% or our contract fabrics collection has 2% up to 100% recycled content.
