Z-BOX Secret Roller Blinds - Roller Blind

Verified by manufacturer 4 months ago

Bandalux Industrial SA Third party certifications:
  • GreenGuard Gold

    GreenGuard Gold

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • EnMS ISO 50001

    EnMS ISO 50001

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • ASTM

    ASTM

    Certificate type

  • EPD

    EPD

    Certificate type

Box fabric roller blinds with guide - concealed system.

Jump to:
+(34) 938 615 179 Website

Application

Roller blinds suitable for indoor and outdoor installation.

Description

The new Z-Box Secret roller blinds feature an innovative design that makes seamless outdoor installation possible.‎ The cassette provides bottom access which enables maintenance and cleaning operations possible in a system that is fully integrated into the facade.


Features and benefits:

  • Concealed system - fully integrated into the facade.
  • The design and aesthetics of the new Z-Box Secret are also created for non-integrated installation.
  • Closed, airtight cassette includes a new wall feed-through that prevents water from entering the motor headrail through the cable, without the need to install additional sealing materials.
  • Bandalux patented stainless steel side guides.
  • Smooth and silent motorization.
  • Maximum wind resistance and total opacity.
  • Energy saving - When installed outdoors and combined with the Polyscreen® fabric, the system can save up to 55% in air conditioning, while guaranteeing optimal visual and thermal comfort.
  • Optional insect screen fabric.
  • Motor operation.
  • Three year warranty.
  • Child safe system.
  • CE marked.
  • Certified with the highest wind resistance score (to EN 13561, Class 6).

General information

Color

White

Black

Grey

Other

Finish

Powder-coated

Material

Fabric

Stainless steel

Aluminium

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Three year

Uniclass

Pr_30_59_07_26 External roller blindsPrimary
Pr_30_59_07_72 Roller blinds

CAWS

N10/70 Blinds

N10/240 Blinds

Specification data - External roller blinds

Standards

To BS EN 13561.

Position

External, fully integrated into the facade.

Internal.

Dimensions (minimum width x depth)

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Blinds

-

Material

Fabric.

Guidance for specification option:

Standard - Consult manufacturer's literature and insert requirements.

Insect screen fabric.

Guidance for specification option:

Optional.

Blackout function

Required.

Guidance for specification option:

  • Blackout fabric collection.
  • Consult manufacturer and insert requirements.

Not required.

Finish

-

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Colour

-

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Operation

Motor, Bandalux Radio.

Motor, Somfy® hardwired.

Motor, Somfy® RTS.

Motor, Somfy® RTS Silent.

Guidance for specification option:

Motor only compatible for indoor installation.

Motor, Somfy® IO.

Manufacturer guidance

Consult manufacturer's literature for model details and insert requirements.

Wind resistance

To BS EN 13561, class 6.

Cassette size

160 x 122 mm.

Side channels

ZIP Secret channel, stainless steel.

Bottom bar

MAX bottom bar.

Profile colour

White, RAL 3016.

Black, RAL 9011.

Anthracite, RAL 7016.

Ingress protection (IP) rating

IP65.

Guidance for specification option:

According to the IEC 60529 Degrees of Protection international standard.

Manufacturer guidance

Wall feed-through IP rating.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Fabric

Stainless steel

Aluminium

Recyclability

Yes, Aluminum, Stainless Steel and Fabrics

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

ARCHICAD
-

1

Third party certifications

GreenGuard Gold

GreenGuard Gold

Polyscreen 403 - Greenguard

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015

EnMS ISO 50001

EnMS ISO 50001

ISO 50001:2018

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001:2015

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001:2018

QA Certificate

Company, Systems, Fabrics and Motors Certificates and Warranties

ASTM

ASTM

Anti-bacterial certificate

GreenGuard Gold

GreenGuard Gold

Polyscreen 351 - Greenguard

GreenGuard Gold

GreenGuard Gold

Polyscreen 550 - Greenguard

EPD

EPD

Polyscreen - EPD

Literature

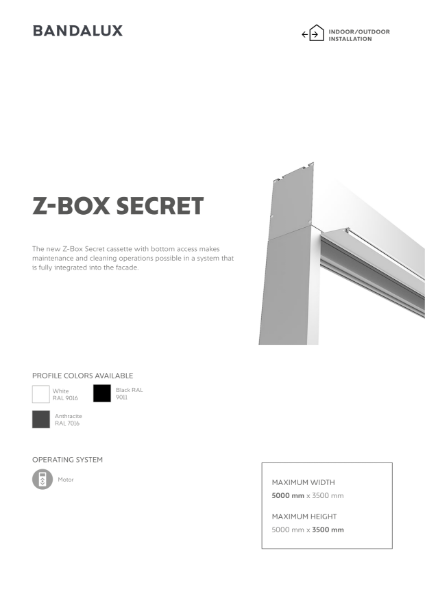

Z-BOX Secret

Z-BOX Secret

Polyscreen 351 Fabric - Data Sheet

Polyscreen 351 Fabric - Data Sheet

Polyscreen 403 Fabric - Data Sheet

Polyscreen 403 Fabric - Data Sheet

Polyscreen 550 Fabirc - Data Sheet

Polyscreen 550 Fabirc - Data Sheet

Mega Blackout Fabric - Data Sheet

Mega Blackout Fabric - Data Sheet

Airpure Treatment for Roller Blinds

Airpure Treatment for Roller Blinds
